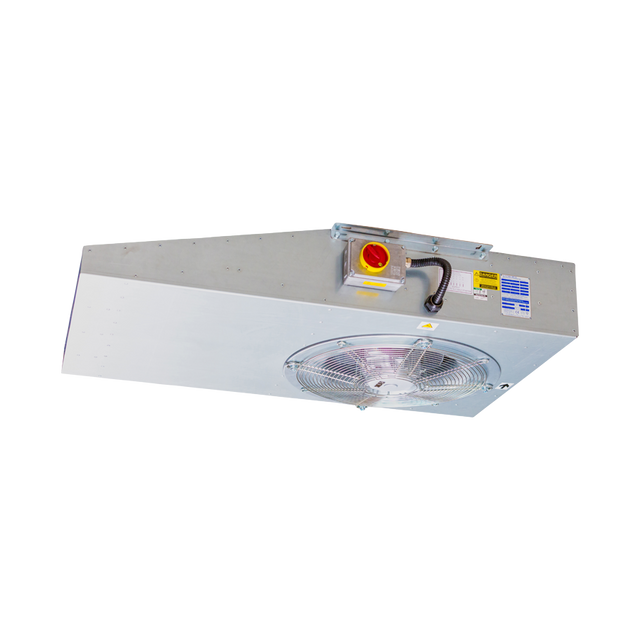

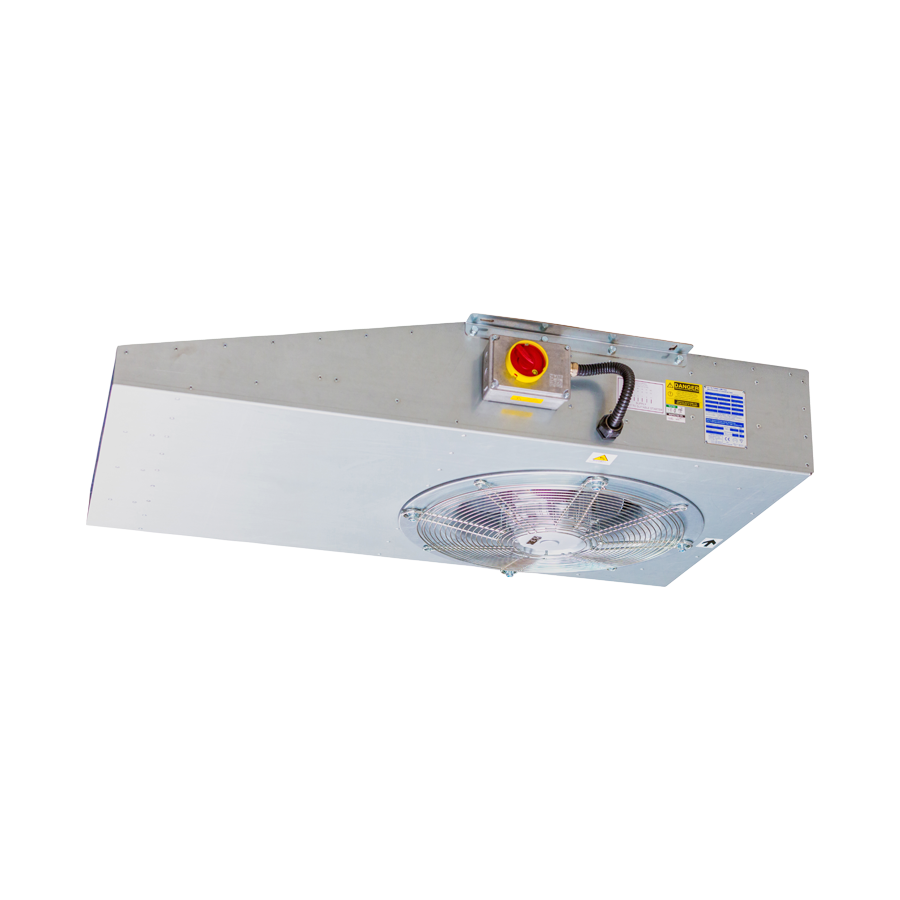

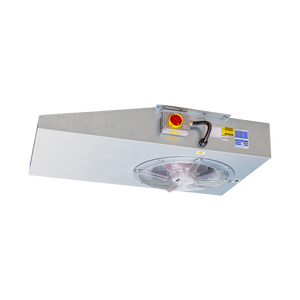

JETVENT JVC

JETVENT JVC

• 2 standard sizes, 50N and 100N
• Removes car park pollutants including smoke, without the use of ducting
• Suitable for operating temperatures up +300°C for 2 hours
• EN12101 certified with BSI Kitemark
• Low profile design

The Jetvent centrifugal induction range comprises 50N or 100N thrust types that conform to European Standard EN12101-3. The range is suitable for ambient temperature operation as well as once only, 2 hour high temperature smoke conditions up to +300°C. The two speed motor is suitable for frequency inverter speed control on
high speed.

Cost Effective
Jetvent provides the scope for reduced installation and overall construction build costs compared with traditional ducted systems. The high efficiency impellers make this a very economical method of moving high volumes of air.

Rigerous Testing
Jetvent is independently tested to meet the exacting standards of EN 12101-3 for operating at +300°C for 2 hours. Units are tested to ISO13350 (airside performance) and ISO13347-2 (sound performance).

Air Quality
Jetvent induction fans provide an improvement in air quality achieved by mixing the air more effectively, which means the potential risk of contaminant accumulation (beyond specific requirements) is overcome.

Ingress Protection
A minimum protection to IP55 on electrics improves reliability and ease of cleaning by means of pressure washing components. The unit is supplied as standard with lockable fire rated isolator.

Robust Design
Casing shall be pre galvanised mild steel sheet to provide a long lasting and robust construction. The integral guard is designed to protect against the rotating impeller parts. The guard is bright zinc plated.

Slim Profile
The slim profile design of Jetvent allows designers to overcome problems caused by obstructive structural beams and low overall ceiling heights, without compromising performance characteristics.

Better Security
The elimination or reduction in ductwork means a safer, lighter environment with better security due to the increased visibility.

Low Maintenance
With no ductwork, maintenance costs are reduced as there is no ducting to become blocked, damaged or subject to leakage
