Plate Axial Fans

Plate axial fans are specialised air-moving devices designed to provide reliable and energy-efficient airflow. With a flat mounting plate and axial blades, these fans can move large volumes of air at low pressure, making them suitable for industrial, commercial, and agricultural applications across the UK. They combine durability, efficiency, and ease of
installation, while meeting the ventilation needs set out in UK Building Regulations and workplace health and safety standards.

How Plate Axial Fans Work

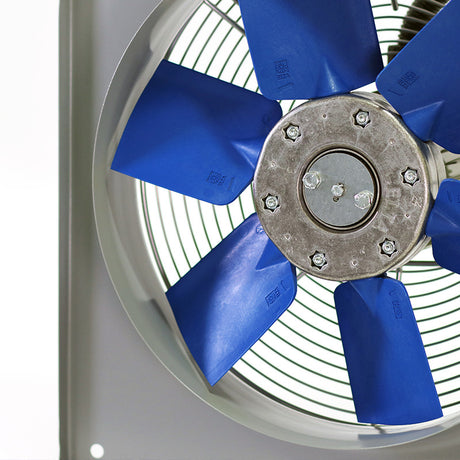

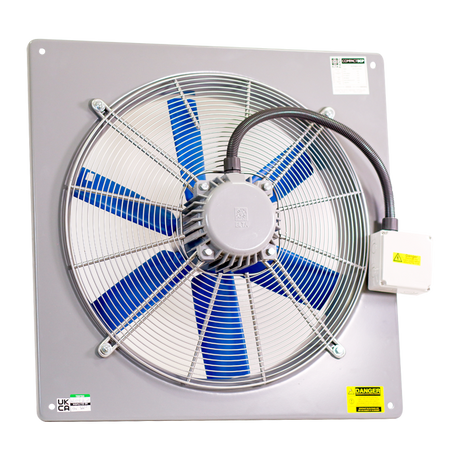

Plate axial fans consist of a motor-driven impeller attached to a flat plate. The blades rotate around a central hub, producing airflow parallel to the fan’s axis. The flat plate design ensures stability and simple mounting across a range of environments. These fans draw air through their axis, creating low-pressure airflow suitable for ventilation, cooling, and exhaust purposes.

Benefits of Plate Axial Fans

✔ Space-Saving Design – Compact and flat for easy installation in confined spaces.

✔ High Airflow Capacity – Moves large air volumes efficiently, suitable for demanding environments.

✔ Energy Efficiency – Helps reduce running costs while supporting sustainability goals.

✔ Durability and Reliability – Built from robust materials to withstand continuous use.

✔ Versatile Applications – Suitable for agriculture, manufacturing, warehouses, and HVAC systems.

Applications of Plate Axial Fans

Plate axial fans are widely used across the UK in both commercial and industrial environments. Common applications include:

• Agriculture – Ventilation for greenhouses, livestock barns, and crop storage facilities.

• Industrial Cooling – Helps cool machinery, processes, and production areas.

• HVAC Systems – Improves air circulation and supports compliance with Building Regulations Part F.

• Exhaust Systems – Removes heat, fumes, smoke, and pollutants to improve air quality and safety.

Choosing the Right Plate Axial Fan

When selecting a plate axial fan, consider the following factors:

• Airflow Requirements – Measured in m³/h or litres per second (l/s).

• Static Pressure – Consider ductwork resistance and airflow obstructions.

• Size and Compatibility – Ensure the fan dimensions fit the installation space.

• Noise Levels – Select low-noise models for offices, retail, or residential settings.

• Efficiency – Choose high-efficiency options to lower energy usage and running costs.

Maintenance Tips for Plate Axial Fans

• Inspect regularly for wear, loose fixings, or damaged blades.

• Clean blades and housings to remove dust and debris that reduce performance.

• Lubricate motor bearings if required, following manufacturer instructions.

• Ensure correct alignment to prevent vibration and noise.

Plate axial fans are specialised air-moving devices designed to provide reliable and energy-efficient airflow. With a flat mounting plate and axial blades, these fans can move large volumes of air at low pressure, making them suitable for industrial, commercial, and agricultural applications across the UK. They combine durability, efficiency, and ease of installation, while meeting the ventilation needs set out in UK Building Regulations and workplace health and safety standards.

Plate axial fans consist of a motor-driven impeller attached to a flat plate. The blades rotate around a central hub, producing airflow parallel to the fan’s axis. The flat plate design ensures stability and simple
mounting across a range of environments. These fans draw air through their
axis, creating low- pressure airflow suitable for ventilation, cooling, and
exhaust purposes.

✔ Space-Saving Design – Compact and flat for easy installation in confined spaces.

✔ High Airflow Capacity – Moves large air volumes efficiently, suitable for demanding environments.

✔ Energy Efficiency – Helps reduce running costs while supporting sustainability goals.

✔ Durability and Reliability – Built from robust materials to withstand continuous use.

✔ Versatile Applications – Suitable for agriculture, manufacturing, warehouses, and HVAC systems.

Plate axial fans feature weather-resistant
materials that allow them to function properly
outdoors. Users should examine specifications to determine if the fan is
designed for outdoor use.

You need to determine both the airflow requirements (CFM) and the available space
where you plan to install the fan. Use manufacturer guidelines together with expert help when picking the correct fan size for your needs.

Fans should comply with UK Building Regulations (Part F – Ventilation) and relevant workplace ventilation guidance from the HSE.

Please refer to the technical bulletin covering fans for more information of potential relevant standards.

The design of plate axial fans makes them
simple to install for most users. The installation should remain a professional task for complex configurations as well as industrial applications.

A fan's maintenance requires periodic cleaning of the blades alongside damage inspections and motor lubrication and
proper alignment checks to achieve optimal operational results.

When selecting a plate axial fan, consider the following
factors:

• Airflow Requirements – Measured in m³/h or litres per
second (l/s).

• Static Pressure – Consider ductwork resistance and airflow
obstructions.

• Size and Compatibility – Ensure the fan dimensions fit the
installation space.

• Noise Levels – Select low-noise models for offices,
retail, or residential settings.

• Efficiency – Choose high-efficiency options to lower
energy usage and running costs.

• Inspect regularly for wear, loose fixings, or damaged
blades.

• Clean blades and housings to remove dust and debris that
reduce performance.

• Lubricate motor bearings if required, following
manufacturer instructions.

• Ensure correct alignment to prevent vibration and noise.

Calculate airflow requirements in m³/h or l/s based on room volume and intended air changes per hour. Our team can help with this.

Smaller fans may be installed by competent persons, but industrial installations should be carried out by qualified professionals.

Yes, low-noise variants are available for offices, schools, and residential projects.

Yes, we can provide ATEX-certified plate axial fans for hazardous environments where explosive gases or dust may be present.

High-efficiency models are available with energy ratings that help reduce long-term running costs.

We recommend at least an annual inspection, with more frequent checks in dusty or high-use environments.

Please refer to the technical bulletin on fans for more info on the relevant standards, where additional advice may be found to do with frequency of servicing and maintenance. There are other situations such as HRB’s (high risk residential buildings) where fans used for life safety systems require more frequent maintenance.
