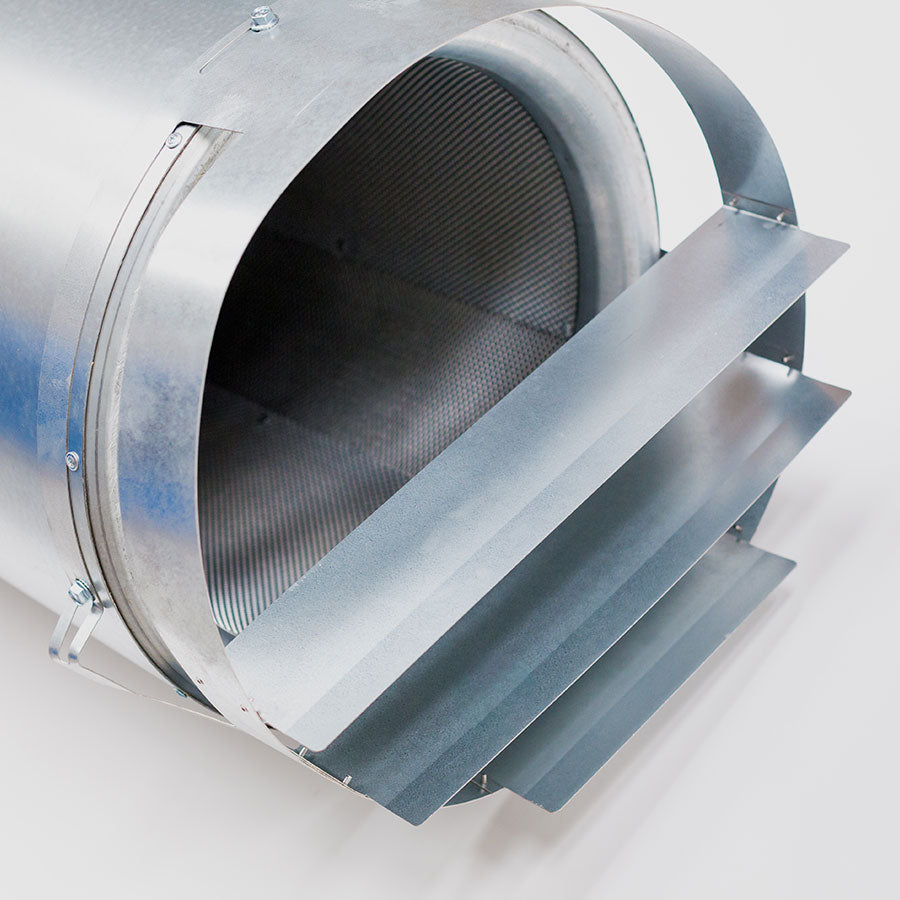

JETVENT JFU/JFR Unidirectional Units

JETVENT JFU/JFR

• 3 standard sizes from 315mm to 400mm
• Removes car park pollutants including smoke without the use of ducting
• Available as unidirectional or reversible
• Suitable for operating temperatures up +300°C for 2 hours
• EN12101 certified with BSI Kitemark

The Jetvent Axial Impulse fan range is available with either unidirectional or truly reversible airflow. Jetvent can run in either normal extract mode or once only smoke operation at up to 300ºC for 2 hours which means cost savings as a single fan provides both general and smoke extract requirements.

Security
The elimination or reduction in ductwork means a safer, lighter environment with
better security due to the increased visibility.

No Ductwork
By adding momentum to the air, Jetvent fans thrust air towards the desired extract points to ensure stagnant fumes and smoke are cleared effectively and efficiently. This principal eliminates the requirement for ductwork within a car park, as the Jetvent effectively transfers the polluted air, allowing for better use of limited space in underground facilities.

Low Maintenance
With no ductwork, maintenance costs are reduced as there is no ducting to become blocked, damaged or subject to leakage.

Cost Effective
Jetvent provides the scope for reduced installation and overall construction build costs compared with traditional ducted systems. The high efficiency impellers make this a very economical method of moving high volumes of air.

Design Appeal
The integral bell mouth inlet has a streamlined appearance for improved performance and sound.

Robust Design
Jetvent axial fans are of a robust, heavy duty construction for added strength and durability. Fan casings are heavy gauge, sheet steel, roll formed and welded and
hot dipped galvanised after fabrication to BS EN ISO 1461.
