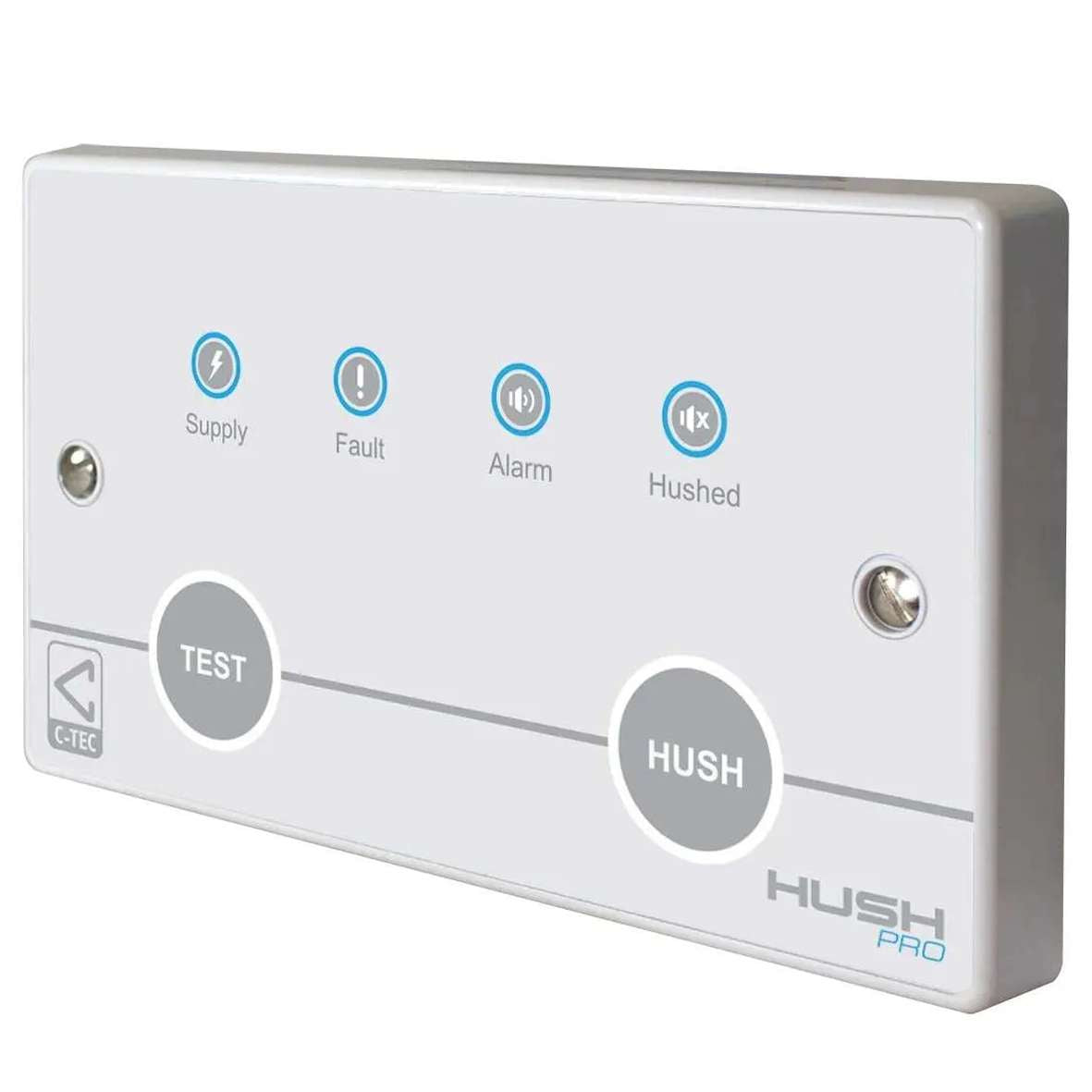

Hush-Pro BS5839-6 Grade C Fire Alarm Controller
Hush-Pro BS5839-6 Grade C Fire Alarm Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
-
Provides fully monitored BS 5839-6 Grade C compliant fire detection, alarm, silencing and test facilities in flats & apartments.
-
Puts residents in control of their own fire systems by allowing them to test and silence devices whilst standing at floor level.
-

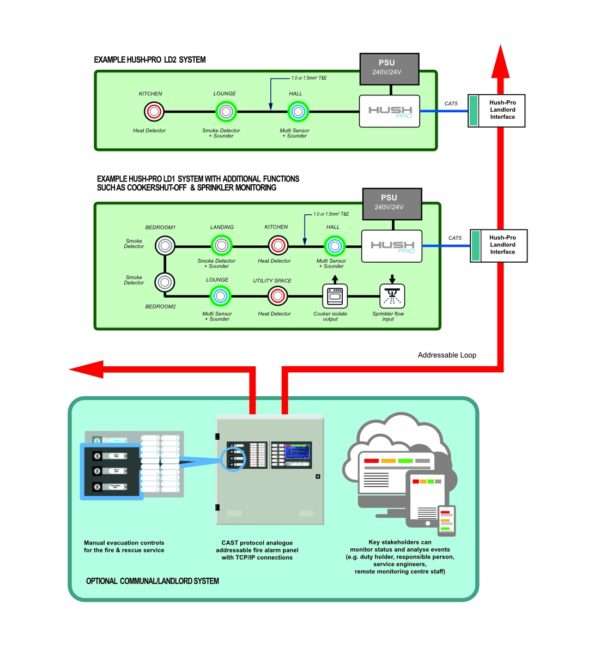

Easily interfaced to:(1) EN54 certified detectors & alarms – providing commercial grade protection in domestic dwellings.(2) Cooker shut-off relays – to turn off the supply in the event of a fire.(3) Sprinkler monitoring units – to flag if a sprinkler system is isolated.(4) Remote overdoor indicators – to warn people in corridors where a fire may be taking place.(5) Communal fire systems – to report fires & faults outside the dwelling (see Networked Hush-Pro Systems tab below for details).
-
Lifts the typical level of protection from Grade D (interlinked mains/battery alarms) to Grade C.
- Requires additional HPPSU and Hush-Pro field devices.
Technical Specifications
| Power requirements |
External 24V PSU (order code HPPSU). Hush button features a Lithium-ion battery. Provides 72 hr standby, plus 30 mins alarm period (standby may be reduced on heavily populated systems – contact our |
|---|---|
| Supply/operating voltage |
24V. |
| Quiescent current |
5mA (TBC). |
| Indicators |
Supply: steady for ext. PSU, flashes for battery; Fault: flashes for an open, short or faulty device; Local Alarm: steady for Fire 1 alarm; Global Alarm: flashes for Fire 2 alarm or monitored inpu |
| Controls |
1 x TEST button & 1 x HUSH button – various functions |
| Product dimensions (mm) |
146 W x 85 H x 21 D mm (Can be mounted on a standard UK 25mm double gang flush or surface back box). |
| Construction & finish |
Supplied on a double gang plastic plate. |
| IP Rating |
IP40. |
| Operating conditions/temperature |
-5ºC to +40ºC. Max relative humidity: 95%. |
| Notes |
Max. length of device circuit: 100m; Max. circuit load: 100mA. More detailed technical specifications to follow. |
| Lifetime expectancy |
The Hush-Pro controller includes a replaceable Lithium-Ion standby battery which requires changing every 10 years. |
Hush-Pro BS5839-6 Grade C Fire Alarm Controller
Download Data Sheets
Click the PDF to download each individual data sheet.
