Hochiki ESP Analogue Addressable Loop-Powered Base Sounder YBO-BS

Product Code: YBO-BS
£28.39 excl. VAT
Colour: Ivory

Best Price
Quantity
3+
5+
10+
Unit Price
£27.82
£27.25
£26.69
Discount
2%
4%
6%

1-3 Days Delivery

Description

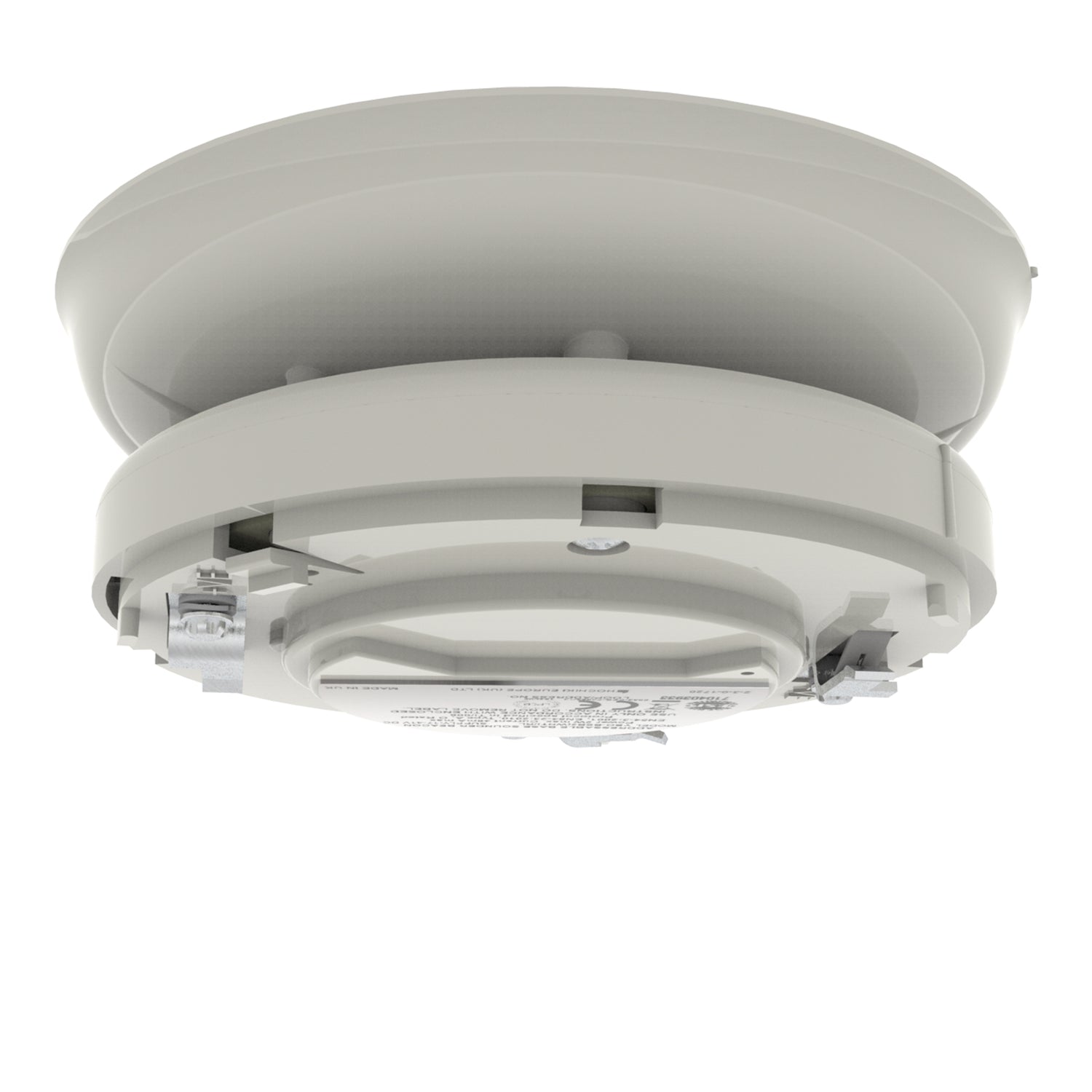

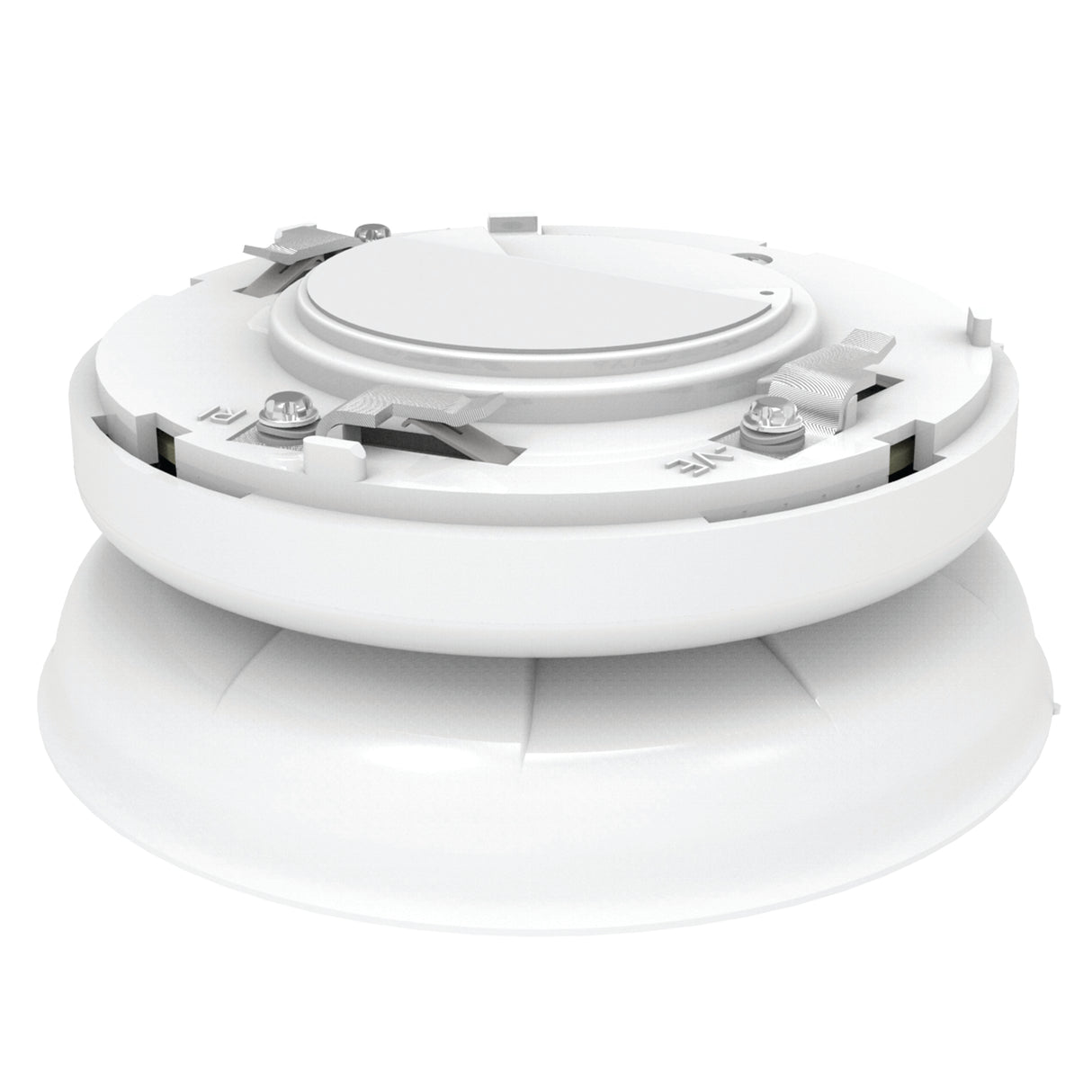

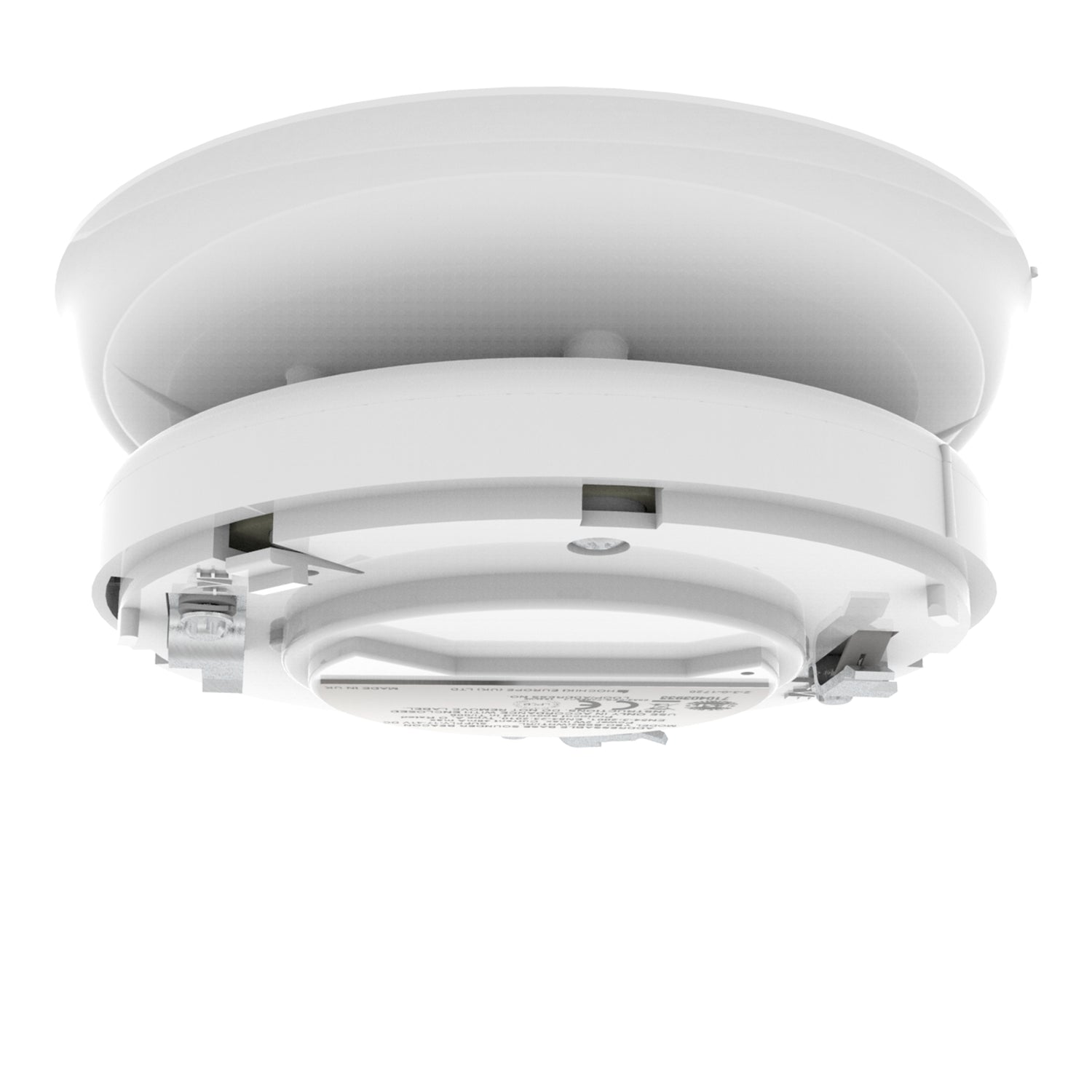

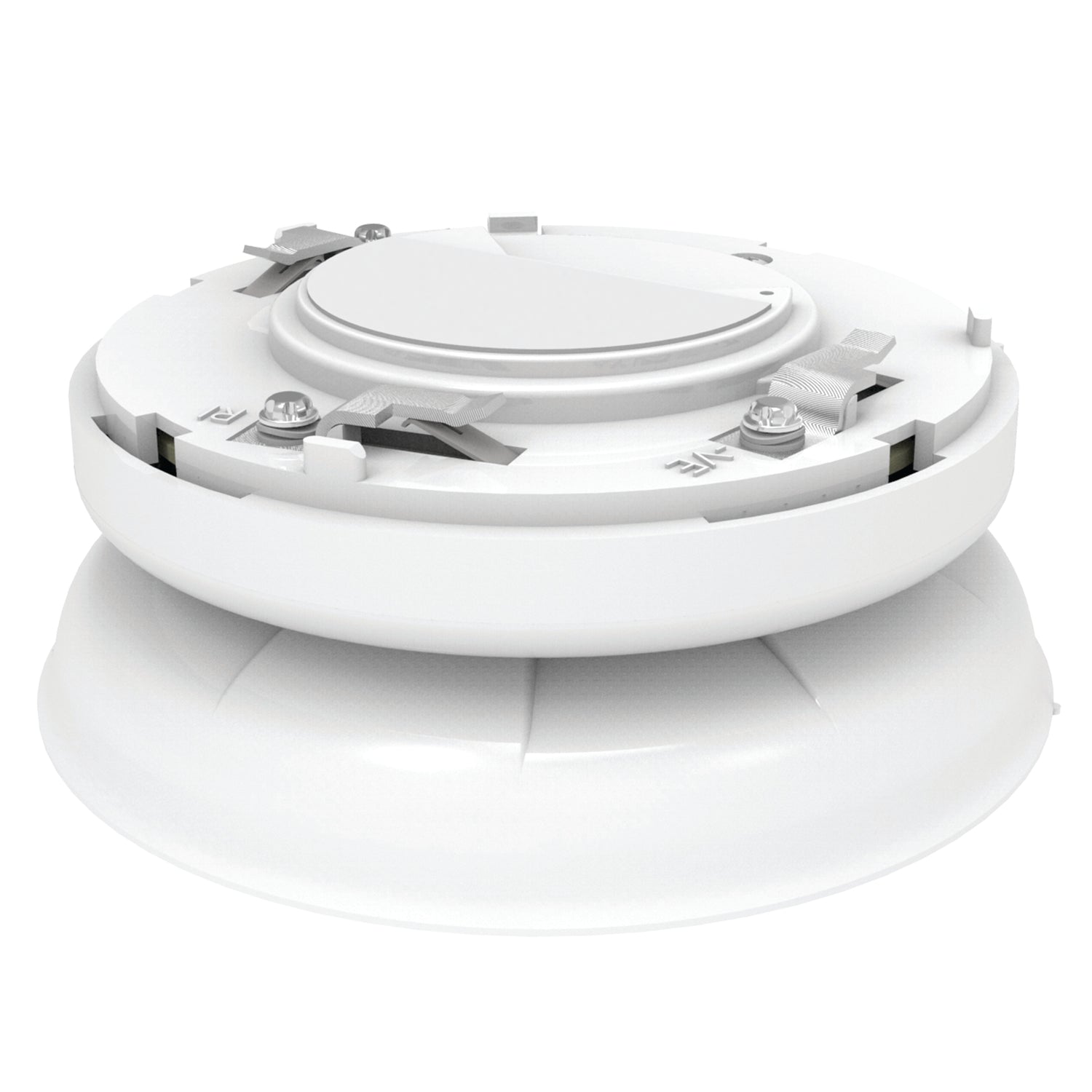

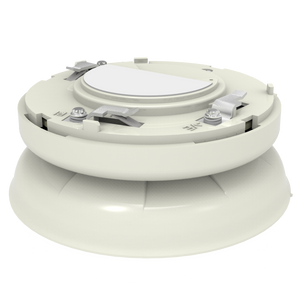

Model YBO-BS is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Base (YBO-R/SCI – from Batch Number 6044) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators.

The unit can also be converted into a wall sounder with the simple addition of a Cap (SI/CAP). The sounder is Ingress Protection rated to IP21 and for internal use only.

An Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution (dependant on control panel compatibility).

Key Features:

● Loop Powered with Single Loop Address - addressed automatically by Control Panel or via the TCH-B100 Hand Held Programmer
● Variable Sound Output 50 ~ 98 dB(A) (+/-2 dB(A)) output at 1 metre
● Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator
● 51 User-Selectable Tones (all tones EN54-3 compatible)
● Auto-Shutdown feature prevents noise-pollution
● Approved by LPCB & VdS

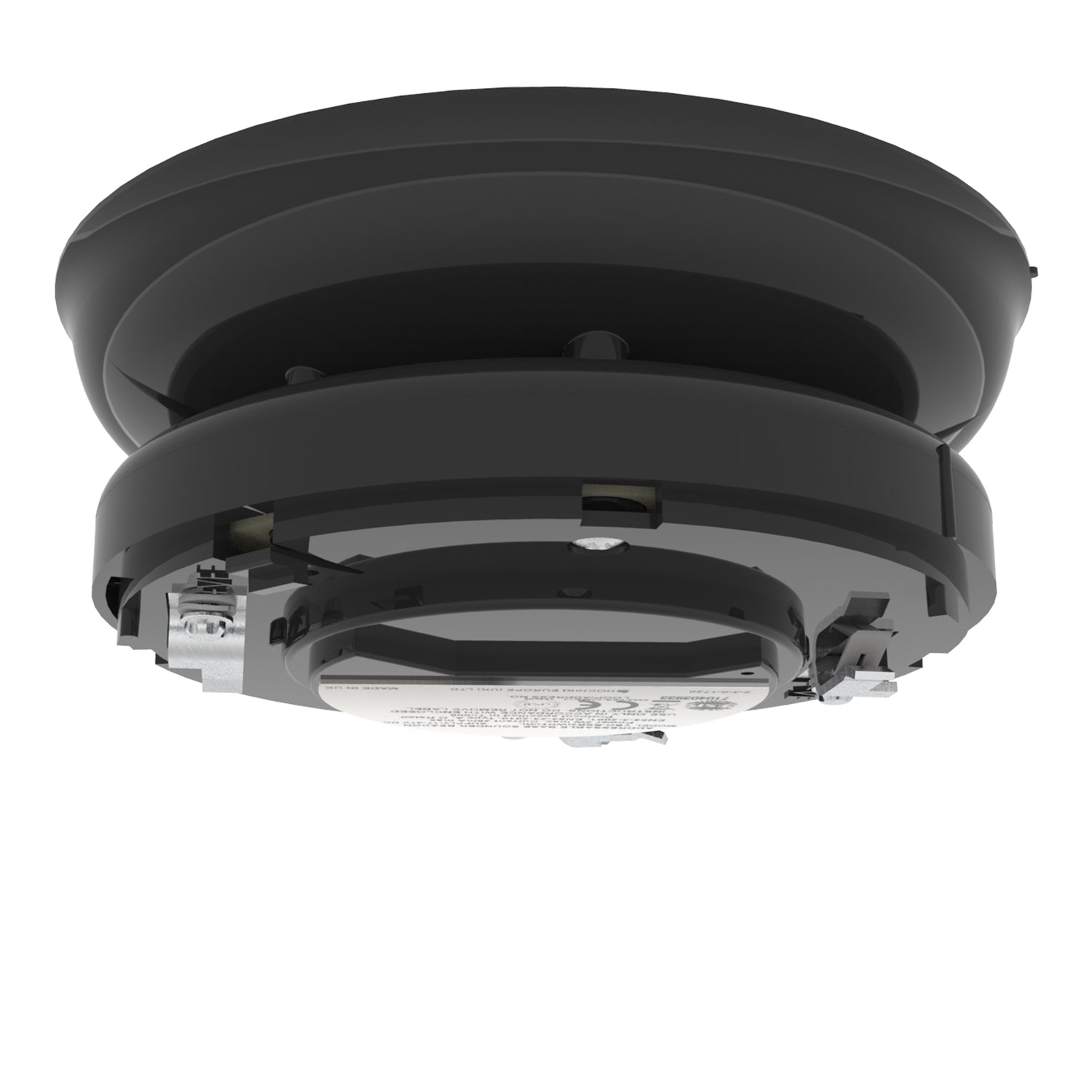

● Also available in white and black

Download Data Sheets

Click the PDF to download each individual data sheet.

    Datasheet
{"id":7631265431612,"title":"Hochiki ESP Analogue Addressable Loop-Powered Base Sounder YBO-BS","handle":"hochiki-esp-analogue-addressable-loop-powered-base-sounder-ybo-bs","description":"\u003cp\u003eModel YBO-BS is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R\/3) or the Isolator Base (YBO-R\/SCI – from Batch Number 6044) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators. \u003c\/p\u003e\n\n\u003cp\u003eThe unit can also be converted into a wall sounder with the simple addition of a Cap (SI\/CAP). The sounder is Ingress Protection rated to IP21 and for internal use only. \u003c\/p\u003e\n\n\u003cp\u003eAn Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution (dependant on control panel compatibility).\u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Loop Powered with Single Loop Address - addressed automatically by Control Panel or via the TCH-B100 Hand Held Programmer\n\u003cbr\u003e● Variable Sound Output 50 ~ 98 dB(A) (+\/-2 dB(A)) output at 1 metre\n\u003cbr\u003e● Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator\n\u003cbr\u003e● 51 User-Selectable Tones (all tones EN54-3 compatible)\n\u003cbr\u003e● Auto-Shutdown feature prevents noise-pollution\n\u003cbr\u003e● Approved by LPCB \u0026amp; VdS\n\u003cbr\u003e● Also available in white and black\u003c\/p\u003e","published_at":"2024-06-07T11:20:21+01:00","created_at":"2024-06-07T11:20:21+01:00","vendor":"Hochiki","type":"Addressable Sounders","tags":["Addressable","Addressable Sounders","Base Sounder","Fire \u0026 Smoke","Fire Detection","Fire Safety","Hochiki","Pre-order","Type: Fire Alarm"],"price":2839,"price_min":2839,"price_max":3690,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41813161508924,"title":"Ivory","option1":"Ivory","option2":null,"option3":null,"sku":"YBO-BS","requires_shipping":true,"taxable":true,"featured_image":{"id":36442785218620,"product_id":7631265431612,"position":4,"created_at":"2024-06-19T14:12:44+01:00","updated_at":"2024-06-19T14:13:00+01:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_1.jpg?v=1718802780","variant_ids":[41813161508924]},"available":true,"name":"Hochiki ESP Analogue Addressable Loop-Powered Base Sounder YBO-BS - Ivory","public_title":"Ivory","options":["Ivory"],"price":2839,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":29495775133756,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_1.jpg?v=1718802780"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41813161541692,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"YBO-BS(BLK)","requires_shipping":true,"taxable":true,"featured_image":{"id":36442785349692,"product_id":7631265431612,"position":5,"created_at":"2024-06-19T14:12:44+01:00","updated_at":"2024-06-19T14:13:00+01:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_BLK__2.jpg?v=1718802780","variant_ids":[41813161541692]},"available":true,"name":"Hochiki ESP Analogue Addressable Loop-Powered Base Sounder YBO-BS - Black","public_title":"Black","options":["Black"],"price":3690,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":29495775068220,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_BLK__2.jpg?v=1718802780"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41813161574460,"title":"White","option1":"White","option2":null,"option3":null,"sku":"YBO-BS(WHT)","requires_shipping":true,"taxable":true,"featured_image":{"id":36442785415228,"product_id":7631265431612,"position":1,"created_at":"2024-06-19T14:12:44+01:00","updated_at":"2024-06-19T14:13:00+01:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__3.jpg?v=1718802780","variant_ids":[41813161574460]},"available":true,"name":"Hochiki ESP Analogue Addressable Loop-Powered Base Sounder YBO-BS - White","public_title":"White","options":["White"],"price":2839,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":29495775035452,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__3.jpg?v=1718802780"}},"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__3.jpg?v=1718802780","\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__6.jpg?v=1718802780","\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_3.png?v=1718802780","\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_1.jpg?v=1718802780","\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_BLK__2.jpg?v=1718802780"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__3.jpg?v=1718802780","options":["Colour"],"media":[{"alt":null,"id":29495775035452,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__3.jpg?v=1718802780"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__3.jpg?v=1718802780","width":2000},{"alt":null,"id":29495775002684,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1772,"width":1772,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__6.jpg?v=1718802780"},"aspect_ratio":1.0,"height":1772,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_WHT__6.jpg?v=1718802780","width":1772},{"alt":null,"id":29495775100988,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1772,"width":1772,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_3.png?v=1718802780"},"aspect_ratio":1.0,"height":1772,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_3.png?v=1718802780","width":1772},{"alt":null,"id":29495775133756,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_1.jpg?v=1718802780"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_1.jpg?v=1718802780","width":2000},{"alt":null,"id":29495775068220,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_BLK__2.jpg?v=1718802780"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBO-BS_BLK__2.jpg?v=1718802780","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eModel YBO-BS is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R\/3) or the Isolator Base (YBO-R\/SCI – from Batch Number 6044) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators. \u003c\/p\u003e\n\n\u003cp\u003eThe unit can also be converted into a wall sounder with the simple addition of a Cap (SI\/CAP). The sounder is Ingress Protection rated to IP21 and for internal use only. \u003c\/p\u003e\n\n\u003cp\u003eAn Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution (dependant on control panel compatibility).\u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Loop Powered with Single Loop Address - addressed automatically by Control Panel or via the TCH-B100 Hand Held Programmer\n\u003cbr\u003e● Variable Sound Output 50 ~ 98 dB(A) (+\/-2 dB(A)) output at 1 metre\n\u003cbr\u003e● Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator\n\u003cbr\u003e● 51 User-Selectable Tones (all tones EN54-3 compatible)\n\u003cbr\u003e● Auto-Shutdown feature prevents noise-pollution\n\u003cbr\u003e● Approved by LPCB \u0026amp; VdS\n\u003cbr\u003e● Also available in white and black\u003c\/p\u003e"}
Hochiki

Hochiki ESP Analogue Addressable Loop-Powered Base Sounder YBO-BS

From £28.39 excl. VAT

Model YBO-BS is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Base (YBO-R/SCI – from Batch Number 6044) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators.

The unit can also be converted into a wall sounder with the simple addition of a Cap (SI/CAP). The sounder is Ingress Protection rated to IP21 and for internal use only.

An Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution (dependant on control panel compatibility).

Key Features:

● Loop Powered with Single Loop Address - addressed automatically by Control Panel or via the TCH-B100 Hand Held Programmer
● Variable Sound Output 50 ~ 98 dB(A) (+/-2 dB(A)) output at 1 metre
● Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator
● 51 User-Selectable Tones (all tones EN54-3 compatible)
● Auto-Shutdown feature prevents noise-pollution
● Approved by LPCB & VdS
● Also available in white and black
