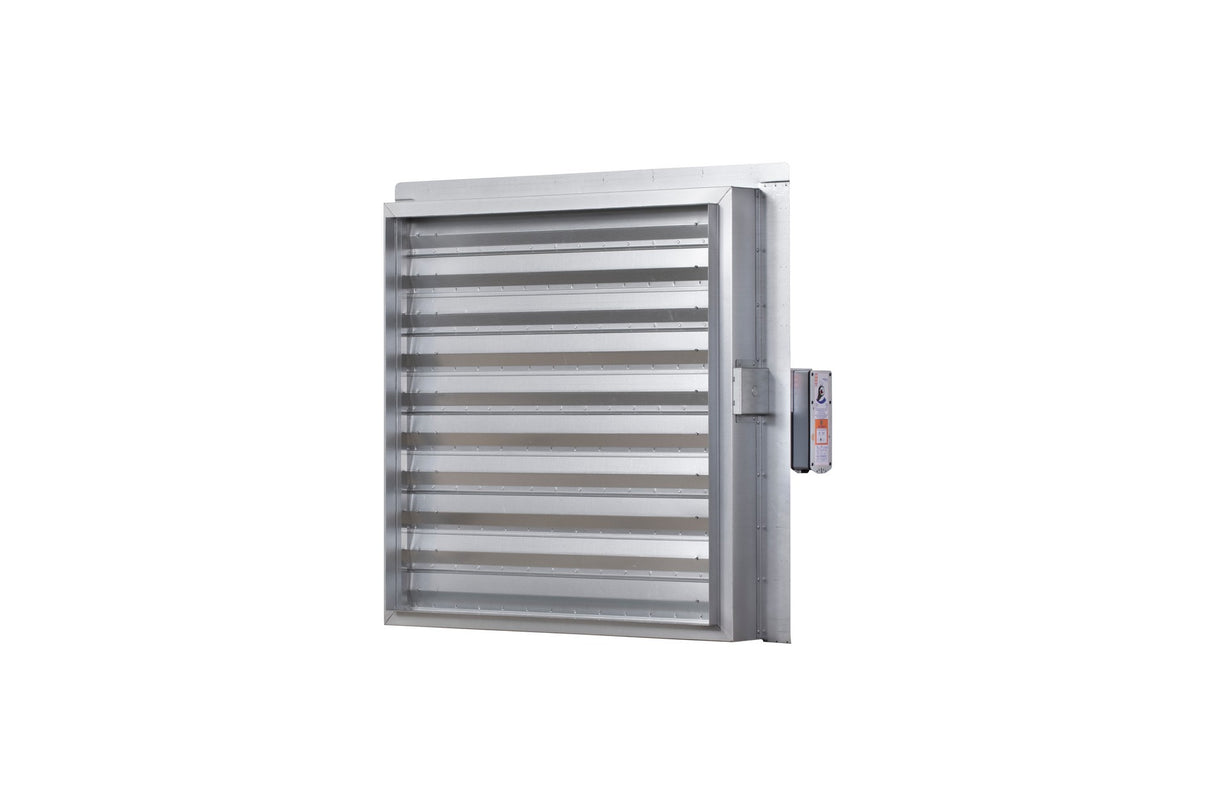

FDS-TD Series, Type C, 430 Grade Stainless Steel Blades, Batt Frame (AF-BATT)

FSD-TD series multiblade ES rated motorised Fire Damper is designed to stop the spread of fire and smoke through ducts which pass through fire rated walls, floors, ceilings and cavity barriers.

ES classified fire damper with reduced smoke leakage characteristics (BS EN 1366-2)

The FSD-TD Series opposed blade motorised Fire dampers are suitable for use in dryline walls, masonry/concrete walls, floors, cavity barriers and Batt and is independently 3rd party tested and certified to the following standards:

• Fire resistance tested to BS EN 1366-2.
• ES classified to BS EN13501-3 CE marked to BS EN 15650 Closed blade leakage Class 2 to BS EN 1751.
• Fully welded damper casing leakage Class C to BS EN 1751.
• The double skin apposed blade design is held open via the actuator and will spring closed on input signal from damper control system and/or fire alarm input. Normal operating conditions – to a maximum of 1000Pa.
• The damper design enables testing via the thermal fuse test button without the need for specialist tools or access panels. NB: Access panels may be required to comply with DW145 G.3.1.5.
• Available in galvanised or stainless steel construction in rectangular, circular or flat oval spigot configurations. tested horizontal and vertical options, with five frame variations to suit varying applications.
• Available in sizes from 100mm wide x 100mm high up to 1000mm wide x 1000mm high in single section, larger format multiple section configurations available.
