Chain Actuator

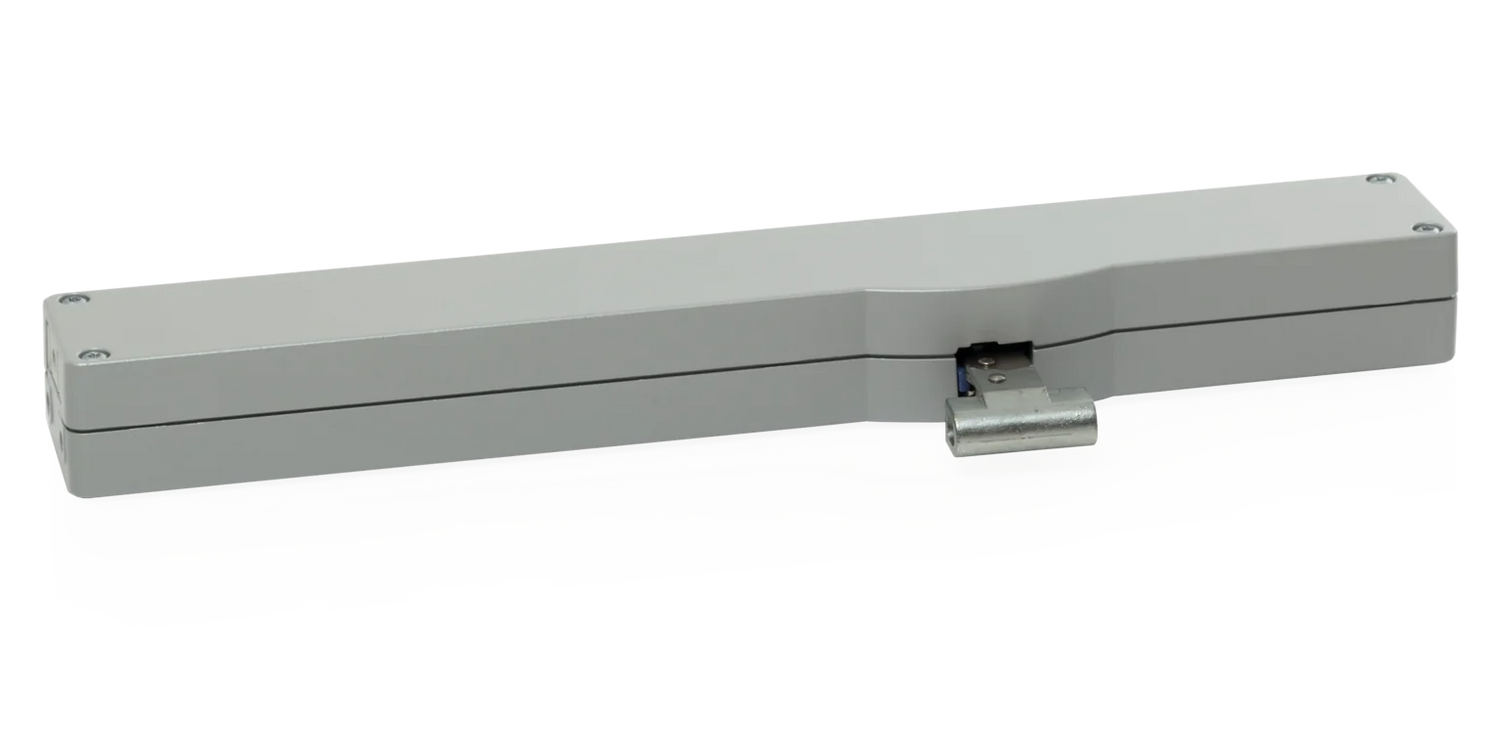

Chain Drive 24v - 200N, 250mm - White

Product Code: VCD203/250/W
£146.15 excl. VAT

Description

  • For façade windows, roof windows and ventilation flaps in conservatories
  • With motor electronics controlled via microprocessor
  • "TMS+" tandem safety function for operating 2 drives on one sash
  • Option of chain stroke programming via magnet
  • Reprogrammed opening stroke is transmitted to the tandem drive
  • Simple connection via plug connector
  • Programmable drive functions and different drive parameters
  • Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
  • Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
  • With optional burglary-resistant effect and maximum locking force of 4000 N

Technical Data:

  • Supply: 24 V DC / ±20 % / 0.35 A
  • Duty cycle: 30 % (ON: 3 min. / OFF: 7 min.)
  • Force of pressure: 200 N
  • Tensile force: 200 N
  • Nominal locking force : 2000 N / 4000 N *
  • Service life: 20000 double strokes *
  • Stroke: 250 mm
  • OPEN running speed: 6 mm/s
  • CLOSED running speed: 6 mm/s
  • Type of protection: IP 30
  • Emission sound pressure level: LpA ≤ 46 dB(A)
  • Temperature range: 0 °C … +60 °C
  • Housing: Die-cast zinc
  • Surface: Powder-coated
  • Colour: White (~ RAL 9016)
  • Colour: ~ RAL 9016
  • Connection: 2.5 m PVC-cable
  • W x H x D : 300 x 30 x 47 mm

Download Data Sheets

Click the PDF to download each individual data sheet.
