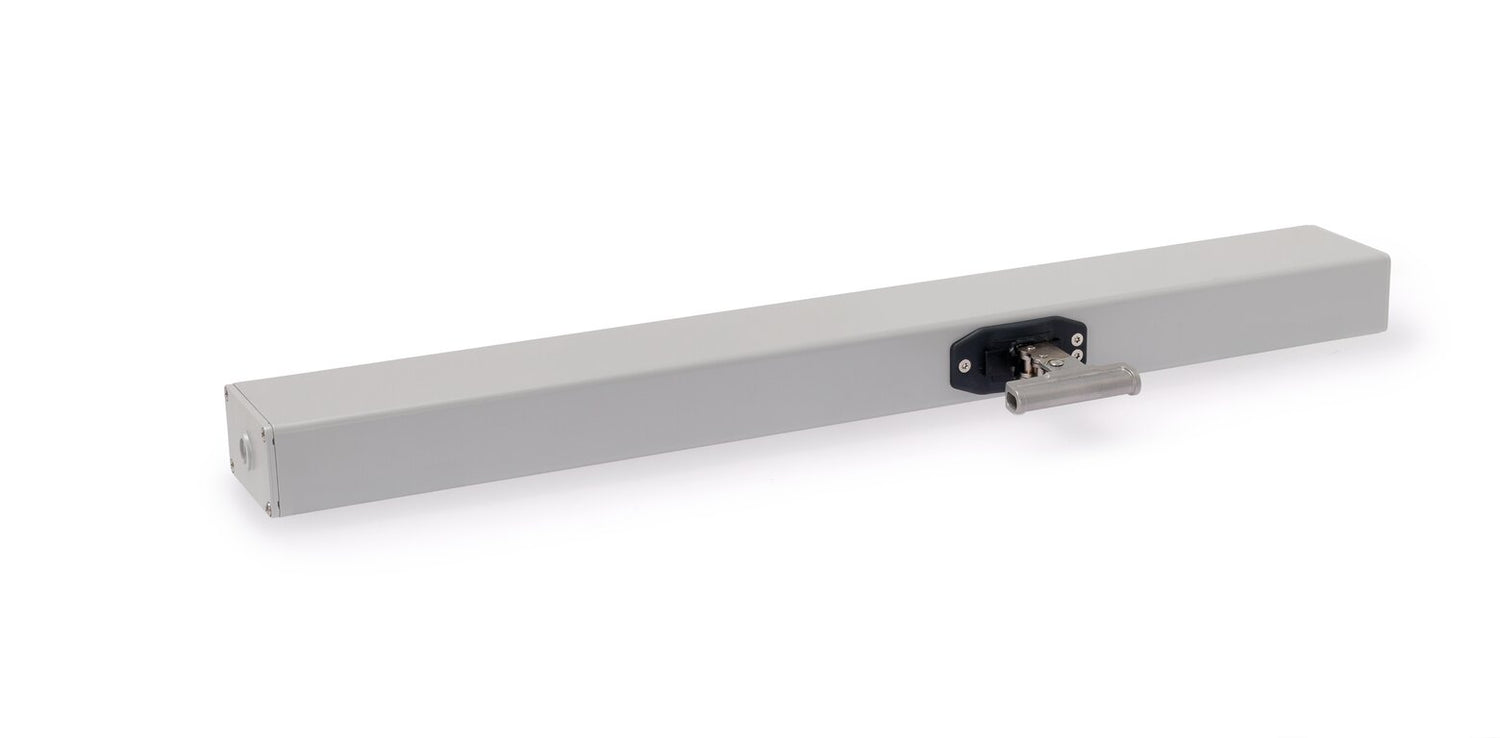

Chain Drive 24v - 1000N, 1000mm - Silver

 Performance features

• Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
• With motor electronics controlled via microprocessor
• High‑speed function (HS) for especially fast opening windows in case of fire (SHEV)
• Low running noises thanks to the innovative acoustic decoupling of the drive components
• Special chain stabilisation and centred chain outlet
•  Compact design thanks to triple deflection of the chain
• Use of a highly efficient, wear-free brushless motor
• Relief of pressure on window gasket after closing process
• Programmable drive functions and different drive parameters
• Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Technical Data

• Supply 24 V DC / ±15 % / 3 A
• Duty cycle 30 % (ON: 3 min. / OFF: 7 min.)
• Force of pressure 1000 N
• Tensile force 1000 N
• Nominal locking force 3500 N
• Service life > 20000 double strokes
• Stroke 1000 mm
• OPEN running speed 7 mm/s
• OPEN running speed - SHEV 18.5 mm/s
• CLOSED running speed 5 mm/s
• Type of protection IP 42
• Emission sound pressure level LpA ≤ 45 dB(A)
• Temperature range-15 °C … +75 °C
• Fire resistance B300 (30 min / 300 °C)
• Housing Aluminium
• Surface Powder-coated
• Colour White aluminium (~ RAL 9006)
• Connection Silicone cable (must be ordered separately)
• Dimension A 735 mm
• Dimension B 462 mm
• W x H x D 735 x 53 x 90 mm
• Weight 6.25 kg
• Art. No. 26.201.10
