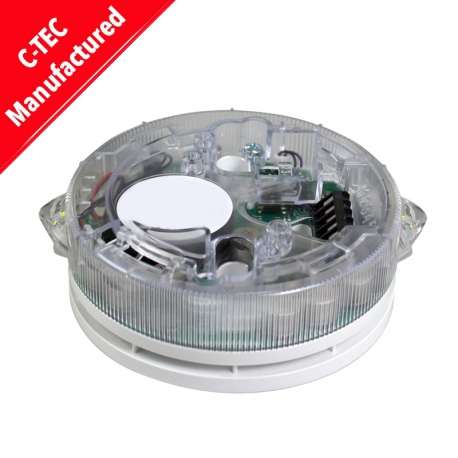

ActiV O Class Base voice sounder VAD WHITE
ActiV O Class Base voice sounder VAD WHITE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Superb sound intelligibility.
- Choose from two evacuation voice messages and four evacuation alarm tones (your selected evacuation message will be preceded by the selected tone).
- Provides ‘O-R-3-2.5-17’ light distribution using the same lenses and electronics as our EN54-3 & 23 certified base sounder VAD.
- Three selectable VAD flash rates (0.5Hz, 1Hz, OFF)
- Alarm Current at 30Vdc = 17mA (0.5Hz) or 24mA (1Hz)
- Alarm Current at 18Vdc = 18.5mA (0.5Hz) or 30mA (1Hz)

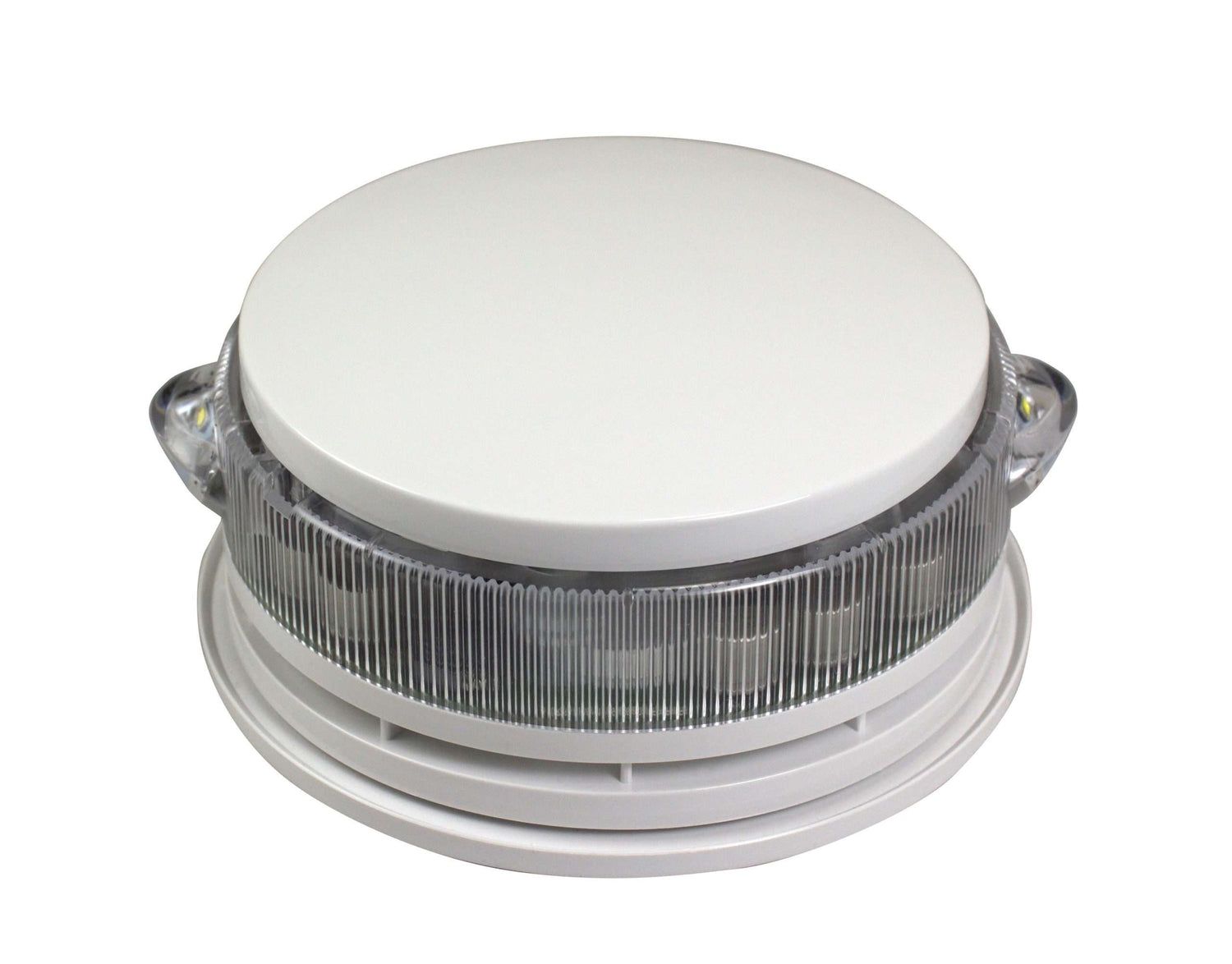

- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- Supplied with a BF431QCP quick connect plate and detector spur wires.
- IP21C rated.
Technical Specifications
| Protocol/compatibility |
Compatible with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and virtually all other makes (testing on third-party panels is recommended before use) |
|---|---|
| Application/operation |

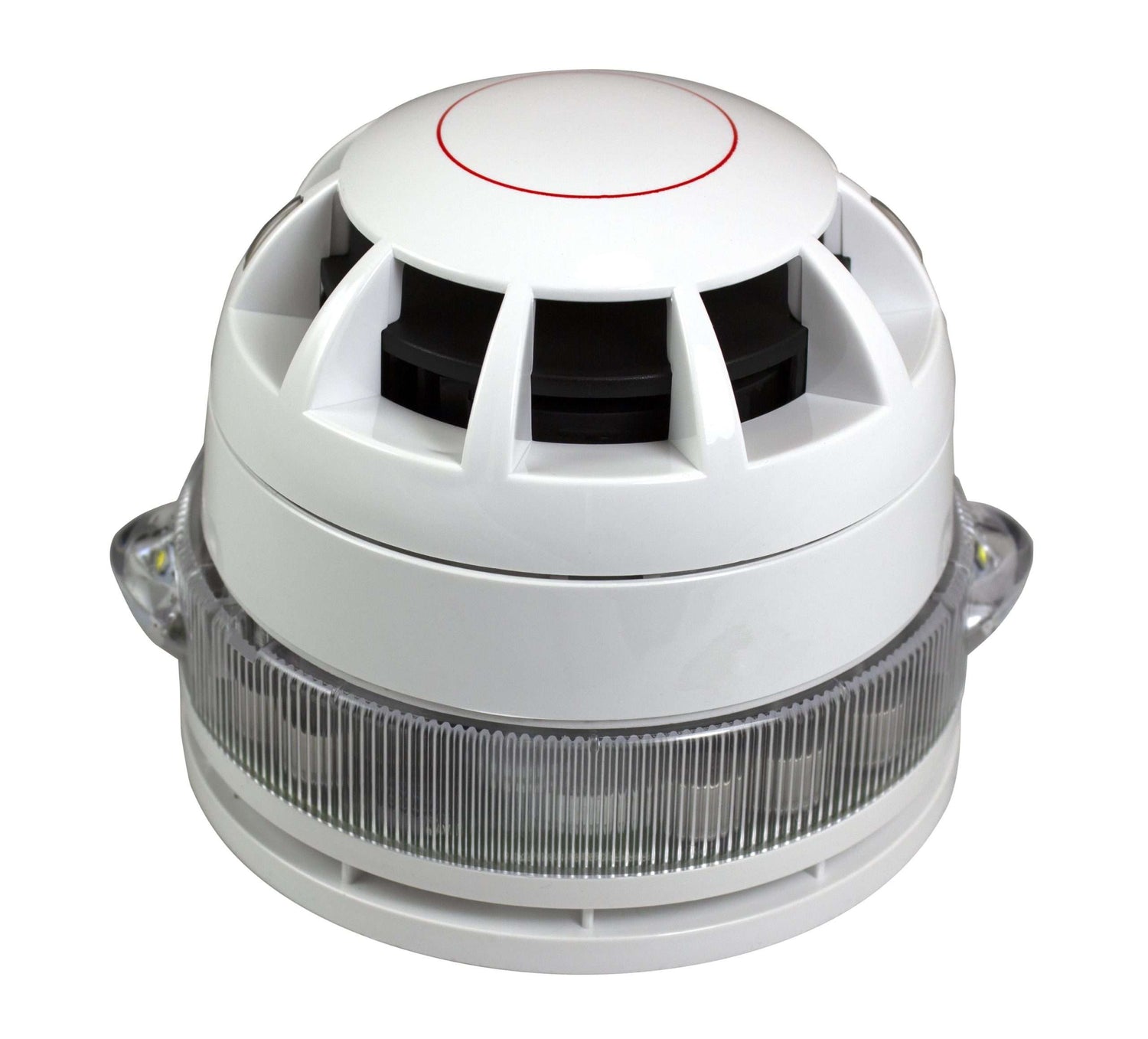

Designed to be ceiling mounted – either stand-alone with a red or white cap or as part of a stacked Voice Sounder/VAD/Detector Base combination. |
| VAD category & coverage |
O-R-3-2.5-17 Rectangular coverage – ideal for corridor spaces. |
| Flash rate & colour |
0.5Hz; 1Hz or OFF / White. |
| Supply/operating voltage |
18 to 30V DC. |
| Alarm current |
At 30Vdc: 17mA (0.5Hz) or 24mA (1Hz); At 18Vdc: 18.5mA (0.5Hz) or 30mA (1Hz) |
| Product dimensions (mm) |
122mm diameter x 46mm deep (not including optional detector and base). |
| IP Rating |
IP21C (Type A). |
| Weight |
170g. |
| Operating conditions/temperature |
-10ºC to +55ºC. Max. 95% RH (Non-condensing). |
| Notes |
Choose from 2 evacuation voice messages and 4 evacuation tones. Note all of these have an associated alert tone/message, the activation of which requires additional wiring and control functionality |
