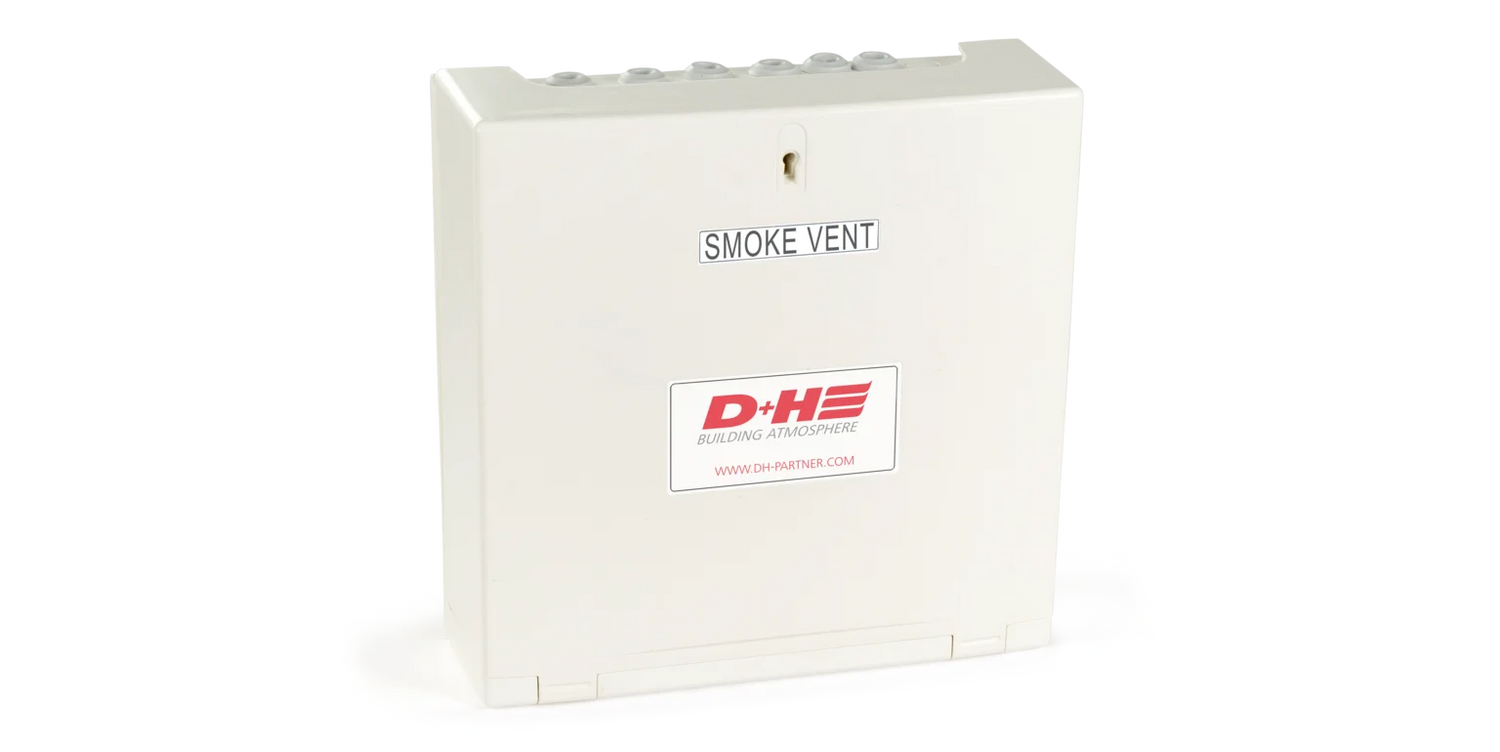

5A Single Zone Smoke Vent Control Panel
Product Code:
CPS-B1-5-0101
£446.15
excl. VAT
Unit price
excl. VAT /
Unavailable
5A Single Zone Smoke Vent Control Panel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Compact SHEV control panel, specifically for stairwells
- Tested and certified according to ISO 21927‑9, VdS 2581, VdS 2593, VdS 2344, DIN EN 12101‑10 and EN 62368-1:2014 + A11:2017, fulfils the building authority requirements in accordance with DIN 18232-9
- Up to 5 A total drive current
- Stabilised output voltage
- Switchable SHEV safety functions: Fault equal to alarm, SHEV retriggering function and smoke detector remote reset
- Integrated comfort functions for daily ventilation
- Optional connection to rain detectors or wind / rain sensors without an additional module
- Connection of up to 8 SHEV operation panels and 8 fire detectors per line (Only detectors permitted by D+H may be used)
- Min. 72 hr battery backup supply
Performance features:
- A stabilised output voltage is provided by the control panel.
- A maximum of 8 SHEV operation panels and 8 fire detectors can be connected per line.
- The SHEV control panel is tested and certified according to ISO 21927-9, VdS 2581, VdS 2593, VdS 2344, DIN EN 12101-10 and EN 62368-1:2014 + A11:2017 and also fulfils the building authority requirements in accordance with DIN 18232-9.
- Only detectors approved by D+H may be used for the connection of fire detectors.
- An integrated emergency battery power for at least 72 hours is integrated in the housing.
- Switchable SHEV safety functions: Fault equal to alarm.
- SHEV retriggering function, smoke detector remote reset, cable monitoring for short circuit and interruption can be realised with the control unit.
- Connection options for optical and acoustic alarm devices are also available.
- The control panel can be used for daily ventilation, ventilation time can be set on the central unit.
- An optional wind / rain sensor can be connected directly
