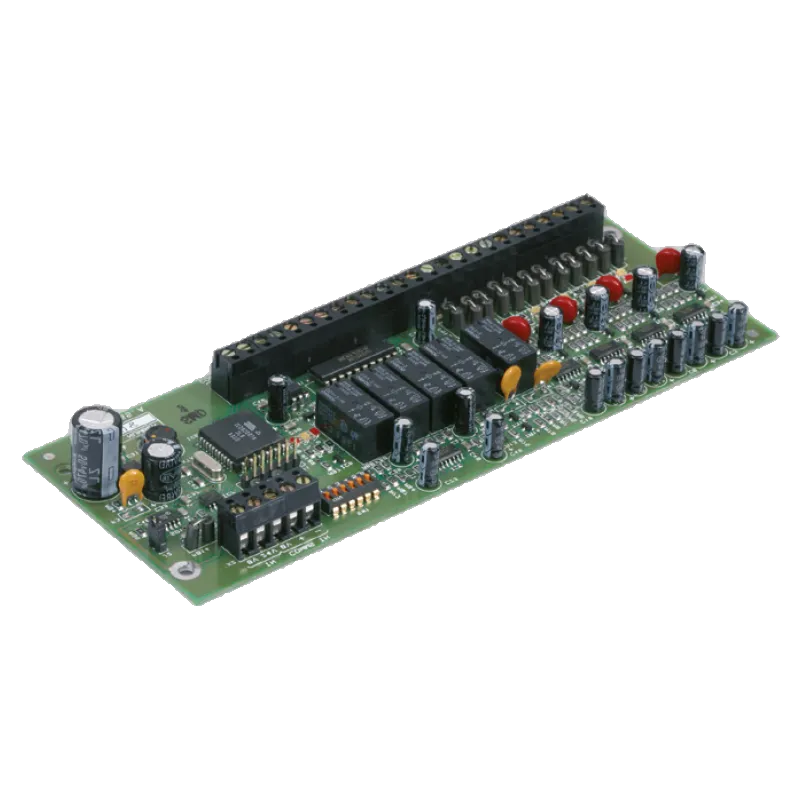

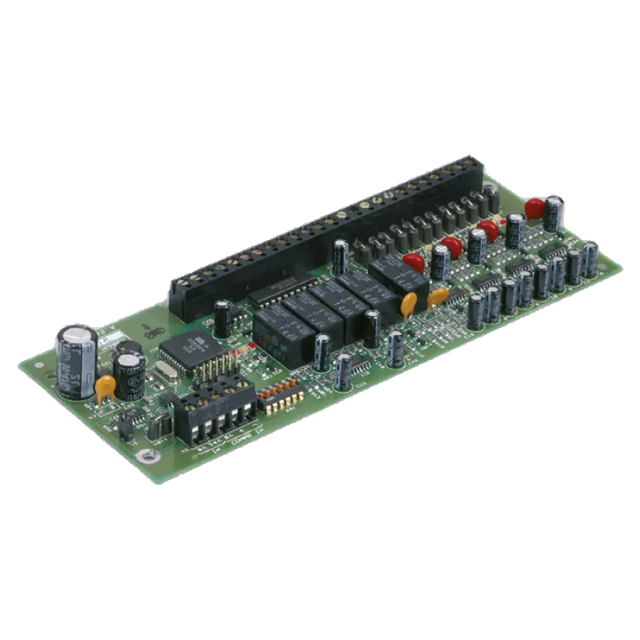

4 Way Conventional Zone Module

To further enhance the versatility of the Syncro and Taktis fire alarm system, four conventional detection circuits can be connected with up to 30 detectors per circuit.

Conventional control panels can be replaced with this simple module and existing conventional systems can be interfaced directly to modern analogue addressable control systems and networks.

A fail safe mode ensures that the detection inputs will still operate the sounder outputs and fire contact if communication to the panel is lost.

Up to 32 of these boards can be connected to the dedicated RS485 communications bus in the control panel giving the capability of up to 128 conventional zones with 64 sounder outputs.
