10.25Amp PSU standard cabinet

10.25Amp PSU standard cabinet - Red
Space for 18Ah batteries, 369mm x 481mm x 110mm

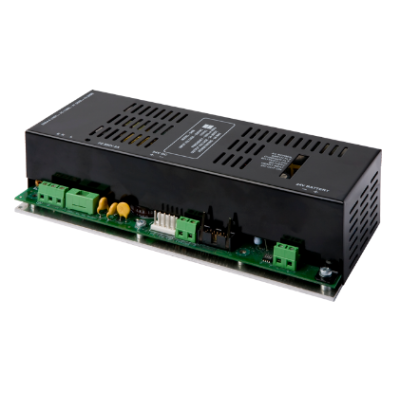

The K8140 and K8141 is UL listed, universal input switching power supply capable of delivering a full 192W of continuous power for fire alarm systems. Suitable for charging a range of sealed lead acid batteries from 7Ah to 40Ah, the K8140 and K8141 power supply features complete monitoring of primary and secondary power sources with fully temperature-compensated battery charging and battery high impedance monitoring.

Key Features

• Space for 18Ah batteries
• Size: 369mm x 481mm x 110mm
• Continuous 8A load output while charging fully depleted batteries
• 120V to 240V AC input
• AC fail monitoring with LED indication and output
• Battery disconnection monitoring with LED indication and output
• Low-battery monitoring with LED indication and output
• Dynamic Earth fault monitoring with LED indication and output
• Deep-Discharge Prevention
• Temperature compensated battery charging
• Battery Boost Circuitry
• EN Approved Power Supplies also available
• UL1481 and UL864 listed
