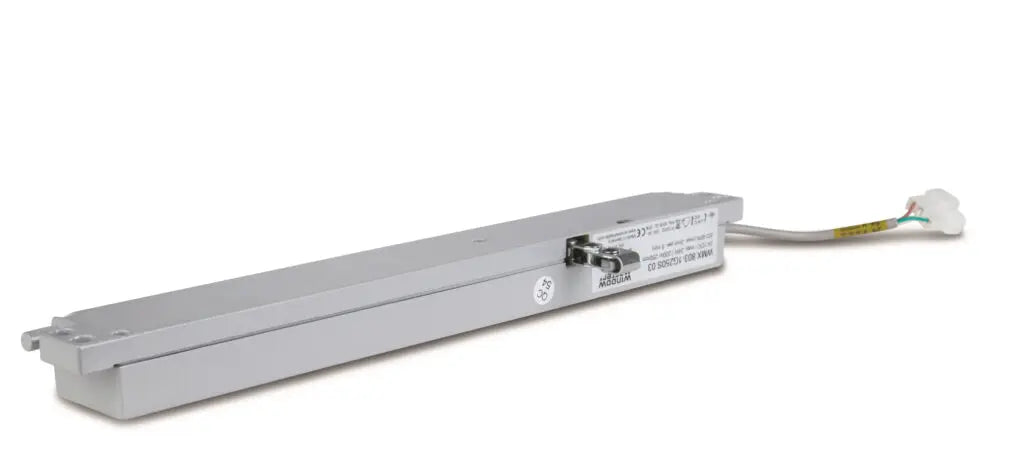

A smoke vent actuator is not just a motor with a chain. In a life-safety application, it has to sit inside a tested vent assembly, work with the control panel and power supply, and still open to its certified fire position when mains power is lost. That is why the real buying criteria are not brand first, but certification route, stroke, force, voltage, mounting geometry, duty cycle, IP rating, and panel compatibility.
Why actuator choice matters
The expensive mistake is thinking you can “match something similar later”. For AOV and NSHEV duty, the actuator and vent must be a tested BS EN 12101-2 assembly. Inbuild’s standards bulletin is explicit: changing the actuator, stroke, brackets or controls can invalidate the Declaration of Performance and the CE/UKCA status of the vent assembly. That makes actuator selection a compliance decision as much as a hardware decision.
In England, the regulatory frame starts with Approved Document B, then narrows into the BS EN 12101 family and BS 7346-8 for planning, design, installation, commissioning and maintenance. In practice, that means the actuator must deliver the fire-open geometry the smoke strategy assumes, not just “open a window somehow”.
Key spec criteria
Certification first. If the opening is part of the smoke-control strategy, default to a certified BS EN 12101-2 route. That is the line between a ventilated window and a smoke ventilator. A comfort-vent actuator may look similar, but it is not automatically acceptable for smoke control unless it is part of the tested assembly.
Stroke length. Stroke is not chosen by habit. It is chosen by the fire-open position needed to achieve the declared free area. Inbuild’s AOV guidance stresses that free area is not the same as nominal frame size; opening angle, bracket geometry and travel all affect the result. In short: specify stroke from required performance, not from catalogue familiarity.
Voltage and fail-safe. For true smoke-vent duty, 24 V DC remains the safest default because smoke-vent panels are typically low-voltage, battery-backed systems designed to operate during mains failure. Fail-safe in this sector is often achieved at system level through the panel, batteries and certified cause-and-effect logic, while stored-energy or spring-open solutions are used where the fire strategy specifically requires them. Do not assume a standard chain drive is internally spring-return unless the vent system certification says so.
Force, torque and mounting. Catalogue Newtons are only half the story. Force must overcome sash weight, hinge geometry, seals, friction, linkage losses and any wind effect the tested assembly is designed to handle. Inbuild’s technical guidance advises checking actuator force against sash weight or damper torque and proving smooth travel on site. Also confirm top-hung or bottom-hung application, surface or profile-integrated mounting, and whether the vent needs twin or synchronised actuators.
Duty cycle and IP rating. A representative D+H CDC smoke-vent drive is rated at 30% duty cycle, so frequent comfort-vent cycling or purge routines must be checked instead of assumed. IP rating matters just as much: a protected internal head may tolerate a lower rating than an exposed rooflight or façade window. That is why comparing IP32 with IP55 is not a cosmetic exercise; it is a site-condition decision.
Panel integration. If you are tying into Actulux controls, size the actuator load against the panel output and battery calculations, and make sure the panel supports the fire inputs, comfort controls and feedback you need. Inbuild’s Actulux SVM Ei 24V 8A page shows the typical requirement set: monitored fire inputs, detector inputs, comfort controls, status indication and relay outputs. The companion Inbuild control-panel bulletin adds the wider compliance layer: EN 12101-10 for power supplies, with BS 7346-8 and accepted EN 12101-9 principles for panel functions and commissioning.
Brand notes and typical models
Across TOPP, D+H and Comunello, the honest differences are not badge prestige but application fit. TOPP offers smoke-vent specific 24 V chain drives with adjustable strokes and strong IP protection; D+H is particularly strong on profile integration, microprocessor control and tandem safety logic; Comunello’s LIWIN ranges stand out where slim aesthetics, higher force and multi-actuator synchronisation matter.
The table below compares typical smoke-vent relevant examples. “Fail-safe approach” refers to the usual system strategy for AOVs: 24 V actuator plus compatible smoke-control panel and standby power, rather than an implied internal spring-return feature.
|
Typical model |
Stroke |
Voltage |
Force |
IP |
Fail-safe approach |
|
TOPP ACK4 RWA |
100–400 mm adjustable |
24 V DC |
300 N |
IP55 |
Use only within the certified EN 12101-2 vent assembly and battery-backed smoke-control system |
|
D+H CDC-0252-0600-1-TMS+ |
600 mm |
24 V DC |
250 N |
IP32 |
Smoke-vent use with certified SHEV assembly; panel/battery resilience; 30% duty cycle |
|
Comunello LIWIN L40 Slim-600 RWA |
600 mm max |
24 V DC RWA |
400 N |
IP55 |
24 V RWA version for certified smoke-and-heat extractor assemblies; sync options for larger vents |
Selection checklist
Before you approve a spec, ask these five questions in this order. That sequence mirrors the standards logic and avoids the common commercial trap of choosing on price before proving compliance.
· Is this opening part of the life-safety smoke-control strategy, or only comfort ventilation? If it is life safety, stay inside the tested BS EN 12101-2 assembly.
· What fire-open position or free area does the strategy require? Set stroke from that requirement, not from a generic “400 mm should do”.
· What force and mounting geometry are needed? Check sash type, hinge side, bracket set, actuator hand and any requirement for synchronised drives.
· What power and controls will run it? Confirm 24 V outputs, battery standby, current draw, interfaces and monitoring with the control panel schedule.
· What evidence will you hand over? At minimum: DoP, classification, certificates, battery calculations, cause-and-effect, commissioning records and maintenance plan.
Procurement tips, testing and maintenance
Procurement is where many actuator specs quietly go wrong. Freeze the exact model code, stroke, finish, handedness, bracket pack, synchronisation accessories, panel current draw and certification route before the PO is raised. That matters because lead times vary by configuration: Inbuild shows some actuator lines on short delivery windows, while other smoke-control components are shown as backordered or on-request. Buy the brackets and controls at the same time, or you risk turning a compliant schedule into a site query.
At commissioning, record opening time to fire-open position, achieved opening, operation on battery during mains failure, feedback signals, fault monitoring and the cause-and-effect matrix. At handover, file the vent DoP, panel certificates, battery sizing evidence, wiring schedules, as-fitted schematics and the maintenance plan. BS 7346-8 underpins this discipline, and Inbuild’s actuator bulletin adds the practical warning that dual-use systems must be maintained to suit both smoke duty and ventilation duty.
If the brief is to buy once, certify once and avoid handover pain, the sensible CTA is simple: browse the Inbuild actuator collection, shortlist only models that fit the certified vent schedule, and cross-check the Relevant UK Standards for Actuators bulletin before issuing the order.
