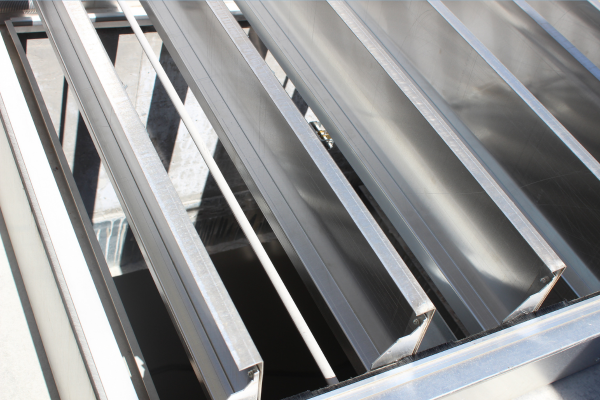

What is an Automatic Opening Vent (AOV)?
An Automatic Opening Vent (AOV) is designed to provide inlet or make-up air and maintain tenable conditions in escape stairs and adjacent common areas by exhausting smoke and heat, while supporting firefighter access and operations. UK statutory guidance (Approved Document B) commonly expects an openable vent at the head/top of the stair with a minimum free area requirement in certain residential layouts, and it sets out how “free area” is measured (aerodynamic or geometric).
Choosing the “right” AOV is therefore not a single-product decision. It is a system decision: vent type and location, free-area evidence, actuation method, control panel and standby power, fire service override, monitoring, and a maintenance regime aligned to smoke-control best practice.
What do AOVs do in the event of a fire?
Smoke ventilation’s primary objective (especially in residential blocks) is to protect the staircase enclosure and, where corridors extend, also protect common circulation areas, so that firefighters can access the fire floor, fight the fire and occupants can evacuate safely.
Natural smoke ventilation works by harnessing thermal buoyancy and wind forces to move smoke through vents. That makes it inherently simple and energy-light, but also sensitive to wind effects, one reason why siting, opening geometry, and reliable actuation matter.
Regulatory context and standards
In England, the Building Regulations fire safety functional requirements are supported by statutory guidance in Approved Document B. For stairwell and common parts smoke control in certain residential arrangements, Approved Document B sets prescriptive recommendations (or alternative routes via engineered design).
Key publications and standards that typically frame smoke ventilation design and product selection include:
· Approved Document B: Fire safety – Volume 1, which includes common-escape-route smoke ventilation guidance for flats/maisonettes and details where vents and smoke detection are expected to actuate them.
· Approved Document B: Fire safety – Volume 2, which provides the definition of “free area” measurement for smoke ventilators (important when you are proving compliance).
· BS EN 12101 series, the core European product/system standards adopted in the UK for smoke and heat control components (including natural smoke and heat exhaust ventilators and power supplies).
· BS 7346-8:2013, which gives UK code-of-practice recommendations for planning, design, installation, commissioning and maintenance of smoke control systems.
· BS 9991:2024 (residential buildings) and BS 9999:2017 (broader building types), which provide risk-based fire safety guidance that interacts with smoke control and firefighting provisions.
· BS 5839-1:2025, relevant where stairwell smoke ventilation is triggered/monitored via fire detection and alarm interfaces in common parts or non-domestic areas.
Two practical implications flow from this:
First, Approved Document B is explicit that, in some residential “small single stair” arrangements, if a lobby is omitted, an AOV with a stated minimum geometric free area is required at the top of the stair and should operate on smoke detection within the stair.
Second, best-practice guidance warns that smoke control must not be designed in isolation: it must complement the building’s fire strategy, and the interaction with other systems must not compromise smoke control performance.
Meeting the minimum free area requirement
The minimum free area expectation and where it appears
Approved Document B Volume 1 includes multiple scenarios where vents of defined minimum free area are expected - most notably the vent at the head/top of the stair, and (where applicable) corridor/lobby vents and smoke shafts.
In the “small single stair building” guidance, it allows either high-level vents at each storey or a single vent at the head of the stair, and it notes that in certain “no lobby” cases an automatic opening vent with a minimum geometric free area is required at the top of the stair and is operated by smoke detection.
Free area is not the same as “frame size”
Approved Document B Volume 2 clarifies that free area must be measured in one of two ways:
· the declared aerodynamic free area (to the relevant EN 12101-2 product standard); or
· the geometric free area: the unobstructed cross-sectional area at the minimum point, measured at right angles to airflow.
This matters because a vent’s visible size (e.g., “1000 × 1000”) can be misleading once you account for frames, louvres, restrictors, actuators, grilles, and the opening angle.
How to think about geometric versus aerodynamic area
A practical way to explain the relationship:
· Geometric free area (Ag) is the physical opening area available for flow at the limiting section.
· Aerodynamic free area (Aa) is the effective flow area, typically lower than Ag because real airflow has losses. Many manufacturer guides express this as:
Aa = Cd × Av, where Cd is a discharge coefficient and Av is the geometric opening area.
Specifier’s rule of thumb: If Building Control (or the fire strategy) asks for “minimum free area”, confirm whether your evidence will be Aa from an EN 12101-2 Declaration of Performance or a geometric measurement per Approved Document B. Then size the vent accordingly.
Power, control and integration options
Power options and what “standby” really means
For electrically actuated AOVs, the backbone is typically a local smoke ventilation control panel providing low-voltage outputs to actuators, with standby power so the vent still opens during a mains failure. Inbuild’s AOV control units, for example, commonly provide 24V DC outputs and include standby batteries with a stated autonomy period.
Power supplies for smoke and heat control systems are addressed by EN 12101-10, a product standard covering requirements and test methods for primary and secondary (including pneumatic) power supplies.
Fail-safe opening and resilience
A life-safety smoke ventilator must open when commanded, and remain effective throughout the event. EN 12101-2 includes requirements around opening and staying in its “fire open” position without reliance on ongoing external energy (depending on design).
This is where fail-safe designs matter:
· Battery standby (panel-based) supports operation during mains loss.
· Spring-open / mechanically assisted vents can provide an opening force independent of sustained electrical power.
· Pneumatic systems can use stored energy (e.g., compressed gas/air arrangements) and EN 12101-10 explicitly covers pneumatic power supplies within its scope.
Control panels, firefighter override and integration with alarms and BMS
Industry best practice expects a smoke ventilation system to include both automatic actuation (typically via smoke detection in common parts for single-stair arrangements) and firefighter override controls. Approved Document B describes smoke vent actuation by smoke detectors in common parts for certain single-stair buildings and allows manual actuation in some multi-stair scenarios.
The Smoke Control Association guidance (published via LABC) adds practical detail: in some configurations, stair ventilation is for firefighting only and can be actuated by a firefighter switch; in other configurations it should be automatic and should include a firefighter override with an on/auto/off function.
For integration, look for panels that support:
· fire alarm inputs (volt-free contacts or monitored interfaces);
· BMS inputs/outputs for status, fault reporting and remote monitoring;
· wind/rain sensor inputs (with fire override priority).
SCA best practice also recommends that monitoring is derived from direct feedback (e.g., end switches) rather than “command sent”, because fire service and facilities teams need to know what actually happened.
Siting, sizing and performance considerations
Where the vent goes and why
Natural smoke ventilation needs an exhaust at the top of the stair because smoke rises and the stair can become the vertical path for smoke movement when doors open. SCA guidance explains that effective natural ventilation needs both inlet air and an exhaust opening, and explicitly states a vent is needed at the head of the stair to vent smoke that enters the stair.
Approved Document B similarly references vents from the top storey/head of stair to the outside as a key element of smoke ventilation provision in common escape routes.
How many vents and what should open
A common design intent is “open the fire floor vent(s) and the stair head vent, keep other floors closed”, to avoid spreading smoke or diluting the extraction effect. This principle is described in Approved Document B and also emphasised in SCA guidance (open only the critical vents; keep others closed even if smoke is detected elsewhere).
Wind, load and opening geometry
Because wind can dominate buoyancy forces, natural systems can be heavily affected by vent location, the opening geometry, and exposure.
This is where certification and performance data become a procurement requirement, not paperwork:
· EN 12101-2 product certification provides a declared aerodynamic free area and classifications relevant to reliability and environmental conditions.
· EN 12101 labelling commonly includes parameters such as aerodynamic free area (Aa), reliability class, temperature classification, and load classes (wind/snow), which help specifiers match a vent to its exposure and duty.
Also watch the real-world constraints flagged by SCA: manually opened windows can be restricted for fall prevention, and restricted opening can make the required free area difficult to achieve.
Actuator selection and weatherproofing
Actuator choice should be driven by: required opening angle/stroke, push/pull forces under wind load, duty cycle, temperature performance, and compatibility with the vent’s EN 12101-2 certification (including opening time expectations).
Weatherproofing and environmental protection matter just as much. controls often sit in dry riser cupboards or lobbies (IP ratings, temperature range), while vents at roof level need robust seals and appropriate wind/rain sensing strategies that do not prevent fire-mode operation.
At Inbuild UK, we provide a comprehensive selection of Automatic Opening Vent (AOV) systems tailored for both residential and commercial stairwell smoke ventilation. Our curated product range includes top-performing models from industry leaders such as Coxdome, DAKEA, Fakro, Powrmatic and Sertus, ensuring quality, reliability, and compliance with UK fire safety standards
