Car Park Ventilation: UK Smoke & CO Regulations Guide

Enclosed car parks present unique fire safety challenges due to the potential build-up of smoke and toxic gases like carbon monoxide (CO). Smoke inhalation is one of the greatest threats to life in a fire, especially in confined spaces such as underground or multi-storey car parks. Thick smoke can also severely hinder firefighting efforts by reducing visibility and slowing firefighters’ progress. An effective smoke ventilation system is therefore critical to clear smoke during and after a fire, helping to:

· Control smoke temperatures (preventing flashover and structural damage)

· Stop smoke spreading between levels of the car park

· Limit fire damage to the car park structure

· Maintain air quality (especially in basements) by removing fumes

By rapidly venting smoke, the system provides clearer, safer escape routes for occupants and better visibility for firefighters to approach within 10 m of the fire’s source. In fact, British Standard BS 7346-7 for covered car parks specifies that an enhanced smoke clearance system should keep firefighters’ approach paths smoke-free up to 10 m from the fire, which is typically achieved by mechanical ventilation delivering high air exchange rates.

Carbon monoxide ventilation is equally important in day-to-day operation. Unlike typical building HVAC that may only run intermittently, car park ventilation systems must run continuously or on-demand daily to purge vehicle exhaust pollutants. Engines produce CO and other noxious fumes that can accumulate in an enclosed garage, creating health hazards. Regulations require that CO concentrations do not exceed safe limits (e.g. 30 ppm over an eight-hour period). Therefore, modern car park ventilation includes environmental control: fans activate when CO levels approach a preset threshold to dilute and remove exhaust fumes. This ensures a safe environment for users at all times, not just during fires.

Finally, legal compliance is a driving factor. UK building regulations mandate specific ventilation measures in enclosed car parks to protect occupants and emergency responders. Failing to provide adequate smoke and fume ventilation can lead to non-compliance with fire safety laws, putting the contractor or developer at risk of legal penalties and, more importantly, endangering lives. In summary, effective smoke and CO ventilation is not just good practice – it is a life-safety necessity and a legal requirement in the UK for enclosed parking facilities.

Regulations and Legal Requirements for Car Park Ventilation

Designing a car park ventilation system in the UK means navigating Approved Document B (Fire Safety) and Approved Document F (Ventilation) of the Building Regulations. These documents outline what is considered “reasonable provision” for fire and air quality safety in typical scenarios. Below is an overview of the key requirements in these regulations, particularly those in ADB Section 11 (special provisions for car parks) and ADF Volume 2 (ventilation for buildings other than dwellings).

Fire Safety Requirements – Approved Document B (ADB)

Approved Document B (Volume 2) provides fire safety guidance for buildings other than dwellings, which includes large enclosed car parks. ADB Section 11 specifically addresses car parks, recognizing that open-air (open-sided) car parks inherently vent smoke and heat more easily than enclosed ones. Open-sided car parks (with extensive permanent openings in the walls) are allowed by ADB to use natural ventilation, as the openness lets smoke dissipate readily. In contrast, enclosed car parks (e.g. underground or those surrounded by walls) must meet stricter ventilation criteria to compensate for the lack of natural airflow.

ADB stipulates a minimum geometric free opening area for natural smoke ventilation in an enclosed car park. Specifically, the total permanent vent openings per parking level should be at least 2.5% of the floor area (1/40th). Furthermore, at least half of that vent area (≈1.25% of floor area) should be split between two opposite walls to encourage cross-ventilation. In practical terms, this means providing large grilles or openings on opposing sides of each parking tier to allow smoke to flow out. These vents can be at high level (e.g. at the ceiling or upper wall) since hot smoke rises.

Despite these ventilation openings, a fire in an enclosed car park can still produce a lot of smoke and heat. ADB emphasizes the importance of ventilation in limiting fire spread and smoke accumulation. Guidance in ADB recommends defining and limiting the fire load in car parks and ensuring they are well-ventilated to reduce the risk of fire spreading from one car to another or one storey to the next. In fact, ventilation is highlighted as the most important factor in car park fire safety – the more exhaust of heat and smoke, the lower the chances of flashover and multi-vehicle involvement.

For basement car parks or those that cannot meet the natural vent area criteria, mechanical smoke ventilation is required. ADB (supported by BS 7346-7) calls for mechanical systems capable of a high exhaust rate during fires – typically at least 10 air changes per hour (ACH) on the fire-affected level. This smoke clearance rate is designed to rapidly remove smoke, control temperature, and maintain tenable conditions for firefighters. Additionally, any mechanical smoke extract equipment (fans, ductwork, etc.) in a car park must withstand high temperatures. Building Regulations require the system to operate at 300 °C for a minimum of 60 minutes (often denoted as an F300 rating), with all ducts and fixings made of materials that won’t melt or collapse under heat (melting point above 800 °C). In practice, specialized high-temperature rated fans (certified to EN 12101-3) are used to meet this requirement.

It is worth noting that ADB Section B5 (which covers access and facilities for the fire service) also implicitly underscores the need for smoke ventilation in car parks. B5 requires that firefighters must be provided with adequate facilities to combat a fire – for basement car parks, this typically means either mechanical smoke extraction or other smoke control measures to clear smoke for firefighting access (in some cases, sprinkler protection is used as an alternative or supplement). While B5 is not explicitly a design formula, compliance with the ventilation rates (6 ACH / 10 ACH) and openings in Section 11 is considered a way to satisfy the intent of B5 for car parks.

Ventilation and Air Quality – Approved Document F (ADF)

Approved Document F (Volume 2) addresses ventilation for non-residential buildings, with a focus on maintaining air quality and preventing excessive pollutant buildup. For enclosed car parks, ADF’s concern is the day-to-day removal of exhaust fumes (carbon monoxide, nitrogen dioxide, etc.) to protect users’ health. The latest ADF (updated in 2021) includes specific standards for air quality in car parks, aligning with workplace exposure limits for CO and other gases.

ADF essentially requires that a car park ventilation system keep CO levels below 30 parts per million (ppm) averaged over 8 hours (this 30 ppm 8-hour limit is derived from health standards). In practical terms, this means ventilation must be capable of preventing CO accumulation beyond this threshold during normal operations. To achieve this, ADF recommends continuous or automatically controlled ventilation with CO monitoring. Carbon monoxide detectors are typically installed throughout the car park to sense rising CO concentrations. When CO exceeds a preset safe level (often around 25–30 ppm), the ventilation fans should activate automatically. This ensures the air is diluted with fresh air before CO reaches dangerous levels.

The performance target for normal day-to-day ventilation is often around 6 air changes per hour (ACH) for the entire car park, which helps keep pollutant levels low. However, ADF suggests a scalable (two-stage or variable) ventilation response based on CO levels: for example, at 30–50 ppm CO, provide ~3 ACH, and if CO rises above 50 ppm, increase ventilation to ~6 ACH. These stepped rates match guidance from industry experts and ensure energy is not wasted – the fans run at higher speed only when needed. The key is that at no point should the average CO level exceed the 30 ppm long-term limit. Additionally, short-term peaks should stay within acceptable limits (for instance, the 15-minute Workplace Exposure Limit for CO is 200 ppm, which effective ventilation will prevent under all normal conditions).

In summary, Approved Document F mandates that enclosed car parks have adequate mechanical or natural ventilation to maintain air quality, and it complements ADB’s fire safety requirements. ADF Volume 2 and ADB together dictate when natural ventilation suffices and when a mechanical system is legally required, which is discussed next.

Natural vs. Mechanical Ventilation: Criteria for Compliance

Whether a car park can be ventilated naturally or requires mechanical assistance depends on how open the structure is. Natural ventilation (using passive airflow through openings) is permissible in many cases for above-ground car parks, but only if certain criteria are met. Approved Document B classifies a car park as “open-sided” if it has abundant permanent openings in the external walls amounting to at least 5% of the floor area (distributed appropriately) – these openings allow wind and thermal buoyancy to clear smoke and fumes without fans. In practical design terms, if each parking level has two opposite walls at least 50% open, or large louvered façades, the car park might be treated as naturally ventilated. For example, ADB and ADF require an aggregate free vent area of at least 1/20th of the floor area (5%) for a naturally ventilated enclosed car park, typically split as 2.5% on opposite walls and another 2.5% distributed (e.g. via openings at roof or evenly around). Car parks meeting these provisions can rely on airflow through these openings to disperse smoke and pollutants.

However, if the minimum free-area openings cannot be achieved, natural ventilation alone is not acceptable. Simply put, an “enclosed” car park with insufficient vent area must use mechanical means. There is a middle ground option known as hybrid ventilation in some cases. Hybrid systems combine natural vents with powered fans (usually small induction or impulse fans) to boost airflow in areas that natural draft might not reach. UK guidance (ADF) suggests that if a car park has at least some permanent openings (e.g. ~2.5% on opposing walls, which is half the full requirement), induction fans can be added to improve circulation and prevent stagnant air pockets. A Computational Fluid Dynamics (CFD) analysis is typically used to verify that a hybrid design will adequately ventilate the entire space. Hybrid ventilation might be suitable for a semi-enclosed car park that has one open side or a partial lower level opening but not enough by itself – the fans provide the extra push to meet performance targets for both smoke clearance and CO removal.

If neither full natural nor a hybrid approach can guarantee ventilation efficacy (for instance, in a fully enclosed basement with minimal openings), a fully mechanical ventilation system is required. In fully enclosed or underground car parks, building regulations require mechanical ventilation for both everyday air quality and smoke control. Mechanical smoke ventilation systems use powered fans (supply and exhaust fans, or jet fan systems) to forcibly extract smoke and fume-laden air and introduce fresh air. These systems are designed to meet the baseline performance: six air changes per hour under normal conditions and ten per hour during a fire. Mechanical systems offer the highest performance in controlling smoke and CO, and thus are mandated when natural means are insufficient. They also operate automatically – for example, CO sensors will trigger fans on and off as needed to maintain safe air quality, and fire alarm signals can send the system into full smoke extract mode instantly.

In summary, natural ventilation is acceptable only for open-sided or extensively ventilated structures, whereas mechanical ventilation (possibly with a hybrid step) is required for enclosed car parks that don’t meet the free-area tests. As a rule of thumb: if your car park doesn’t have about 5% of wall area open to the outside air, you will need to incorporate powered ventilation fans to comply with UK regulations.

Performance Targets and Design Requirements

When designing a car park ventilation system, several performance targets must be satisfied to ensure both regulatory compliance and safety:

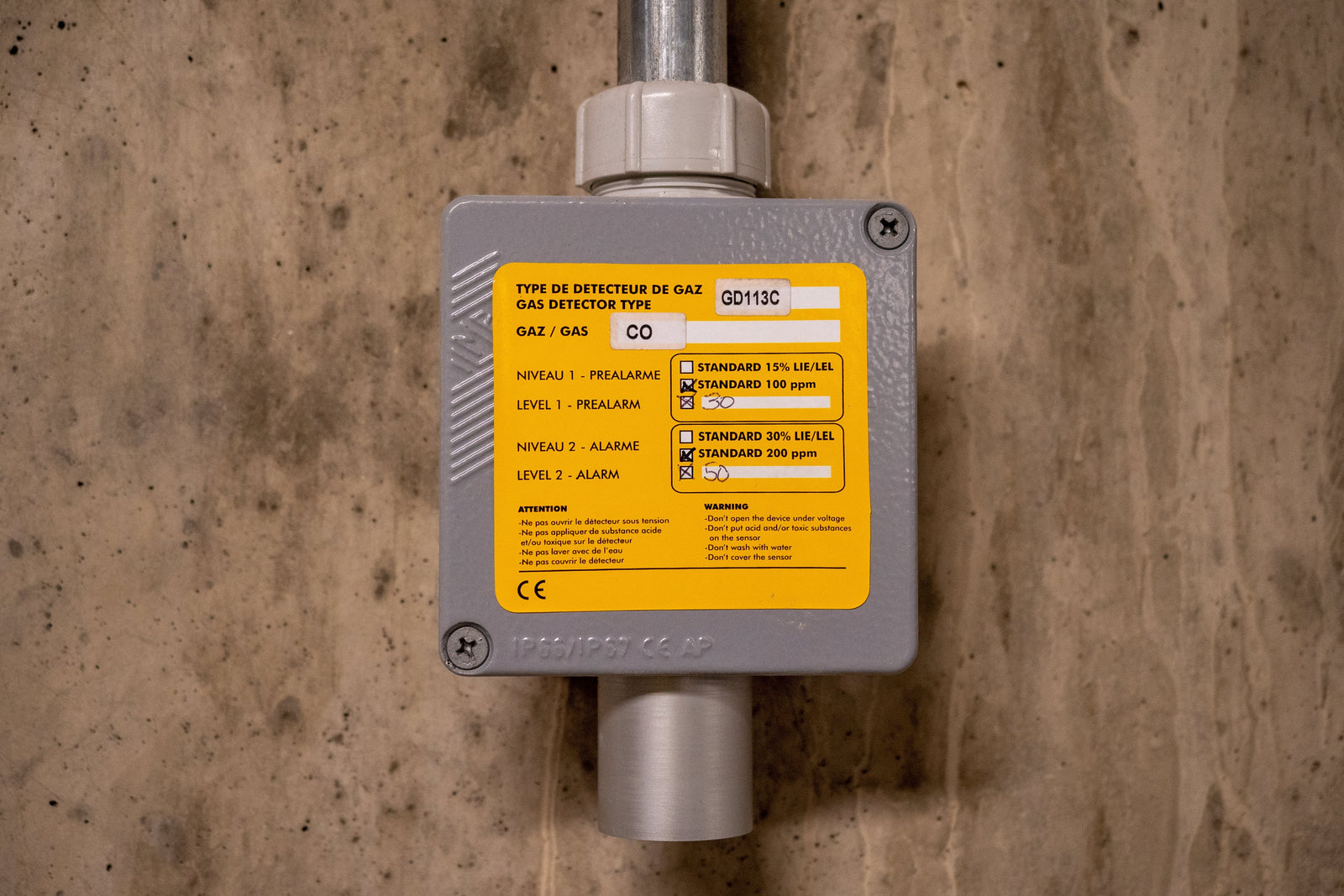

Carbon Monoxide Level Control	The system must keep CO concentrations below the legal limit of 30 ppm (8-hour average) at all times. This typically involves using CO detectors to continuously monitor gas levels and a control system to activate fans when thresholds are approached. Many designs employ a two-stage fan control: for example, run fans at a low speed (providing ~3 ACH) when CO exceeds ~30 ppm, and at high speed (~6 ACH) if CO exceeds ~50 ppm. This modulation balances air quality with energy efficiency, ensuring pollutants are purged but fans aren’t running at full power unnecessarily. The end goal is that even during peak vehicle traffic, CO and other fumes remain well within safe limits (and alarms are triggered long before any dangerous accumulation).
Air Change Rates	Building regulations and fire engineering standards set clear targets for ventilation rates. For everyday ventilation under normal conditions, at least 6 air changes per hour (ACH) throughout the car park is recommended. This rate provides sufficient dilution of exhaust fumes during busy periods. In a fire emergency, the system should ramp up to at least 10 ACH on the affected level to quickly extract smoke and heat. The 10 ACH figure is derived from fire tests and standards to provide effective smoke clearance for firefighting and post-fire smoke purging. It’s important to note that 10 ACH is a minimum – some designs may aim for higher rates or use impulse fans to direct smoke toward exhaust points faster, especially in larger or more complex car parks.
Smoke Clearance and Visibility	The ventilation system is expected to maintain a degree of visibility and tenability during a fire. While car park smoke ventilation in the UK is often defined as “smoke clearance” (not necessarily maintaining a smoke-free layer during evacuation as in a pressurized stair), the system should still prevent conditions from worsening egress. Guidance (such as BS 7346-7) for an “enhanced smoke control system” in car parks calls for maintaining a smoke layer or at least ensuring smoke is drawn away such that visibility is preserved for people near the floor and for firefighters approaching the blaze. Practically, meeting the 10 ACH smoke extract rate and locating exhaust points at high levels achieves this by removing hot smoke and delaying or preventing full smoke logging of the space. After a fire is extinguished, the system should also be capable of purging the remaining smoke within a reasonable time (often designers consider clearing the smoke within 15–30 minutes after activation, although this isn’t strictly coded, it is a performance aspiration).
High-Temperature Endurance	As mentioned under ADB, all equipment used for smoke ventilation must withstand elevated temperatures. Fans used for smoke extract should be certified to EN 12101-3 standard (which typically means rated for 300 °C for 60 min or more). Similarly, motorized dampers, if used, should have appropriate fire ratings, and power cables should be fire-resistant. The goal is to ensure the smoke ventilation system remains operational for long enough during a fire to aid in occupant escape and firefighting.
Reliability and Monitoring	The system should be linked to the building’s fire alarm and management system. Upon detection of fire (via smoke detectors or sprinklers) in the car park, the ventilation should switch to full emergency mode automatically. Backup power (e.g. generator or battery) is usually provided so that fans continue to run during a mains power outage caused by the fire. Additionally, failure of any critical component (fan, damper, control panel) should be signaled via the fire alarm panel so that maintenance can be carried out promptly.

Meeting these targets requires careful calculation and often CFD modeling to predict how smoke and air will move in the space. The design must account for the car park’s volume, geometry, and obstructions (like columns or ramps). For example, dead spots where air might stagnate need to be eliminated by strategic fan placement or additional induction fans. The system must also handle mixed mode scenarios – for instance, a fire occurring during a busy period with many cars (worst-case for both smoke and CO production). In all cases, the performance criteria above serve as the benchmarks for a compliant design.

Practical Design Considerations and Fan Placement Strategies

Designing a compliant smoke and fume ventilation system for an enclosed car park is a complex task that involves both regulatory requirements and practical engineering decisions. Here are some key design considerations and strategies for fan placement:

Layout of Exhaust Points	An effective smoke ventilation design will include high-level exhaust points to extract hot smoke, as well as low-level inlets for replacement air (or usage of ramp openings as air inlets). In a typical mechanical system, large extract fans or ducts are located at or near the ceiling of the car park, often in corners or at the highest point of the ceiling (since smoke rises). These extract points should be arranged to cover the entire floor area – no corner of the car park should be too far from an extract so that smoke doesn’t collect there. In multi-level car parks, each level might have its own extract fan(s) or connect to a common vertical smoke shaft duct.
Use of Impulse/Jet Fans vs. Ducted Systems	Modern car park ventilation often favors a jet fan (impulse fan) system over a fully ducted system, especially in large open-floor car parks. Jet fans are ceiling-mounted units that thrust air horizontally within the car park, directing smoke and fumes toward the central extract points without the need for extensive ductwork. These fans create a directional airflow pattern that “sweeps” the contaminants along. The advantage is a more open ceiling (improved headroom and fewer obstructions), easier installation, and lower maintenance since ducts can collect debris and require cleaning. Fan placement in a jet fan system is critical: units are typically spaced throughout the parking area such that their coverage cones overlap and ensure uniform air movement. They are often placed to cover dead zones behind columns or under ramps. Placement is verified via CFD airflow modeling to ensure no stagnant pockets of smoke remain. Jet fans should also be oriented to avoid short-circuiting (blowing directly from an intake to an exhaust without sweeping the far areas). In long narrow car parks, fans may be aligned in a linear fashion creating a flow from one end to the other; in broader car parks, a grid or distributed pattern may be used.
Natural Air Inlets	Even in a mechanical system, having natural openings (like the vehicle ramp, stair cores with grilles, or perimeter openings) for fresh air inlet can greatly assist performance. For example, an access ramp can serve as a low-level air inlet while the fans pull smoke out elsewhere. Designers ensure that inlets are not obstructed and ideally are positioned opposite to the exhaust locations to promote a sweeping flow through the space.
Fan Zoning and Control	The ventilation system may be divided into zones, especially in larger car parks or ones with complex shapes. Zoning allows a more targeted response – for instance, only the zone in alarm (where the fire is detected) goes to full 10 ACH, while other levels might stay at lower ventilation unless smoke migrates. This can help manage power consumption and noise. CO detection can also be zoned so that local fans boost only where needed. A central control panel (often a dedicated ventilation or smoke control panel) will receive signals from CO sensors and fire alarm devices, and then activate the appropriate fans at the required speed. Automatic control is crucial: in a fire, fans should start quickly without needing manual intervention, and manual overrides (firefighter’s switches) are typically installed to allow the Fire Brigade to run the system as needed once on scene.
Noise and Vibration	Car park fans, especially large extract fans or multiple jet fans, can generate significant noise. While this is a secondary concern compared to safety, good design will include silencers on large fans and vibration isolation mounts, to reduce noise transmitted to adjacent occupancies (e.g. if there are offices or residences above the car park). Jet fans often have integrated silencers or are selected for low noise output given that they operate regularly for pollution control.
Maintenance Access	All equipment should be placed such that maintenance personnel can reach it safely. This includes providing safe access to fans (which are often ceiling-mounted – sometimes monorails or catwalks are needed for servicing jet fans), and ensuring that any smoke dampers or sensors are reachable. Regular maintenance is important because a failure of the smoke ventilation system can have life-safety consequences. Thus, designers also incorporate system monitoring – fans with failure indication, pressure sensors to confirm operation, etc., typically tied into the building management or fire alarm system for alerts.

By considering these factors, the designer can create a robust ventilation strategy that not only meets the letter of the regulations but also functions effectively in real-world scenarios. The ultimate aim is a system that is “invisible” during normal operation (keeping air fresh without drawing attention) and yet highly effective during an emergency, clearing smoke to preserve life and aid firefighting.

Solutions and Products for Compliance

Implementing a compliant car park ventilation system often involves specialised equipment. Inbuild UK offers a range of products tailored to meet the performance and regulatory demands discussed above. These include high-temperature rated jet fans for smoke and fume control, as well as detection and control devices to automate the system. Below, we highlight some relevant products and their key features:

Ensuring that an enclosed car park is safe and compliant involves a careful balance of regulatory knowledge and engineering practice. By understanding the requirements of Approved Document B (fire safety) and Approved Document F (ventilation), contractors and developers can implement systems that protect users from the dual threats of fire smoke and vehicle exhaust buildup.
