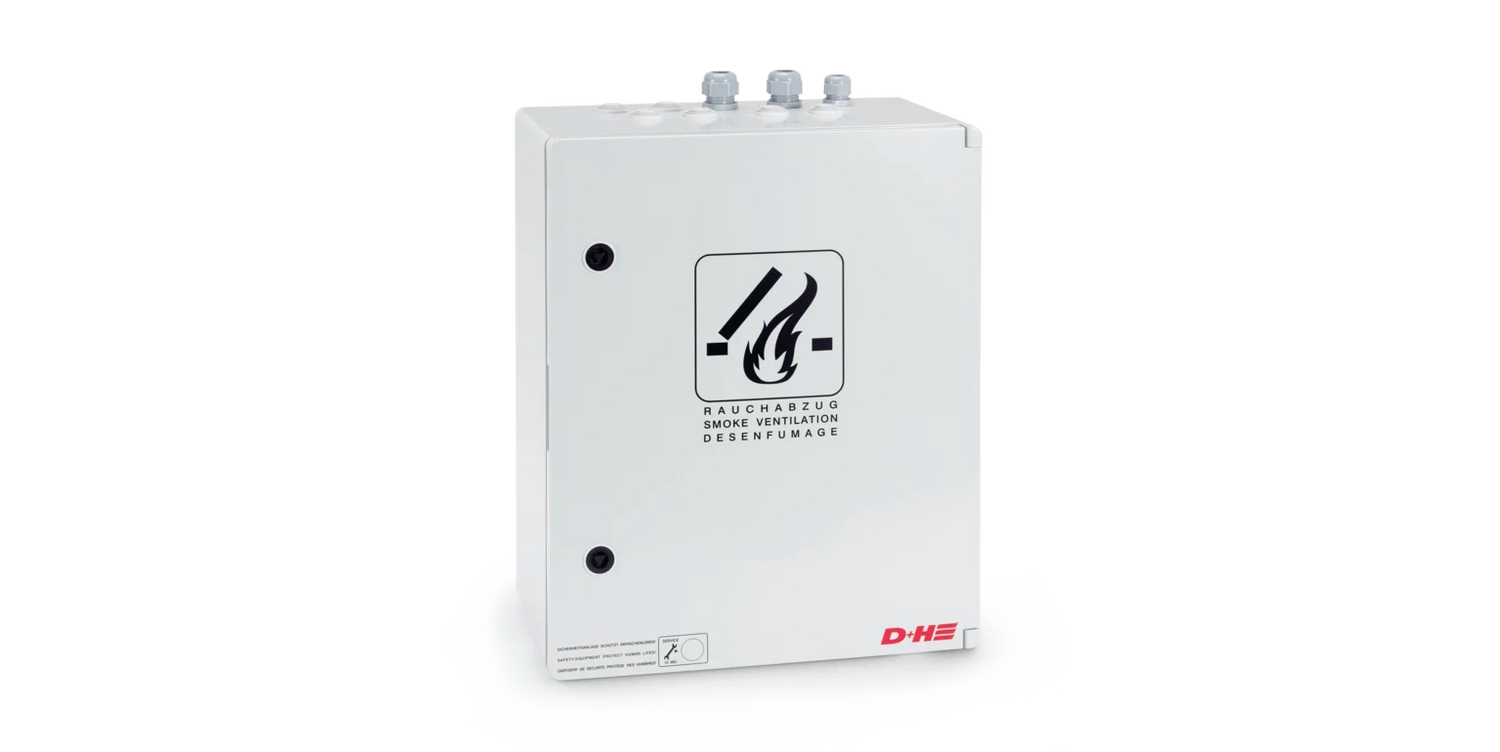

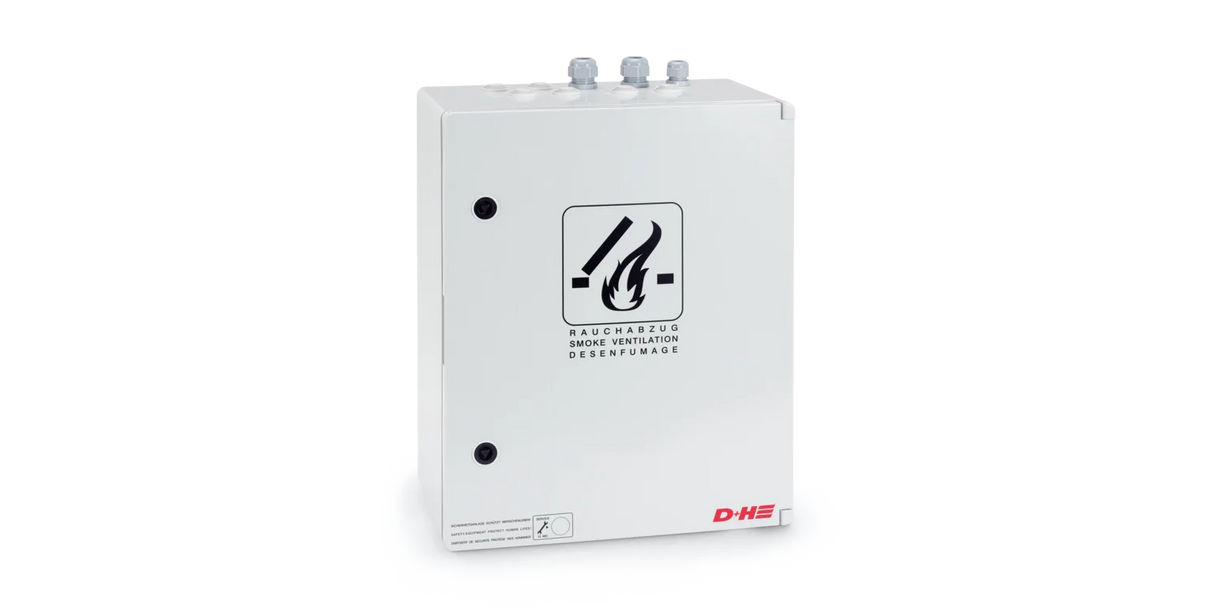

20A Two Zone Smoke Vent Control Panel

• Compact SHEV control panel especially for high-current applications
• Up to 20 A current consumption per group
• Up to 16 SHEV control panels can be interconnected via the main/sub network (not with design CPS-P1-xxx-xxxx-B)
• Stabilised output voltage
• Configuration can be carried out without software via DIP switches
• Additional functions via the integrated expansion interface (not with design CPS-P1-xxx-xxxx-B)
• Connection of up to 8 SHEV operation panels and 14 fire detectors per line (Only detectors permitted by D+H may be used)
• Min. 72 hr battery backup supply

 Technical data:

• Supply: 230 V AC / 50 Hz / 550 VA
• Stand-by power: < 5 W
• Output: 24 V DC / 20 A
• Ripple: < 0,5 Vss
• Mode of operation monitoring: Continuous duty
• Mode of operation alarm / ventilation: Short-time duty 30 % duty cycle
• Type of protection: IP 54
• Temperature range: -5 °C … +40 °C
• Line / Group: 2 / 2
• Housing: Plastic
• Colour: Light grey (~ RAL 7035)
• W x H x D : 400 x 500 x 245 mm
• Battery type: Typ 4 (2x)
• Weight: 7.35 kg
