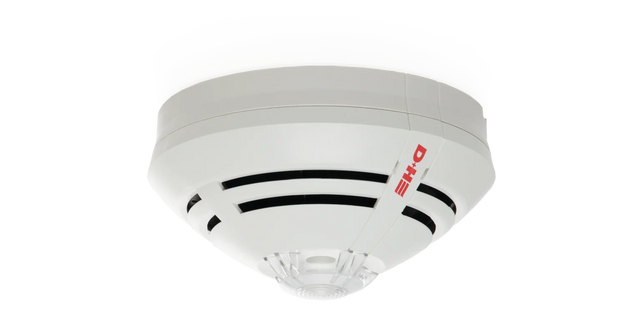

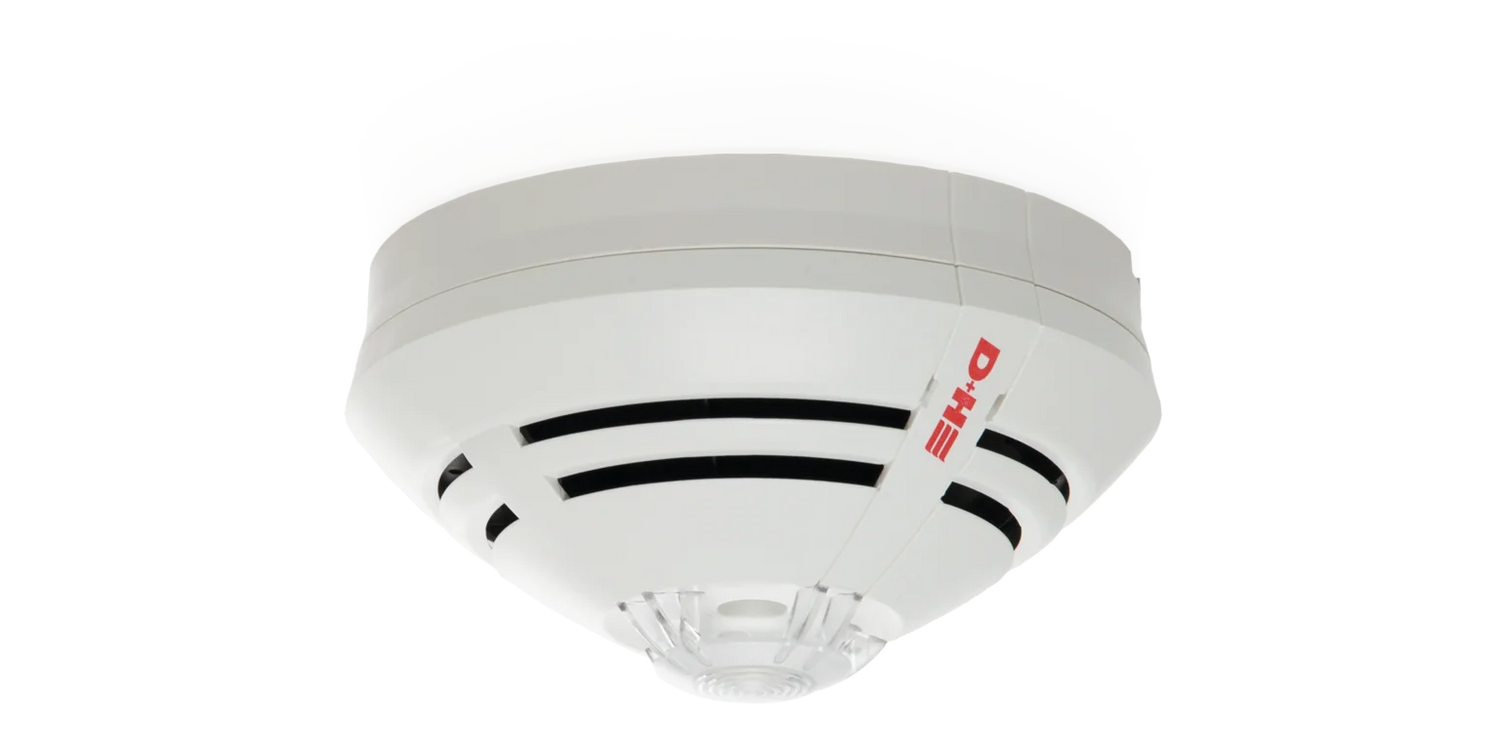

Optical Smoke Detector

• Optical fire detector works on the scattered light principle
• Automatic self‑monitoring of function and state
• Individual display for alarm
• Resting value tracking
• Easy installation using removable base
• VdS approval number: G 213066

Technical data:

• Nominal voltage: 24 V DC
• Monitoring area: 110 m²
• Monitoring hight: 12 m
• Air speed: 0 - 25.4 m/s
• Type of protection: IP 40
• Temperature range: -20 °C … +72 °C
• Air humidity: ≤ 95 %
• Housing: ABS
• Colour: White (~ RAL 9010)
• Diameter : 117 mm
• Connection: Terminal 0,6 mm Ø ... 2 mm²
• Specification: EN 54-7
• VdS approval number: G 213066
• Weight: 0.11 kg
• Art. No.: 70.300.22
