Roof Vents

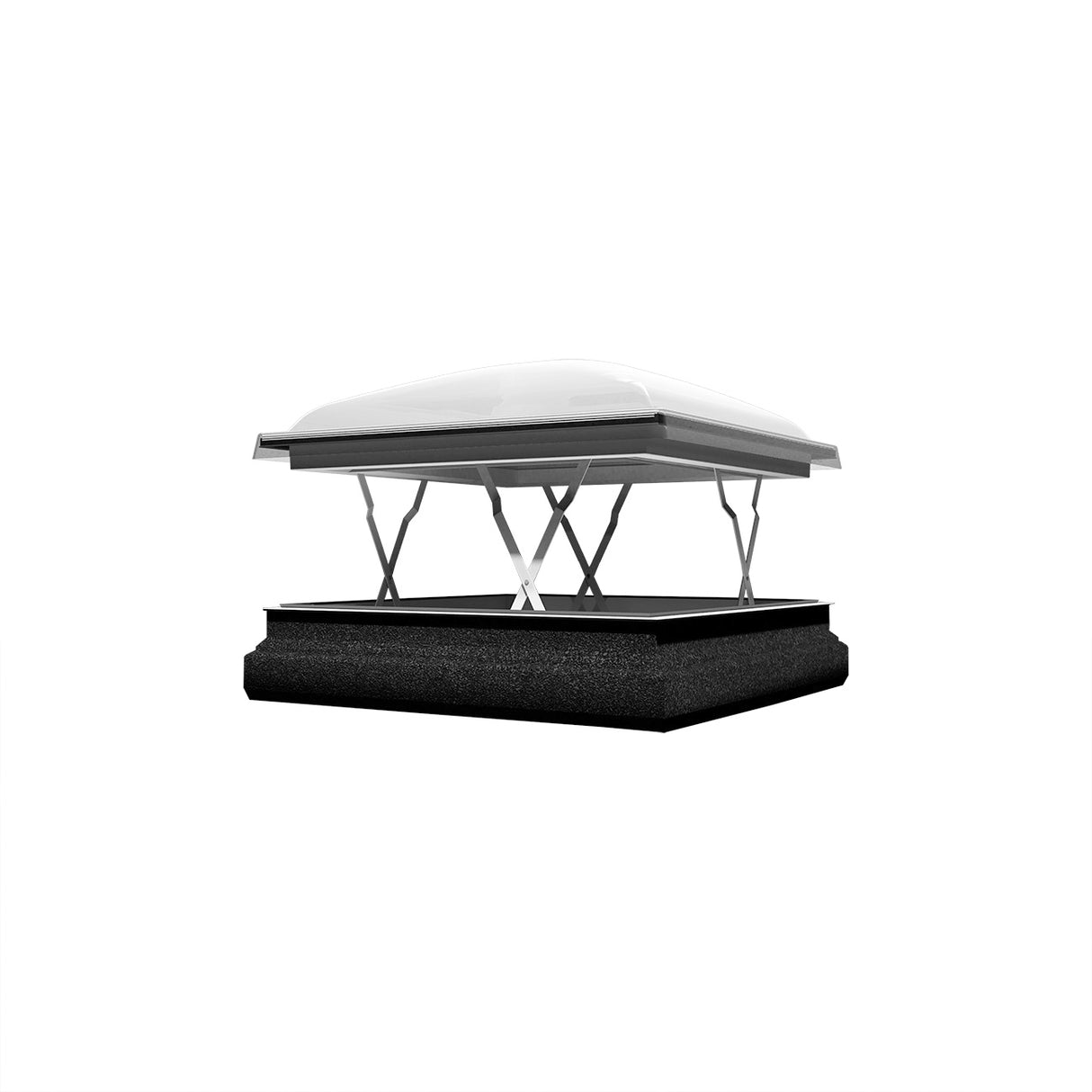

Fakro Smoke Ventilation Domed Roof Window (WINDOW ONLY)

Product Code: FAKRO-80ER10
£2,928.00 excl. VAT
Size

15 - 20 Days Delivery

Description

Smoke Ventilation Domed Roof Window (DSC-C)

DSC-C2 P2 Laminated Double Glazed + Clear Polycarbonate Dome Flat Roof Smoke Ventilation Roof Window.
Natural Smoke and Heat Exhaust Ventilator equipped with 2 x Actuators, Glass construction from outside to inside = Clear Polycarbonate Dome-4H-Tg15Ar-33.2T - The outer pane is a 4mm toughened glass, 15mm warm TGI spacer filled with inert Argon gas.

The 6.8mm internal pane is an anti-burglary class of laminate 33.2 (class P2A, EN 356,1(B)1 wg EN 12600), complete with a low emission coating. Producing a U-Value of 1.0W/m²K (glass U-Value 1.1W/m²K). (Based on the 120x120 window).

Acoustic rating 35dB (-1.-3). New DS_ smoke ventilation windows are constructed using the same multi-chamber PVC profiles as standard flat roof windows. The frame is mounted on an additional XRD base which constitutes an integral part of the window.

The total base height (XRD + frame) is 30cm.

The main difference between new smoke ventilation windows and standard flat roof windows is scissors opening system which allows to raise the sash parallel to the base to a height of 50cm.

The internal finish is RAL9010 White PVC.

Elements of the sash lifting mechanism invisible once the window is closed.

In addition to smoke ventilation function and high thermal insulation and mechanical performance typical for standard flat roof windows, the DS_ windows make it possible to ventilate the room (by means of smoke ventilation unit = LP 1 Switch and also a rain sensor if required which are purchased separately). DS_ windows meet the requirements of EN 12101-2 standard on smoke ventilation inside the building. Can be used on roofs with pitches between 0-15°.

Our DSC-C2 P2 size 100 x 100 achieves a 0.49m2 Active Aerodynamic Ventilation Area and 1.01m² Geometric Ventilation Area.

Our DSC-C2 P2 size 120 X 120 achieves a 0.57m2 Active Aerodynamic Ventilation Area and 1.33m² Geometric Ventilation Area.

Do you need a flashing kit? Click here

{"id":14821607932290,"title":"Fakro Smoke Ventilation Domed Roof Window (WINDOW ONLY)","handle":"smoke-ventilation-domed-roof-window-kit-dsc-c","description":"\u003cp\u003eSmoke Ventilation Domed Roof Window (DSC-C)\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eDSC-C2 P2 Laminated Double Glazed + Clear Polycarbonate Dome Flat Roof Smoke Ventilation Roof Window. \u003cbr\u003eNatural Smoke and Heat Exhaust Ventilator equipped with 2 x Actuators, Glass construction from outside to inside = Clear Polycarbonate Dome-4H-Tg15Ar-33.2T - The outer pane is a 4mm toughened glass, 15mm warm TGI spacer filled with inert Argon gas.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe 6.8mm internal pane is an anti-burglary class of laminate 33.2 (class P2A, EN 356,1(B)1 wg EN 12600), complete with a low emission coating. Producing a U-Value of 1.0W\/m²K (glass U-Value 1.1W\/m²K). (Based on the 120x120 window). \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eAcoustic rating 35dB (-1.-3). New DS_ smoke ventilation windows are constructed using the same multi-chamber PVC profiles as standard flat roof windows. The frame is mounted on an additional XRD base which constitutes an integral part of the window. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe total base height (XRD + frame) is 30cm. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe main difference between new smoke ventilation windows and standard flat roof windows is scissors opening system which allows to raise the sash parallel to the base to a height of 50cm. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe internal finish is RAL9010 White PVC.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eElements of the sash lifting mechanism invisible once the window is closed. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eIn addition to smoke ventilation function and high thermal insulation and mechanical performance typical for standard flat roof windows, the DS_ windows make it possible to ventilate the room (by means of smoke ventilation unit = LP 1 Switch and also a rain sensor if required which are purchased separately). DS_ windows meet the requirements of EN 12101-2 standard on smoke ventilation inside the building. Can be used on roofs with pitches between 0-15°. \u003c\/span\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eOur DSC-C2 P2 size 100 x 100 achieves a 0.49m2 Active Aerodynamic Ventilation Area and 1.01m² Geometric Ventilation Area. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eOur DSC-C2 P2 size 120 X 120 achieves a 0.57m2 Active Aerodynamic Ventilation Area and 1.33m² Geometric Ventilation Area. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eDo you need a flashing kit? Click \u003ca href=\"https:\/\/www.inbuilduk.com\/collections\/flashing-kits\"\u003ehere \u003c\/a\u003e\u003c\/p\u003e","published_at":"2025-06-04T14:22:25+01:00","created_at":"2024-11-12T14:28:14+00:00","vendor":"Fakro","type":"Roof Vents","tags":["120cm x 120cm","AOV smoke vent","Commercial","FAKRO","Rooflight","Smoke Ventilation","Type: Residential","Vent \/ AOV"],"price":292800,"price_min":292800,"price_max":351360,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55258023100802,"title":"100cm x 100cm","option1":"100cm x 100cm","option2":null,"option3":null,"sku":"FAKRO-80ER10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fakro Smoke Ventilation Domed Roof Window (WINDOW ONLY) - 100cm x 100cm","public_title":"100cm x 100cm","options":["100cm x 100cm"],"price":292800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55258023133570,"title":"120cm x 120cm","option1":"120cm x 120cm","option2":null,"option3":null,"sku":"FAKRO-80ER08","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fakro Smoke Ventilation Domed Roof Window (WINDOW ONLY) - 120cm x 120cm","public_title":"120cm x 120cm","options":["120cm x 120cm"],"price":351360,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/80ER08KIT-DSC-C_www.jpg?v=1732532647","\/\/www.inbuilduk.com\/cdn\/shop\/files\/FAKRO_12_Reasons_Graphic_FINAL_page-0001_996bc54a-15cc-46c4-8016-22702dce2528.jpg?v=1753965040"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/80ER08KIT-DSC-C_www.jpg?v=1732532647","options":["Size"],"media":[{"alt":null,"id":63436674204034,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/80ER08KIT-DSC-C_www.jpg?v=1732532647"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/80ER08KIT-DSC-C_www.jpg?v=1732532647","width":1300},{"alt":null,"id":65194348806530,"position":2,"preview_image":{"aspect_ratio":0.708,"height":1754,"width":1241,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/FAKRO_12_Reasons_Graphic_FINAL_page-0001_996bc54a-15cc-46c4-8016-22702dce2528.jpg?v=1753965040"},"aspect_ratio":0.708,"height":1754,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/FAKRO_12_Reasons_Graphic_FINAL_page-0001_996bc54a-15cc-46c4-8016-22702dce2528.jpg?v=1753965040","width":1241}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eSmoke Ventilation Domed Roof Window (DSC-C)\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eDSC-C2 P2 Laminated Double Glazed + Clear Polycarbonate Dome Flat Roof Smoke Ventilation Roof Window. \u003cbr\u003eNatural Smoke and Heat Exhaust Ventilator equipped with 2 x Actuators, Glass construction from outside to inside = Clear Polycarbonate Dome-4H-Tg15Ar-33.2T - The outer pane is a 4mm toughened glass, 15mm warm TGI spacer filled with inert Argon gas.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe 6.8mm internal pane is an anti-burglary class of laminate 33.2 (class P2A, EN 356,1(B)1 wg EN 12600), complete with a low emission coating. Producing a U-Value of 1.0W\/m²K (glass U-Value 1.1W\/m²K). (Based on the 120x120 window). \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eAcoustic rating 35dB (-1.-3). New DS_ smoke ventilation windows are constructed using the same multi-chamber PVC profiles as standard flat roof windows. The frame is mounted on an additional XRD base which constitutes an integral part of the window. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe total base height (XRD + frame) is 30cm. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe main difference between new smoke ventilation windows and standard flat roof windows is scissors opening system which allows to raise the sash parallel to the base to a height of 50cm. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eThe internal finish is RAL9010 White PVC.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eElements of the sash lifting mechanism invisible once the window is closed. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eIn addition to smoke ventilation function and high thermal insulation and mechanical performance typical for standard flat roof windows, the DS_ windows make it possible to ventilate the room (by means of smoke ventilation unit = LP 1 Switch and also a rain sensor if required which are purchased separately). DS_ windows meet the requirements of EN 12101-2 standard on smoke ventilation inside the building. Can be used on roofs with pitches between 0-15°. \u003c\/span\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eOur DSC-C2 P2 size 100 x 100 achieves a 0.49m2 Active Aerodynamic Ventilation Area and 1.01m² Geometric Ventilation Area. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 10.0pt; font-family: 'Arial',sans-serif; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-GB; mso-fareast-language: EN-GB; mso-bidi-language: AR-SA;\"\u003eOur DSC-C2 P2 size 120 X 120 achieves a 0.57m2 Active Aerodynamic Ventilation Area and 1.33m² Geometric Ventilation Area. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003eDo you need a flashing kit? Click \u003ca href=\"https:\/\/www.inbuilduk.com\/collections\/flashing-kits\"\u003ehere \u003c\/a\u003e\u003c\/p\u003e"}
Fakro

Fakro Smoke Ventilation Domed Roof Window (WINDOW ONLY)

From £2,928.00 excl. VAT

Smoke Ventilation Domed Roof Window (DSC-C)

DSC-C2 P2 Laminated Double Glazed + Clear Polycarbonate Dome Flat Roof Smoke Ventilation Roof Window.
Natural Smoke and Heat Exhaust Ventilator equipped with 2 x Actuators, Glass construction from outside to inside = Clear Polycarbonate Dome-4H-Tg15Ar-33.2T - The outer pane is a 4mm toughened glass, 15mm warm TGI spacer filled with inert Argon gas.

The 6.8mm internal pane is an anti-burglary class of laminate 33.2 (class P2A, EN 356,1(B)1 wg EN 12600), complete with a low emission coating. Producing a U-Value of 1.0W/m²K (glass U-Value 1.1W/m²K). (Based on the 120x120 window).

Acoustic rating 35dB (-1.-3). New DS_ smoke ventilation windows are constructed using the same multi-chamber PVC profiles as standard flat roof windows. The frame is mounted on an additional XRD base which constitutes an integral part of the window.

The total base height (XRD + frame) is 30cm.

The main difference between new smoke ventilation windows and standard flat roof windows is scissors opening system which allows to raise the sash parallel to the base to a height of 50cm.

The internal finish is RAL9010 White PVC.

Elements of the sash lifting mechanism invisible once the window is closed.

In addition to smoke ventilation function and high thermal insulation and mechanical performance typical for standard flat roof windows, the DS_ windows make it possible to ventilate the room (by means of smoke ventilation unit = LP 1 Switch and also a rain sensor if required which are purchased separately). DS_ windows meet the requirements of EN 12101-2 standard on smoke ventilation inside the building. Can be used on roofs with pitches between 0-15°.

Our DSC-C2 P2 size 100 x 100 achieves a 0.49m2 Active Aerodynamic Ventilation Area and 1.01m² Geometric Ventilation Area.

Our DSC-C2 P2 size 120 X 120 achieves a 0.57m2 Active Aerodynamic Ventilation Area and 1.33m² Geometric Ventilation Area.

Do you need a flashing kit? Click here

Size

  • 100cm x 100cm
  • 120cm x 120cm
