Smoke Vents

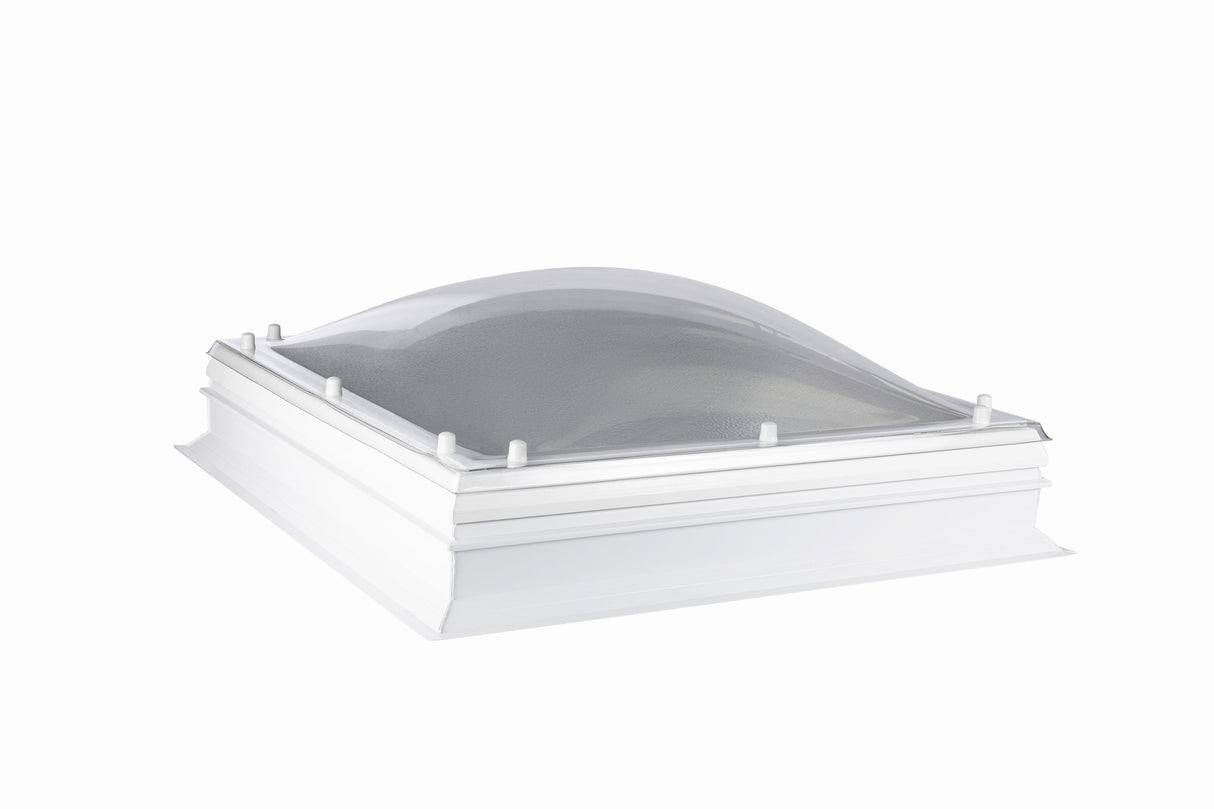

Coxdome AOV SHEV Polycarbonate - Dome

Product Code: CAOV75225DD
£1,263.48 excl. VAT
Sizes
Glazing
Finish

5 - 7 Days Delivery

Description

COXDOME SHEV (AOV) systems provide a smoke and heat exhaust ventilation solution for all commercial and residential applications. Supplied factory assembled and factory tested, all products are certified to EN12101-2. SHEV (AOV) systems not only help to provide smoke extraction in the event of a fire, but they also provide day-to-day controllable ventilation.

Available with clear or obscure polycarbonate glazing to enhance the building’s natural daylight, or with a fully insulated aluminium solid cover.

The COXDOME SHEV (AOV) range is available in a wide range of sizes and complies with the latest building regulations on fire safety and can be integrated into any Building Management System (BMS). Linked to a central control panel, control panels can be triggered from either manual override switches local to the ventilator and the ground floor by dedicated smoke detectors, or by interfacing with a third-party smoke detection/fire alarm system . The BMS is complete with battery backup in case of mains failure.

For product information, lead times and pricing of Vertical Upstands, please contact the customer service team.

Key Benefits:

  • Smoke and heat exhaust ventilation solution for all commercial and residential applications
  • Supplied factory assembled and factory tested
  • Provides smoke extraction in the event of a fire

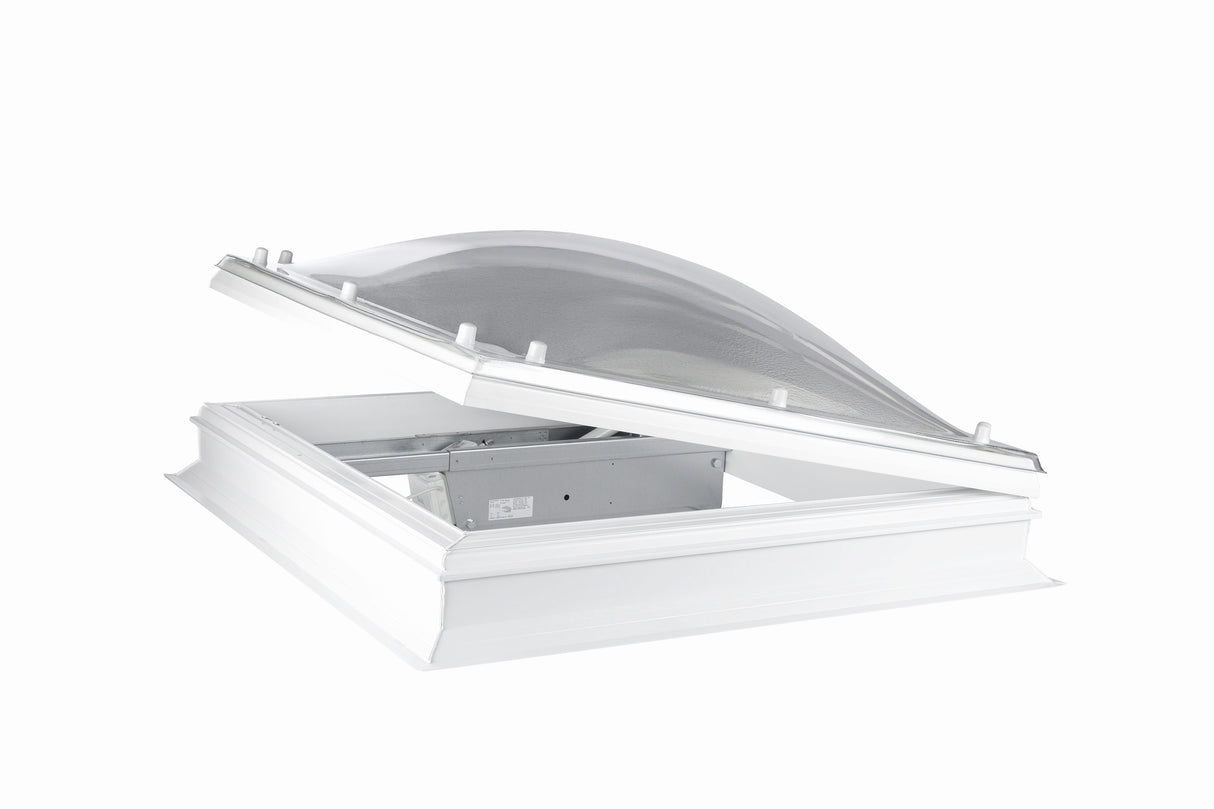

  • The motor can be offset to provide access as well as smoke ventilation
  • Provide day-to-day controllable ventilation
  • Complies with the latest building regulations on fire safety
  • Can be integrated into any Building Management System
  • Central control panel complete with battery backup in case of mains failure
  • Available with clear or obscure polycarbonate glazing to enhance the building’s natural daylight
  • Suitable for installation on a roof pitch between 0° and 15°



Performance:
  • EN12101-2 certified
  • Available from 700mm to 1200mm and 700mm to 2250m
  • Opens to 140º
  • Galvanised steel mechanism
  • Glazed polycarbonate or solid aluminium cover
  • Extremely low noise level
  • Compact 24V motor unit
  • Aerodynamic free area up to Aa0.68m2
  • Snow load up to 600N/m²
  • Wind load up to 1500N/m²
  • Low ambient temperature T(-15°)
  • Heat exposure B300
  • Reaction to Fire Class E
  • Opening speed <60 secs

*More sizes and glazing available please call for pricing

Frequently Asked Questions:

Are casement or domed roof vents guaranteed against wind damage when left in the open position?

Casement or domed roof vents, when left in the open position, are guaranteed to withstand wind speeds up to 20 mph (10 m/s). However, any wind speeds exceeding this threshold may cause damage, which would not be covered under the manufacturer's warranty. As an alternative, we recommend using a louvered roof vent with an integrated wind shield for enhanced protection.

Please note, all vents will come with the actuator centrally located, if you wish for the actuator to be offset to the side for access please fill out the contact form within 24 hours of your purchase with your order number and state the actuator is to be offset.

Download Data Sheets

Click the PDF to download each individual data sheet.

{"id":14690438775170,"title":"Coxdome AOV SHEV Polycarbonate - Dome","handle":"coxdome-aov-fixed-polycarbonate-dome","description":"\u003cdiv data-halign=\"left\" data-hspacer=\"line_only\" class=\"uvc-heading ult-adjust-bottom-margin ultimate-heading-4862672b629635923 uvc-9687 accent-border-color\" id=\"ultimate-heading-4862672b629635923\"\u003e\n\u003cdiv data-responsive-json-new='{\"font-size\":\"\",\"line-height\":\"desktop:28px;\"}' data-ultimate-target=\".uvc-heading.ultimate-heading-4862672b629635923 .uvc-sub-heading\" class=\"uvc-sub-heading ult-responsive\"\u003eCOXDOME SHEV (AOV) systems provide a smoke and heat exhaust ventilation solution for all commercial and residential applications. Supplied factory assembled and factory tested, all products are certified to EN12101-2. SHEV (AOV) systems not only help to provide smoke extraction in the event of a fire, but they also provide day-to-day controllable ventilation.\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"vc_empty_space\"\u003e\n\u003cspan class=\"vc_empty_space_inner\"\u003e\u003c\/span\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"wpb_text_column wpb_content_element\"\u003e\n\u003cdiv class=\"wpb_wrapper\"\u003e\n\u003cp\u003eAvailable with clear or obscure polycarbonate glazing to enhance the building’s natural daylight, or with a fully insulated aluminium solid cover.\u003c\/p\u003e\n\u003cp\u003eThe COXDOME SHEV (AOV) range is available in a wide range of sizes and complies with the latest building regulations on fire safety and can be integrated into any Building Management System (BMS). Linked to a central control panel, control panels can be triggered from either manual override switches local to the ventilator and the ground floor by dedicated smoke detectors, or by interfacing with a third-party smoke detection\/fire alarm system . The BMS is complete with battery backup in case of mains failure.\u003c\/p\u003e\n\u003cp\u003eFor product information, lead times and pricing of Vertical Upstands, please contact the customer service team.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"wpb_text_column wpb_content_element\"\u003e\n\u003cdiv class=\"wpb_wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKey Benefits:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eSmoke and heat exhaust ventilation solution for all commercial and residential applications\u003c\/li\u003e\n\u003cli\u003eSupplied factory assembled and factory tested\u003c\/li\u003e\n\u003cli\u003eProvides smoke extraction in the event of a fire\u003c\/li\u003e\n\u003cli\u003eThe motor can be offset to provide access as well as smoke ventilation\u003c\/li\u003e\n\u003cli\u003eProvide day-to-day controllable ventilation\u003c\/li\u003e\n\u003cli\u003eComplies with the latest building regulations on fire safety\u003c\/li\u003e\n\u003cli\u003eCan be integrated into any Building Management System\u003c\/li\u003e\n\u003cli\u003eCentral control panel complete with battery backup in case of mains failure\u003c\/li\u003e\n\u003cli\u003eAvailable with clear or obscure polycarbonate glazing to enhance the building’s natural daylight\u003c\/li\u003e\n\u003cli\u003eSuitable for installation on a roof pitch between 0° and 15°\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"vc_empty_space\"\u003e\n\u003cstrong\u003ePerformance:\u003c\/strong\u003e\u003cbr\u003e\u003cspan class=\"vc_empty_space_inner\"\u003e\u003c\/span\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"wpb_text_column wpb_content_element\"\u003e\n\u003cdiv class=\"wpb_wrapper\"\u003e\n\u003cul\u003e\n\u003cli\u003eEN12101-2 certified\u003c\/li\u003e\n\u003cli\u003eAvailable from 700mm to 1200mm and 700mm to 2250m\u003c\/li\u003e\n\u003cli\u003eOpens to 140º\u003c\/li\u003e\n\u003cli\u003eGalvanised steel mechanism\u003c\/li\u003e\n\u003cli\u003eGlazed polycarbonate or solid aluminium cover\u003c\/li\u003e\n\u003cli\u003eExtremely low noise level\u003c\/li\u003e\n\u003cli\u003eCompact 24V motor unit\u003c\/li\u003e\n\u003cli\u003eAerodynamic free area up to Aa0.68m2\u003c\/li\u003e\n\u003cli\u003eSnow load up to 600N\/m²\u003c\/li\u003e\n\u003cli\u003eWind load up to 1500N\/m²\u003c\/li\u003e\n\u003cli\u003eLow ambient temperature T(-15°)\u003c\/li\u003e\n\u003cli\u003eHeat exposure B300\u003c\/li\u003e\n\u003cli\u003eReaction to Fire Class E\u003c\/li\u003e\n\u003cli\u003eOpening speed \u0026lt;60 secs\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e*More sizes and glazing available please call for pricing\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eFrequently Asked Questions:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan data-teams=\"true\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003eAre casement or domed roof vents guaranteed against wind damage when left in the open position?\u003c\/span\u003e\u003cbr\u003e\u003cbr\u003eCasement or domed roof vents, when left in the open position, are guaranteed to withstand wind speeds up to 20 mph (10 m\/s). However, any wind speeds exceeding this threshold may cause damage, which would not be covered under the manufacturer's warranty. As an alternative, we recommend using a louvered roof vent with an integrated wind shield for enhanced protection.\u003cbr\u003e\u003cbr\u003e\u003c\/span\u003e\u003cstrong\u003e\u003cspan data-teams=\"true\"\u003ePlease note, all vents will come with the actuator centrally located, if you wish for the actuator to be offset to the side for access please fill out the contact form within 24 hours of your purchase with your order number and state the actuator is to be offset. \u003c\/span\u003e\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2024-11-28T09:53:52+00:00","created_at":"2024-10-11T11:35:30+01:00","vendor":"Coxdome","type":"Smoke Vents","tags":["1000 x 1200","1000 x 1500","1000 x 1600","1050 x 1050","1200 x 1200","3-5 working days","750 x 2250","AOV smoke vent","Fire Rated","Flat Roof Vents","Natural Smoke Ventilation","Rooflight","Smoke Ventilation","Smoke Vents \/ AOV","Vent \/ AOV"],"price":105304,"price_min":105304,"price_max":135360,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":53352421622146,"title":"750MM X 2250MM \/ Double Skin \/ Diffused","option1":"750MM X 2250MM","option2":"Double Skin","option3":"Diffused","sku":"CAOV75225DD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 750MM X 2250MM \/ Double Skin \/ Diffused","public_title":"750MM X 2250MM \/ Double Skin \/ Diffused","options":["750MM X 2250MM","Double Skin","Diffused"],"price":126348,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421589378,"title":"750MM X 2250MM \/ Double Skin \/ Clear","option1":"750MM X 2250MM","option2":"Double Skin","option3":"Clear","sku":"CAOV75225DC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 750MM X 2250MM \/ Double Skin \/ Clear","public_title":"750MM X 2250MM \/ Double Skin \/ Clear","options":["750MM X 2250MM","Double Skin","Clear"],"price":126348,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421687682,"title":"750MM X 2250MM \/ Triple Skin \/ Diffused","option1":"750MM X 2250MM","option2":"Triple Skin","option3":"Diffused","sku":"CAOV75225TD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 750MM X 2250MM \/ Triple Skin \/ Diffused","public_title":"750MM X 2250MM \/ Triple Skin \/ Diffused","options":["750MM X 2250MM","Triple Skin","Diffused"],"price":135360,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421654914,"title":"750MM X 2250MM \/ Triple Skin \/ Clear","option1":"750MM X 2250MM","option2":"Triple Skin","option3":"Clear","sku":"CAOV75225TC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 750MM X 2250MM \/ Triple Skin \/ Clear","public_title":"750MM X 2250MM \/ Triple Skin \/ Clear","options":["750MM X 2250MM","Triple Skin","Clear"],"price":135360,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352420934018,"title":"1000MM x 1200MM \/ Double Skin \/ Diffused","option1":"1000MM x 1200MM","option2":"Double Skin","option3":"Diffused","sku":"CAOV100120DD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1200MM \/ Double Skin \/ Diffused","public_title":"1000MM x 1200MM \/ Double Skin \/ Diffused","options":["1000MM x 1200MM","Double Skin","Diffused"],"price":106746,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352420966786,"title":"1000MM x 1200MM \/ Double Skin \/ Clear","option1":"1000MM x 1200MM","option2":"Double Skin","option3":"Clear","sku":"CAOV100120DDC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1200MM \/ Double Skin \/ Clear","public_title":"1000MM x 1200MM \/ Double Skin \/ Clear","options":["1000MM x 1200MM","Double Skin","Clear"],"price":106746,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421032322,"title":"1000MM x 1200MM \/ Triple Skin \/ Diffused","option1":"1000MM x 1200MM","option2":"Triple Skin","option3":"Diffused","sku":"CAOV100120DTD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1200MM \/ Triple Skin \/ Diffused","public_title":"1000MM x 1200MM \/ Triple Skin \/ Diffused","options":["1000MM x 1200MM","Triple Skin","Diffused"],"price":112919,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352420999554,"title":"1000MM x 1200MM \/ Triple Skin \/ Clear","option1":"1000MM x 1200MM","option2":"Triple Skin","option3":"Clear","sku":"CAOV100120DTC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1200MM \/ Triple Skin \/ Clear","public_title":"1000MM x 1200MM \/ Triple Skin \/ Clear","options":["1000MM x 1200MM","Triple Skin","Clear"],"price":112919,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421065090,"title":"1000MM x 1500MM \/ Double Skin \/ Diffused","option1":"1000MM x 1500MM","option2":"Double Skin","option3":"Diffused","sku":"CAOV100150DD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1500MM \/ Double Skin \/ Diffused","public_title":"1000MM x 1500MM \/ Double Skin \/ Diffused","options":["1000MM x 1500MM","Double Skin","Diffused"],"price":116975,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421097858,"title":"1000MM x 1500MM \/ Double Skin \/ Clear","option1":"1000MM x 1500MM","option2":"Double Skin","option3":"Clear","sku":"CAOV100150DDC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1500MM \/ Double Skin \/ Clear","public_title":"1000MM x 1500MM \/ Double Skin \/ Clear","options":["1000MM x 1500MM","Double Skin","Clear"],"price":116975,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421163394,"title":"1000MM x 1500MM \/ Triple Skin \/ Diffused","option1":"1000MM x 1500MM","option2":"Triple Skin","option3":"Diffused","sku":"CAOV100150DTD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1500MM \/ Triple Skin \/ Diffused","public_title":"1000MM x 1500MM \/ Triple Skin \/ Diffused","options":["1000MM x 1500MM","Triple Skin","Diffused"],"price":126258,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421130626,"title":"1000MM x 1500MM \/ Triple Skin \/ Clear","option1":"1000MM x 1500MM","option2":"Triple Skin","option3":"Clear","sku":"CAOV100150DTC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1500MM \/ Triple Skin \/ Clear","public_title":"1000MM x 1500MM \/ Triple Skin \/ Clear","options":["1000MM x 1500MM","Triple Skin","Clear"],"price":126258,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421196162,"title":"1000MM x 1600MM \/ Double Skin \/ Diffused","option1":"1000MM x 1600MM","option2":"Double Skin","option3":"Diffused","sku":"CAOV100160DD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1600MM \/ Double Skin \/ Diffused","public_title":"1000MM x 1600MM \/ Double Skin \/ Diffused","options":["1000MM x 1600MM","Double Skin","Diffused"],"price":119138,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421228930,"title":"1000MM x 1600MM \/ Double Skin \/ Clear","option1":"1000MM x 1600MM","option2":"Double Skin","option3":"Clear","sku":"CAOV100160DDC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1600MM \/ Double Skin \/ Clear","public_title":"1000MM x 1600MM \/ Double Skin \/ Clear","options":["1000MM x 1600MM","Double Skin","Clear"],"price":119138,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421294466,"title":"1000MM x 1600MM \/ Triple Skin \/ Diffused","option1":"1000MM x 1600MM","option2":"Triple Skin","option3":"Diffused","sku":"CAOV100160DTD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1600MM \/ Triple Skin \/ Diffused","public_title":"1000MM x 1600MM \/ Triple Skin \/ Diffused","options":["1000MM x 1600MM","Triple Skin","Diffused"],"price":128556,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421261698,"title":"1000MM x 1600MM \/ Triple Skin \/ Clear","option1":"1000MM x 1600MM","option2":"Triple Skin","option3":"Clear","sku":"CAOV100160DTC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1000MM x 1600MM \/ Triple Skin \/ Clear","public_title":"1000MM x 1600MM \/ Triple Skin \/ Clear","options":["1000MM x 1600MM","Triple Skin","Clear"],"price":128556,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421327234,"title":"1050MM x 1050MM \/ Double Skin \/ Diffused","option1":"1050MM x 1050MM","option2":"Double Skin","option3":"Diffused","sku":"CAOV105105DD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1050MM x 1050MM \/ Double Skin \/ Diffused","public_title":"1050MM x 1050MM \/ Double Skin \/ Diffused","options":["1050MM x 1050MM","Double Skin","Diffused"],"price":105304,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421360002,"title":"1050MM x 1050MM \/ Double Skin \/ Clear","option1":"1050MM x 1050MM","option2":"Double Skin","option3":"Clear","sku":"CAOV105105DDC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1050MM x 1050MM \/ Double Skin \/ Clear","public_title":"1050MM x 1050MM \/ Double Skin \/ Clear","options":["1050MM x 1050MM","Double Skin","Clear"],"price":105304,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421425538,"title":"1050MM x 1050MM \/ Triple Skin \/ Diffused","option1":"1050MM x 1050MM","option2":"Triple Skin","option3":"Diffused","sku":"CAOV105105DTD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1050MM x 1050MM \/ Triple Skin \/ Diffused","public_title":"1050MM x 1050MM \/ Triple Skin \/ Diffused","options":["1050MM x 1050MM","Triple Skin","Diffused"],"price":110891,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421392770,"title":"1050MM x 1050MM \/ Triple Skin \/ Clear","option1":"1050MM x 1050MM","option2":"Triple Skin","option3":"Clear","sku":"CAOV105105DTC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1050MM x 1050MM \/ Triple Skin \/ Clear","public_title":"1050MM x 1050MM \/ Triple Skin \/ Clear","options":["1050MM x 1050MM","Triple Skin","Clear"],"price":110891,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421458306,"title":"1200MM x 1200MM \/ Double Skin \/ Diffused","option1":"1200MM x 1200MM","option2":"Double Skin","option3":"Diffused","sku":"CAOV120120DD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1200MM x 1200MM \/ Double Skin \/ Diffused","public_title":"1200MM x 1200MM \/ Double Skin \/ Diffused","options":["1200MM x 1200MM","Double Skin","Diffused"],"price":109945,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421491074,"title":"1200MM x 1200MM \/ Double Skin \/ Clear","option1":"1200MM x 1200MM","option2":"Double Skin","option3":"Clear","sku":"CAOV120120DDC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1200MM x 1200MM \/ Double Skin \/ Clear","public_title":"1200MM x 1200MM \/ Double Skin \/ Clear","options":["1200MM x 1200MM","Double Skin","Clear"],"price":109945,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421556610,"title":"1200MM x 1200MM \/ Triple Skin \/ Diffused","option1":"1200MM x 1200MM","option2":"Triple Skin","option3":"Diffused","sku":"CAOV120120DTD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1200MM x 1200MM \/ Triple Skin \/ Diffused","public_title":"1200MM x 1200MM \/ Triple Skin \/ Diffused","options":["1200MM x 1200MM","Triple Skin","Diffused"],"price":115217,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":53352421523842,"title":"1200MM x 1200MM \/ Triple Skin \/ Clear","option1":"1200MM x 1200MM","option2":"Triple Skin","option3":"Clear","sku":"CAOV120120DTC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coxdome AOV SHEV Polycarbonate - Dome - 1200MM x 1200MM \/ Triple Skin \/ Clear","public_title":"1200MM x 1200MM \/ Triple Skin \/ Clear","options":["1200MM x 1200MM","Triple Skin","Clear"],"price":115217,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_2.jpg?v=1730895982","\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_3.jpg?v=1730895982","\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_4.jpg?v=1730895982","\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_5.jpg?v=1730895982"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_2.jpg?v=1730895982","options":["Sizes","Glazing","Finish"],"media":[{"alt":null,"id":63053015679362,"position":1,"preview_image":{"aspect_ratio":1.5,"height":3840,"width":5760,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_2.jpg?v=1730895982"},"aspect_ratio":1.5,"height":3840,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_2.jpg?v=1730895982","width":5760},{"alt":null,"id":63053015712130,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1920,"width":2880,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_3.jpg?v=1730895982"},"aspect_ratio":1.5,"height":1920,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_3.jpg?v=1730895982","width":2880},{"alt":null,"id":63053015744898,"position":3,"preview_image":{"aspect_ratio":1.5,"height":3840,"width":5760,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_4.jpg?v=1730895982"},"aspect_ratio":1.5,"height":3840,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_4.jpg?v=1730895982","width":5760},{"alt":null,"id":63053015777666,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1920,"width":2880,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_5.jpg?v=1730895982"},"aspect_ratio":1.5,"height":1920,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/91SmallAOVwithaccess_5.jpg?v=1730895982","width":2880}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv data-halign=\"left\" data-hspacer=\"line_only\" class=\"uvc-heading ult-adjust-bottom-margin ultimate-heading-4862672b629635923 uvc-9687 accent-border-color\" id=\"ultimate-heading-4862672b629635923\"\u003e\n\u003cdiv data-responsive-json-new='{\"font-size\":\"\",\"line-height\":\"desktop:28px;\"}' data-ultimate-target=\".uvc-heading.ultimate-heading-4862672b629635923 .uvc-sub-heading\" class=\"uvc-sub-heading ult-responsive\"\u003eCOXDOME SHEV (AOV) systems provide a smoke and heat exhaust ventilation solution for all commercial and residential applications. Supplied factory assembled and factory tested, all products are certified to EN12101-2. SHEV (AOV) systems not only help to provide smoke extraction in the event of a fire, but they also provide day-to-day controllable ventilation.\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"vc_empty_space\"\u003e\n\u003cspan class=\"vc_empty_space_inner\"\u003e\u003c\/span\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"wpb_text_column wpb_content_element\"\u003e\n\u003cdiv class=\"wpb_wrapper\"\u003e\n\u003cp\u003eAvailable with clear or obscure polycarbonate glazing to enhance the building’s natural daylight, or with a fully insulated aluminium solid cover.\u003c\/p\u003e\n\u003cp\u003eThe COXDOME SHEV (AOV) range is available in a wide range of sizes and complies with the latest building regulations on fire safety and can be integrated into any Building Management System (BMS). Linked to a central control panel, control panels can be triggered from either manual override switches local to the ventilator and the ground floor by dedicated smoke detectors, or by interfacing with a third-party smoke detection\/fire alarm system . The BMS is complete with battery backup in case of mains failure.\u003c\/p\u003e\n\u003cp\u003eFor product information, lead times and pricing of Vertical Upstands, please contact the customer service team.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"wpb_text_column wpb_content_element\"\u003e\n\u003cdiv class=\"wpb_wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKey Benefits:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eSmoke and heat exhaust ventilation solution for all commercial and residential applications\u003c\/li\u003e\n\u003cli\u003eSupplied factory assembled and factory tested\u003c\/li\u003e\n\u003cli\u003eProvides smoke extraction in the event of a fire\u003c\/li\u003e\n\u003cli\u003eThe motor can be offset to provide access as well as smoke ventilation\u003c\/li\u003e\n\u003cli\u003eProvide day-to-day controllable ventilation\u003c\/li\u003e\n\u003cli\u003eComplies with the latest building regulations on fire safety\u003c\/li\u003e\n\u003cli\u003eCan be integrated into any Building Management System\u003c\/li\u003e\n\u003cli\u003eCentral control panel complete with battery backup in case of mains failure\u003c\/li\u003e\n\u003cli\u003eAvailable with clear or obscure polycarbonate glazing to enhance the building’s natural daylight\u003c\/li\u003e\n\u003cli\u003eSuitable for installation on a roof pitch between 0° and 15°\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"vc_empty_space\"\u003e\n\u003cstrong\u003ePerformance:\u003c\/strong\u003e\u003cbr\u003e\u003cspan class=\"vc_empty_space_inner\"\u003e\u003c\/span\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"wpb_text_column wpb_content_element\"\u003e\n\u003cdiv class=\"wpb_wrapper\"\u003e\n\u003cul\u003e\n\u003cli\u003eEN12101-2 certified\u003c\/li\u003e\n\u003cli\u003eAvailable from 700mm to 1200mm and 700mm to 2250m\u003c\/li\u003e\n\u003cli\u003eOpens to 140º\u003c\/li\u003e\n\u003cli\u003eGalvanised steel mechanism\u003c\/li\u003e\n\u003cli\u003eGlazed polycarbonate or solid aluminium cover\u003c\/li\u003e\n\u003cli\u003eExtremely low noise level\u003c\/li\u003e\n\u003cli\u003eCompact 24V motor unit\u003c\/li\u003e\n\u003cli\u003eAerodynamic free area up to Aa0.68m2\u003c\/li\u003e\n\u003cli\u003eSnow load up to 600N\/m²\u003c\/li\u003e\n\u003cli\u003eWind load up to 1500N\/m²\u003c\/li\u003e\n\u003cli\u003eLow ambient temperature T(-15°)\u003c\/li\u003e\n\u003cli\u003eHeat exposure B300\u003c\/li\u003e\n\u003cli\u003eReaction to Fire Class E\u003c\/li\u003e\n\u003cli\u003eOpening speed \u0026lt;60 secs\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e*More sizes and glazing available please call for pricing\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eFrequently Asked Questions:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan data-teams=\"true\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003eAre casement or domed roof vents guaranteed against wind damage when left in the open position?\u003c\/span\u003e\u003cbr\u003e\u003cbr\u003eCasement or domed roof vents, when left in the open position, are guaranteed to withstand wind speeds up to 20 mph (10 m\/s). However, any wind speeds exceeding this threshold may cause damage, which would not be covered under the manufacturer's warranty. As an alternative, we recommend using a louvered roof vent with an integrated wind shield for enhanced protection.\u003cbr\u003e\u003cbr\u003e\u003c\/span\u003e\u003cstrong\u003e\u003cspan data-teams=\"true\"\u003ePlease note, all vents will come with the actuator centrally located, if you wish for the actuator to be offset to the side for access please fill out the contact form within 24 hours of your purchase with your order number and state the actuator is to be offset. \u003c\/span\u003e\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
Coxdome

Coxdome AOV SHEV Polycarbonate - Dome

From £1,053.04 excl. VAT
COXDOME SHEV (AOV) systems provide a smoke and heat exhaust ventilation solution for all commercial and residential applications. Supplied factory assembled and factory tested, all products are certified to EN12101-2. SHEV (AOV) systems not only help to provide smoke extraction in the event of a fire, but they also provide day-to-day controllable ventilation.

Available with clear or obscure polycarbonate glazing to enhance the building’s natural daylight, or with a fully insulated aluminium solid cover.

The COXDOME SHEV (AOV) range is available in a wide range of sizes and complies with the latest building regulations on fire safety and can be integrated into any Building Management System (BMS). Linked to a central control panel, control panels can be triggered from either manual override switches local to the ventilator and the ground floor by dedicated smoke detectors, or by interfacing with a third-party smoke detection/fire alarm system . The BMS is complete with battery backup in case of mains failure.

For product information, lead times and pricing of Vertical Upstands, please contact the customer service team.

Key Benefits:

  • Smoke and heat exhaust ventilation solution for all commercial and residential applications
  • Supplied factory assembled and factory tested
  • Provides smoke extraction in the event of a fire
  • The motor can be offset to provide access as well as smoke ventilation
  • Provide day-to-day controllable ventilation
  • Complies with the latest building regulations on fire safety
  • Can be integrated into any Building Management System
  • Central control panel complete with battery backup in case of mains failure
  • Available with clear or obscure polycarbonate glazing to enhance the building’s natural daylight
  • Suitable for installation on a roof pitch between 0° and 15°



Performance:
  • EN12101-2 certified
  • Available from 700mm to 1200mm and 700mm to 2250m
  • Opens to 140º
  • Galvanised steel mechanism
  • Glazed polycarbonate or solid aluminium cover
  • Extremely low noise level
  • Compact 24V motor unit
  • Aerodynamic free area up to Aa0.68m2
  • Snow load up to 600N/m²
  • Wind load up to 1500N/m²
  • Low ambient temperature T(-15°)
  • Heat exposure B300
  • Reaction to Fire Class E
  • Opening speed <60 secs

*More sizes and glazing available please call for pricing

Frequently Asked Questions:

Are casement or domed roof vents guaranteed against wind damage when left in the open position?

Casement or domed roof vents, when left in the open position, are guaranteed to withstand wind speeds up to 20 mph (10 m/s). However, any wind speeds exceeding this threshold may cause damage, which would not be covered under the manufacturer's warranty. As an alternative, we recommend using a louvered roof vent with an integrated wind shield for enhanced protection.

Please note, all vents will come with the actuator centrally located, if you wish for the actuator to be offset to the side for access please fill out the contact form within 24 hours of your purchase with your order number and state the actuator is to be offset.

Sizes

  • 750MM X 2250MM
  • 1000MM x 1200MM
  • 1000MM x 1500MM
  • 1000MM x 1600MM
  • 1050MM x 1050MM
  • 1200MM x 1200MM

Glazing

  • Double Skin
  • Triple Skin

Finish

  • Diffused
  • Clear
View product
