A60 Series, A60 Type C, 1.2mm Galvanised Steel Case & Blades

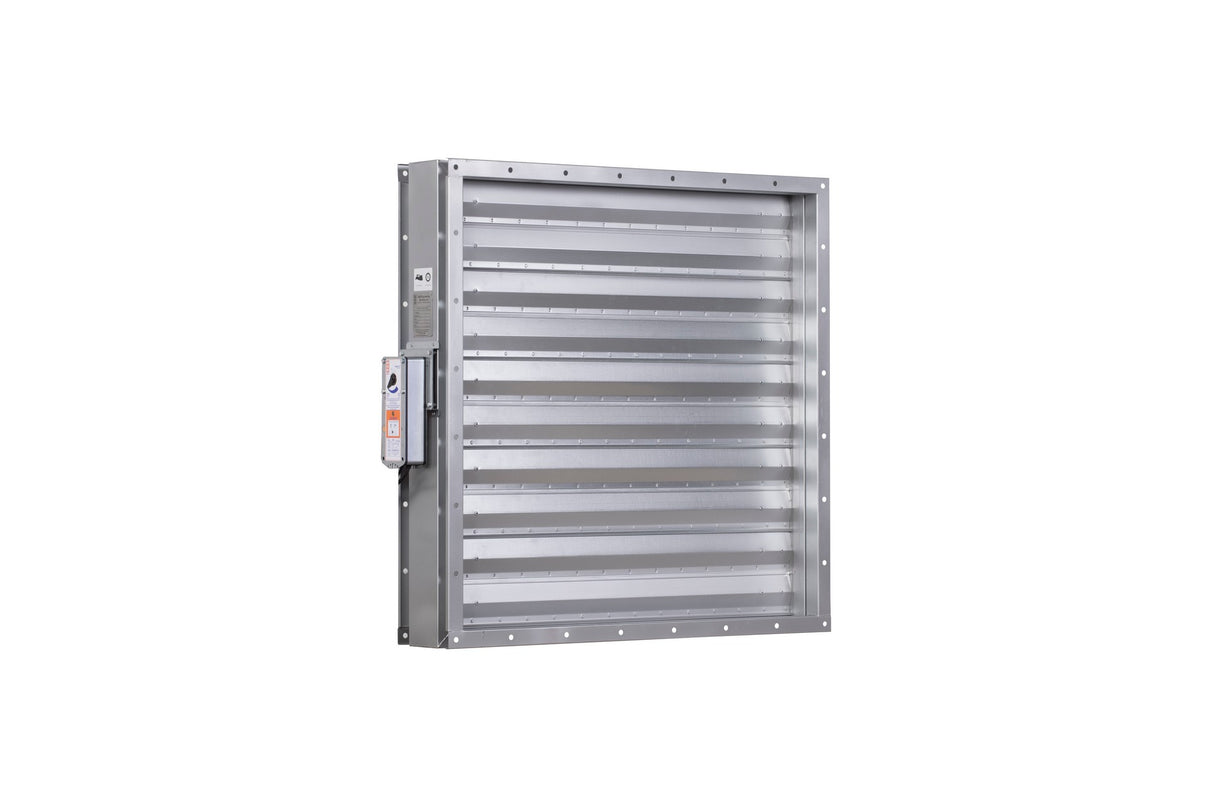

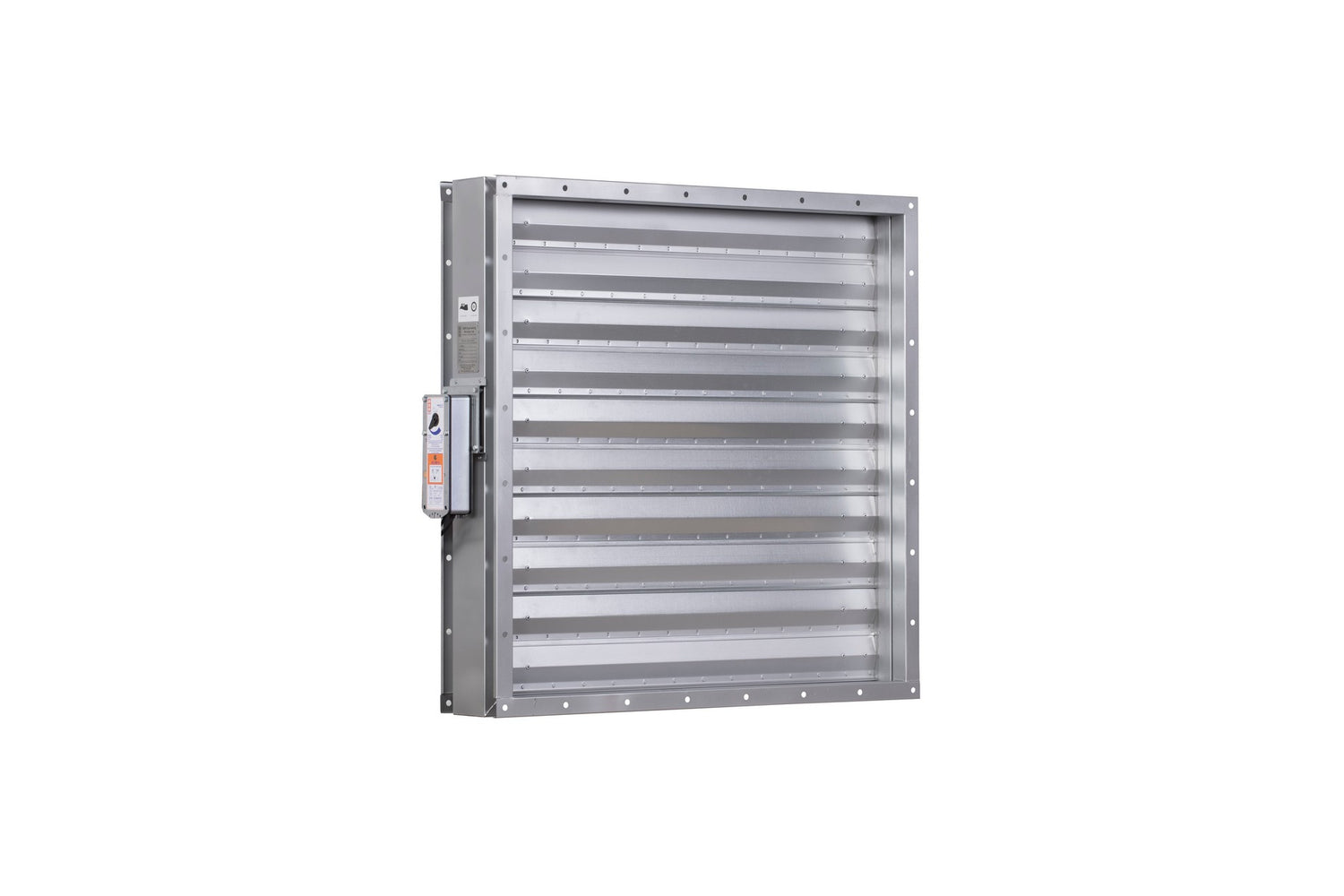

The BSB A60 multi-blade Marine motorised Fire Damper is designed for use on marine vessels to protect the integrity of fire rated bulkheads and decks

It is suitable for applications where the maximum system pressure is 2000 Pa and duct velocities do not exceed 20 m/s. The damper is ideal for both vertical and horizontal installations

The BSB A60 multi-blade Marine motorised Fire Damper is MED and Merchant Shipping (Marine Equipment) Regulations certified for A60 fire performance – SI 2016
USCG Approved, SOLAS Compliant and Lloyds Register Certified to IMO Fire Test Procedures.
Leakage to EN1751 with case leakage conforming to classes A, B, and C, and blade leakage to class B.

Testing, Approvals and conformities

• MED certified fire performance – 2014/90/EU
• Merchant Shipping Certified Fire performance – SI 2016 No.1025.
• Lloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class AO, A15, A30 and A60 Division bulkheads and decks. In compliance with the appropriate Lloyds Register Rules and Regulations and with the international Convention for the Safety Of Life At Sea (SOLAS).
• USCG (United States Coast Guard).
• Corrosion Tested to BSEN 60068-2-52.
• Vibration Tested to BS EN 60068-2-6.
• EC Type Examination (Module B).
• EC (Module D).
• Certificate of Fire Approval.
• BRE Global Compliant to ISO 9001. Suitable for use in both vertical and horizontal applications, with airflow in either direction.
• Available with square/rectangular flanged duct connections, sizes from 100mm x 100mm up to 1000mm x 1000mm, Circular sizes from 100mm dia up to 1000mm dia. in single section. Multiple assemblies for vertical installations only, up to maximum size of 2080mm x 1000mm. Casing and blade available in galvanised or stainless steel

  The BSB A60 multi-blade Marine motorised Fire Damper is MED and Merchant Shipping (Marine Equipment) Regulations certified for A60 fire performance – SI 2016
  USCG Approved, SOLAS Compliant and Lloyds Register Certified to IMO Fire Test Procedures.
  Leakage to EN1751 with case leakage conforming to classes A, B, and C, and blade leakage to class B.

  Testing, Approvals and conformities

  • MED certified fire performance – 2014/90/EU
  • Merchant Shipping Certified Fire performance – SI 2016 No.1025.
  • Lloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class AO, A15, A30 and A60 Division bulkheads and decks. In compliance with the appropriate Lloyds Register Rules and Regulations and with the international Convention for the Safety Of Life At Sea (SOLAS).
  • USCG (United States Coast Guard).
  • Corrosion Tested to BSEN 60068-2-52.
  • Vibration Tested to BS EN 60068-2-6.
  • EC Type Examination (Module B).
  • EC (Module D).
  • Certificate of Fire Approval.
  • BRE Global Compliant to ISO 9001. Suitable for use in both vertical and horizontal applications, with airflow in either direction.
  • Available with square/rectangular flanged duct connections, sizes from 100mm x 100mm up to 1000mm x 1000mm, Circular sizes from 100mm dia up to 1000mm dia. in single section. Multiple assemblies for vertical installations only, up to maximum size of 2080mm x 1000mm. Casing and blade available in galvanised or stainless steel.
