Conventional Detector Bases

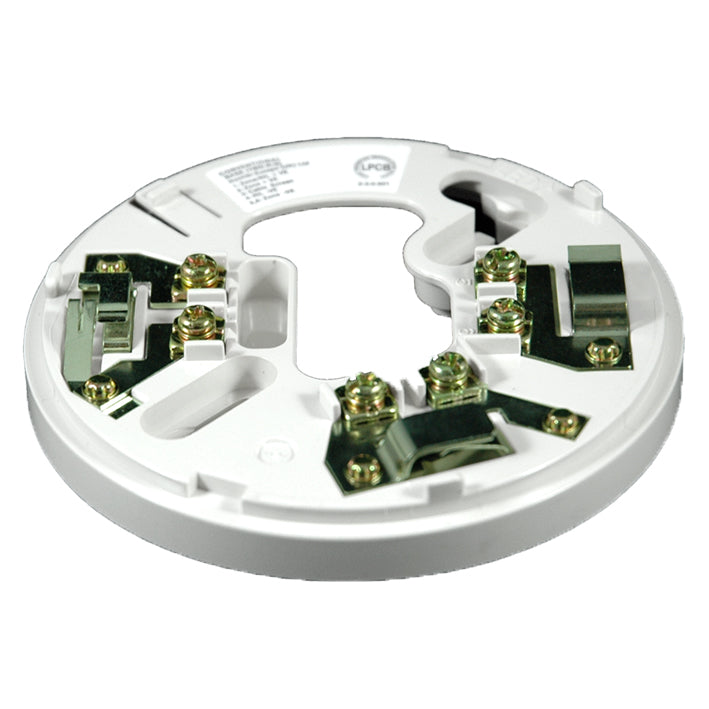

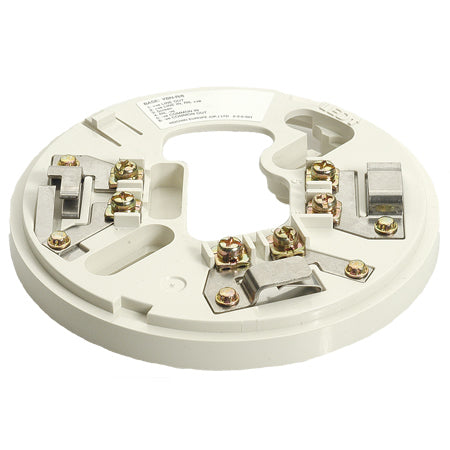

Hochiki Conventional CDX Standard Base YBN-R/6

Product Code: YBN-R/6
£1.58 excl. VAT
Colour: Ivory

Best Price
Quantity
3+
5+
10+
Unit Price
£1.55
£1.52
£1.49
Discount
2%
4%
6%

1-3 Days Delivery

Description

Model YBN-R/6 is a Conventional Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.

It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.

Key Features:

● Integral remote indicator output
● Low Profile, only 8 mm
● Rugged design and electronics free
● Quick connections via square cable clamps
● Accepts 2.5 mm cables
● Bayonet slot, low insertion force for detectors

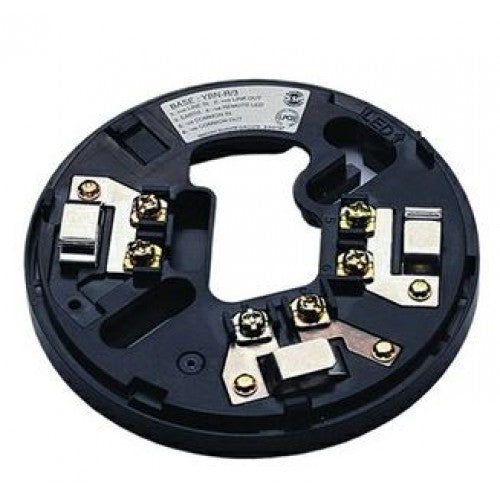

● Also available in white or black

Download Data Sheets

Click the PDF to download each individual data sheet.

    Datasheet
    • YBN-R-6_Specification.pdf PDF
{"id":7631267233852,"title":"Hochiki Conventional CDX Standard Base YBN-R\/6","handle":"hochiki-conventional-cdx-standard-base-ybn-r-6","description":"\u003cp\u003eModel YBN-R\/6 is a Conventional Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.\u003c\/p\u003e\n\n\u003cp\u003eIt is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.\u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Integral remote indicator output\n\u003cbr\u003e● Low Profile, only 8 mm\n\u003cbr\u003e● Rugged design and electronics free\n\u003cbr\u003e● Quick connections via square cable clamps\n\u003cbr\u003e● Accepts 2.5 mm cables\n\u003cbr\u003e● Bayonet slot, low insertion force for detectors\n\u003cbr\u003e● Also available in white or black\u003c\/p\u003e","published_at":"2024-06-07T11:20:49+01:00","created_at":"2024-06-07T11:20:49+01:00","vendor":"Hochiki","type":"Conventional Detector Bases","tags":["Conventional","Conventional Detector Bases","Fire \u0026 Smoke","Fire Detection","Fire Safety","Hochiki","Pre-order","Type: Fire Alarm"],"price":158,"price_min":158,"price_max":315,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41813164032060,"title":"Ivory","option1":"Ivory","option2":null,"option3":null,"sku":"YBN-R\/6","requires_shipping":true,"taxable":true,"featured_image":{"id":36441470107708,"product_id":7631267233852,"position":2,"created_at":"2024-06-19T11:33:48+01:00","updated_at":"2024-06-19T11:33:49+01:00","alt":null,"width":450,"height":450,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_2.jpg?v=1718793229","variant_ids":[41813164032060]},"available":true,"name":"Hochiki Conventional CDX Standard Base YBN-R\/6 - Ivory","public_title":"Ivory","options":["Ivory"],"price":158,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":29494374727740,"position":2,"preview_image":{"aspect_ratio":1.0,"height":450,"width":450,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_2.jpg?v=1718793229"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41813164064828,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"YBN-R\/6(BLK)","requires_shipping":true,"taxable":true,"featured_image":{"id":36441569296444,"product_id":7631267233852,"position":3,"created_at":"2024-06-19T11:43:57+01:00","updated_at":"2024-06-19T11:43:58+01:00","alt":null,"width":500,"height":500,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/Hochiki_Base-500x500.jpg?v=1718793838","variant_ids":[41813164064828]},"available":true,"name":"Hochiki Conventional CDX Standard Base YBN-R\/6 - Black","public_title":"Black","options":["Black"],"price":315,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":29494485811260,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/Hochiki_Base-500x500.jpg?v=1718793838"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41813164097596,"title":"White","option1":"White","option2":null,"option3":null,"sku":"YBN-R\/6(WHT)","requires_shipping":true,"taxable":true,"featured_image":{"id":36441470074940,"product_id":7631267233852,"position":1,"created_at":"2024-06-19T11:33:48+01:00","updated_at":"2024-06-19T11:33:49+01:00","alt":null,"width":709,"height":709,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_WHT__1.jpg?v=1718793229","variant_ids":[41813164097596]},"available":true,"name":"Hochiki Conventional CDX Standard Base YBN-R\/6 - White","public_title":"White","options":["White"],"price":158,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":29494374694972,"position":1,"preview_image":{"aspect_ratio":1.0,"height":709,"width":709,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_WHT__1.jpg?v=1718793229"}},"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_WHT__1.jpg?v=1718793229","\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_2.jpg?v=1718793229","\/\/www.inbuilduk.com\/cdn\/shop\/files\/Hochiki_Base-500x500.jpg?v=1718793838"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_WHT__1.jpg?v=1718793229","options":["Colour"],"media":[{"alt":null,"id":29494374694972,"position":1,"preview_image":{"aspect_ratio":1.0,"height":709,"width":709,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_WHT__1.jpg?v=1718793229"},"aspect_ratio":1.0,"height":709,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_WHT__1.jpg?v=1718793229","width":709},{"alt":null,"id":29494374727740,"position":2,"preview_image":{"aspect_ratio":1.0,"height":450,"width":450,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_2.jpg?v=1718793229"},"aspect_ratio":1.0,"height":450,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/YBN-R6_2.jpg?v=1718793229","width":450},{"alt":null,"id":29494485811260,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/Hochiki_Base-500x500.jpg?v=1718793838"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/Hochiki_Base-500x500.jpg?v=1718793838","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eModel YBN-R\/6 is a Conventional Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.\u003c\/p\u003e\n\n\u003cp\u003eIt is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.\u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Integral remote indicator output\n\u003cbr\u003e● Low Profile, only 8 mm\n\u003cbr\u003e● Rugged design and electronics free\n\u003cbr\u003e● Quick connections via square cable clamps\n\u003cbr\u003e● Accepts 2.5 mm cables\n\u003cbr\u003e● Bayonet slot, low insertion force for detectors\n\u003cbr\u003e● Also available in white or black\u003c\/p\u003e"}
Hochiki

Hochiki Conventional CDX Standard Base YBN-R/6

From £1.58 excl. VAT

Model YBN-R/6 is a Conventional Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.

It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.

Key Features:

● Integral remote indicator output
● Low Profile, only 8 mm
● Rugged design and electronics free
● Quick connections via square cable clamps
● Accepts 2.5 mm cables
● Bayonet slot, low insertion force for detectors
● Also available in white or black
