Weatherproof Enclosure for fire document enclosure
Weatherproof Enclosure for fire document enclosure is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

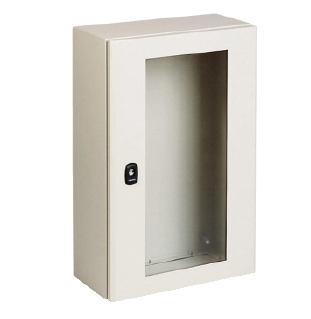

The Waterproof enclosure for our Fire document enclosure is a compact, multi-purpose enclosure designed for wall mounting. It features a glazed door without a mounting plate and is built for durability and protection in demanding environments.
Key Specifications:
Dimensions: H 500 mm × W 500 mm × D 200 mm
Material: Steel body with epoxy-polyester powder finish; door made of steel and security glass
Color: Grey (RAL 7035)
Door: Single front door, reversible opening (120°), equipped with a 3 mm double-bar lock
Protection:
IP66 (IEC 60529) – Dust-tight and protected against powerful water jets
IK08 (IEC 62262) – Impact resistance
Weight: 10.9 kg
Standards & Certifications: IEC 62208; UL, LR, DNV, BV, GL, CUL
Composition: Lock, door, body, cable gland plate
Installation: Wall-mounted, standard gland plate
Environmental Compliance:
- Green Premium product
- RoHS compliant
- REACh compliant
- No special recycling operations required
Warranty: 18 months
Applications:
Ideal for multi-purpose use in industrial and commercial settings requiring robust protection for electrical and electronic components.
Download Data Sheets
Click the PDF to download each individual data sheet.
- NSYS3D5520T_002_fa668d00-6b3f-484d-a380-197edc5c882e.pdf PDF
- Installation Instructions
