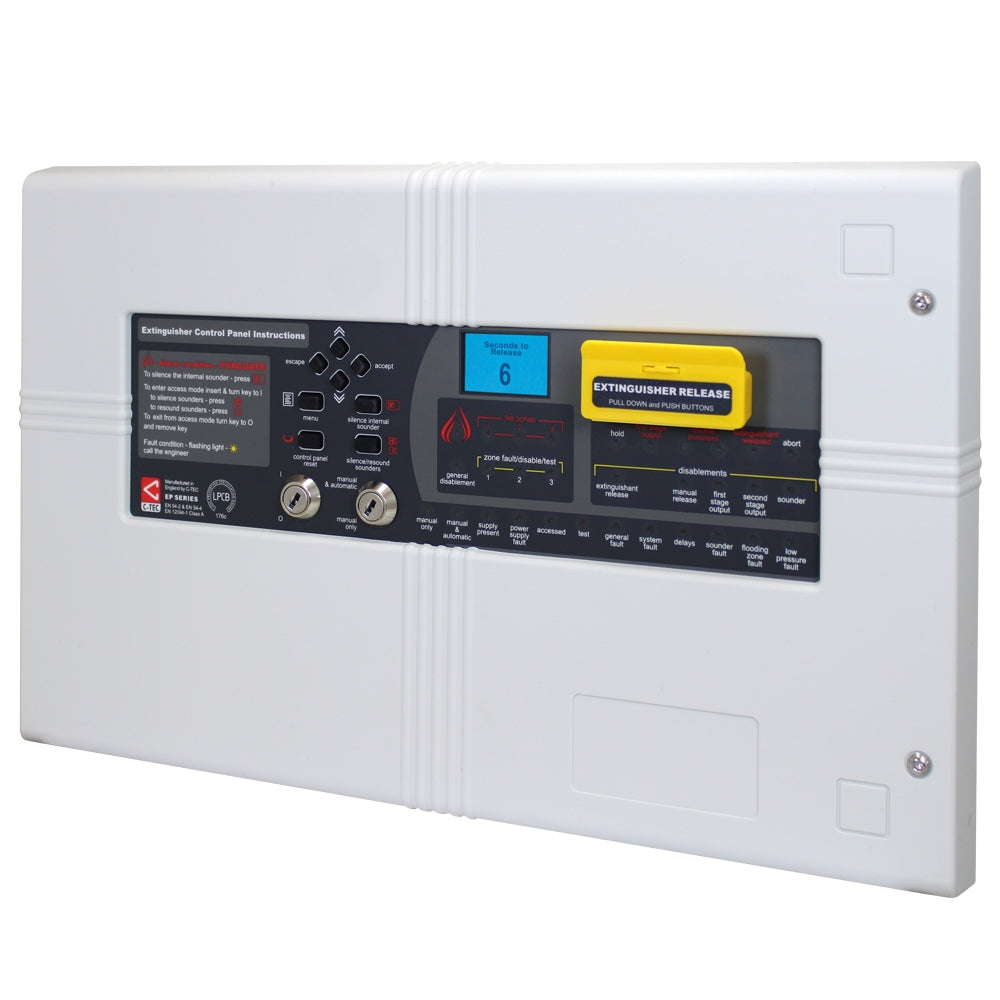

EP three-zone automatic extinguisher panel

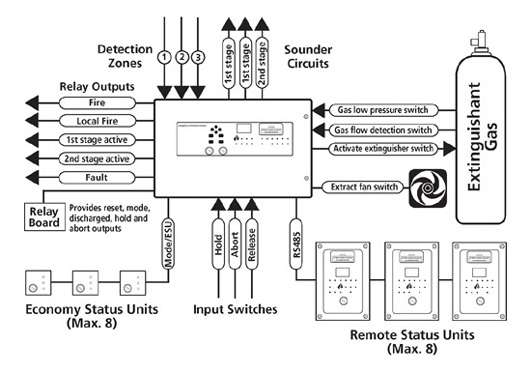

{"id":14978586870146,"title":"EP three-zone automatic extinguisher panel","handle":"ep-three-zone-automatic-extinguisher-panel-1","description":"\u003cp\u003eLPCB certified to EN 12094-1 (the European standard for Fixed Firefighting Systems – Components for Gas Extinguishing Systems) \u003cstrong\u003eand \u003c\/strong\u003eEN54-2\/4, the EP203 three zone automatic extinguisher panel epitomises quality, durability and reliability.\u003c\/p\u003e\n\u003cp\u003eSpecifically designed for use in areas housing expensive, dangerous or irreplaceable items of equipment, it features an intuitive 128 x 64 pixel display that gives clear and concise feedback to the user, installer and commissioning engineer. It has six monitored inputs (including hold \u0026amp; abort), a time stamped log, adjustable flood times and volt-free changeover relays for fire, local fire, 1st stage active, 2nd stage active, extractor fan and fault.\u003c\/p\u003e\n\u003cp\u003eAll of the panel’s electronics – apart from its powerful 3A EN54-4 switch mode PSU – are mounted on a detachable metal bridge plate for ease of installation. A wide range of ancillaries are also available including remote status units, hold-off \u0026amp; abort buttons, line terminators and relay boards.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eKey Features\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul class=\"keyf\"\u003e\n\u003cli\u003eCertified to EN54-2\/4 and EN12094-1 by the Loss Prevention Certification Board (LPCB)\u003c\/li\u003e\n\u003cli\u003eFunctions as a standard 3 zone fire panel with additional circuitry for controlling the release of fire-suppressing gas.\u003c\/li\u003e\n\u003cli\u003e128 x 64 pixel display.\u003c\/li\u003e\n\u003cli\u003eAny combination of activated zones can be programmed to automatically start the panel’s extinguishant release sequence.\u003c\/li\u003e\n\u003cli\u003eManual release button and two keyswitches.\u003c\/li\u003e\n\u003cli\u003e3 conventional sounder circuits (two x 1st stage, one x 2nd stage).\u003c\/li\u003e\n\u003cli\u003ePowerful 3A EN54-4 switch mode PSU.\u003c\/li\u003e\n\u003cli\u003eWide range of monitored inputs and auxiliary outputs.\u003c\/li\u003e\n\u003cli\u003eAbort and hold inputs.\u003c\/li\u003e\n\u003cli\u003eTime-stamped event log.\u003c\/li\u003e\n\u003cli\u003eRS485 connections for up to 8 flush or surface remote status units with their own LCDs, manual release and mode switches. Single gang economy status units also available.\u003c\/li\u003e\n\u003cli\u003eWide range of engineering functions.\u003c\/li\u003e\n\u003cli\u003eOptional relay expansion boards and single gang abort \u0026amp; hold buttons\u003c\/li\u003e\n\u003cli\u003eIdeal for use in computer rooms, telecommunication centres, archive storage areas, museums, etc.\u003c\/li\u003e\n\u003cli\u003eSystem line terminator included.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable aria-label=\"Product Details\" class=\"woocommerce-product-attributes shop_attributes\"\u003e\n\u003ctbody\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_approvalscertifications\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eApprovals\/certifications\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCertified to EN12094-1 and EN54-2 \u0026amp; 4 by the LPCB.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_mainssupply\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMains supply\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e230V 50\/60Hz.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_mainsratedcurrent\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMains rated current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e810mA max.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_internalpowersupply\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eInternal power supply\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_totaloutputcurrentlimitedto\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eTotal output current limited to\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e1.5A @ 230Vac continuous, 3A peak (ImaxA eq 800mA).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_quiescentcurrent\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eQuiescent current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e40mA (on mains fail). Zone quiescent 2mA max.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_maxbatterysizeandtype\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMax battery size and type\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e2 x 12V 7Ah VRLA connected in series.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_noofdetectorzonecircuits\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eNo. of detector zone circuits\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e3 @ 19-28Vdc (Max. length per circuit is 250m).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_maxdevicesperdetectorzone\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMax. devices per detector zone\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e20 detectors (or 32 detectors\/manual call points combined).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_53-noofconventionalsoundercir\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eNo. of conventional sounder circuits\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e3 (two x 1st stage; one x 2nd stage). Max. length per circuit is 50m).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_eolresistorvalue\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eEOL resistor value\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e6800Ω 5% Tol. 0\/25W (blue, grey, red, gold).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_maxsounderoutputcurrent\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMax. sounder output current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e3 x 200mA.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_auxiliaryrelays\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eAuxiliary relays\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eSix: (1) Fire; (2) Local Fire; (3) Extract Fan; (4) 1st Stage; (5) 2nd Stage; (6) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. Five additional relays\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_otheroutputs\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eOther outputs\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eExtinguishant release (21-28Vdc, rated at 1A for 5 mins). Programmable to delay by 0-60 seconds; to be active for 1-300 seconds and to flood for 60-1800 seconds.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_auxiliaryinputs\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eAuxiliary inputs\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eSix: (1) Manual Release; (2) Flow Switch; (3) Low Pressure; (4) Mode; (5) Hold; (6) Abort. 8K-2KΩ normal; 1.8K-200Ω active; 150-0Ω short circuit. EOL value: 6K8 +\/-5%, 0.25W.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_indicators\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eIndicators\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eMultiple indicators are provided – refer to the EP203 instructions for details.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_expansionconnections\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eExpansion connections\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eYes – for up to 8 x Remote status units (2 wire RS485 + 2 wire power) and\/or up to 8 x Ecomomy status units (2 wire power + 2 wire mode select).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_productdimensionsmm\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eProduct dimensions (mm)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e439 W x 276 H x 70 D mm (back box); 467 W x 293 H x 29 D mm (lid).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_constructionfinish\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eConstruction \u0026amp; finish\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eMetal back box; metal chassis' plastic lid.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_iprating\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eIP Rating\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eIP30.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_weight\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eWeight\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e4.2kg (without batteries).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_c5-operatingconditionstempera\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eOperating conditions\/temperature\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e\u003ca rel=\"tag\" href=\"https:\/\/c-tec.com\/c5-operatingconditionstempera\/_5cto40cmaxrelativehumidity95\/\"\u003e-5ºC to +40ºC. Max relative humidity: 95%.\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2025-06-17T13:27:37+01:00","created_at":"2025-05-06T14:26:08+01:00","vendor":"C-Tec","type":"","tags":["C-Tec","Commercial","Conventional","Conventional Fire Alarm Panels","Fire Detection","Fire Rated","Fire Safety","Residential"],"price":29482,"price_min":29482,"price_max":29482,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55180106957186,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"EP203","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EP three-zone automatic extinguisher panel","public_title":null,"options":["Default Title"],"price":29482,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/ep203-new_e47d14e0-2794-4707-9baa-a9d1fb4d5eaf.jpg?v=1749646439","\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_3_3_4_334-An-overview-of-the-EP203s-inputs-and-outputs_847de02a-158a-4ead-afcc-66753ba6e05f.jpg?v=1749646438"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/ep203-new_e47d14e0-2794-4707-9baa-a9d1fb4d5eaf.jpg?v=1749646439","options":["Title"],"media":[{"alt":null,"id":64836535943554,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/ep203-new_e47d14e0-2794-4707-9baa-a9d1fb4d5eaf.jpg?v=1749646439"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/ep203-new_e47d14e0-2794-4707-9baa-a9d1fb4d5eaf.jpg?v=1749646439","width":1000},{"alt":null,"id":64836536009090,"position":2,"preview_image":{"aspect_ratio":1.424,"height":373,"width":531,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_3_3_4_334-An-overview-of-the-EP203s-inputs-and-outputs_847de02a-158a-4ead-afcc-66753ba6e05f.jpg?v=1749646438"},"aspect_ratio":1.424,"height":373,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_3_3_4_334-An-overview-of-the-EP203s-inputs-and-outputs_847de02a-158a-4ead-afcc-66753ba6e05f.jpg?v=1749646438","width":531}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eLPCB certified to EN 12094-1 (the European standard for Fixed Firefighting Systems – Components for Gas Extinguishing Systems) \u003cstrong\u003eand \u003c\/strong\u003eEN54-2\/4, the EP203 three zone automatic extinguisher panel epitomises quality, durability and reliability.\u003c\/p\u003e\n\u003cp\u003eSpecifically designed for use in areas housing expensive, dangerous or irreplaceable items of equipment, it features an intuitive 128 x 64 pixel display that gives clear and concise feedback to the user, installer and commissioning engineer. It has six monitored inputs (including hold \u0026amp; abort), a time stamped log, adjustable flood times and volt-free changeover relays for fire, local fire, 1st stage active, 2nd stage active, extractor fan and fault.\u003c\/p\u003e\n\u003cp\u003eAll of the panel’s electronics – apart from its powerful 3A EN54-4 switch mode PSU – are mounted on a detachable metal bridge plate for ease of installation. A wide range of ancillaries are also available including remote status units, hold-off \u0026amp; abort buttons, line terminators and relay boards.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eKey Features\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul class=\"keyf\"\u003e\n\u003cli\u003eCertified to EN54-2\/4 and EN12094-1 by the Loss Prevention Certification Board (LPCB)\u003c\/li\u003e\n\u003cli\u003eFunctions as a standard 3 zone fire panel with additional circuitry for controlling the release of fire-suppressing gas.\u003c\/li\u003e\n\u003cli\u003e128 x 64 pixel display.\u003c\/li\u003e\n\u003cli\u003eAny combination of activated zones can be programmed to automatically start the panel’s extinguishant release sequence.\u003c\/li\u003e\n\u003cli\u003eManual release button and two keyswitches.\u003c\/li\u003e\n\u003cli\u003e3 conventional sounder circuits (two x 1st stage, one x 2nd stage).\u003c\/li\u003e\n\u003cli\u003ePowerful 3A EN54-4 switch mode PSU.\u003c\/li\u003e\n\u003cli\u003eWide range of monitored inputs and auxiliary outputs.\u003c\/li\u003e\n\u003cli\u003eAbort and hold inputs.\u003c\/li\u003e\n\u003cli\u003eTime-stamped event log.\u003c\/li\u003e\n\u003cli\u003eRS485 connections for up to 8 flush or surface remote status units with their own LCDs, manual release and mode switches. Single gang economy status units also available.\u003c\/li\u003e\n\u003cli\u003eWide range of engineering functions.\u003c\/li\u003e\n\u003cli\u003eOptional relay expansion boards and single gang abort \u0026amp; hold buttons\u003c\/li\u003e\n\u003cli\u003eIdeal for use in computer rooms, telecommunication centres, archive storage areas, museums, etc.\u003c\/li\u003e\n\u003cli\u003eSystem line terminator included.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable aria-label=\"Product Details\" class=\"woocommerce-product-attributes shop_attributes\"\u003e\n\u003ctbody\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_approvalscertifications\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eApprovals\/certifications\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCertified to EN12094-1 and EN54-2 \u0026amp; 4 by the LPCB.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_mainssupply\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMains supply\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e230V 50\/60Hz.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_mainsratedcurrent\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMains rated current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e810mA max.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_internalpowersupply\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eInternal power supply\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_totaloutputcurrentlimitedto\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eTotal output current limited to\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e1.5A @ 230Vac continuous, 3A peak (ImaxA eq 800mA).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_quiescentcurrent\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eQuiescent current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e40mA (on mains fail). Zone quiescent 2mA max.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_maxbatterysizeandtype\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMax battery size and type\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e2 x 12V 7Ah VRLA connected in series.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_noofdetectorzonecircuits\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eNo. of detector zone circuits\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e3 @ 19-28Vdc (Max. length per circuit is 250m).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_maxdevicesperdetectorzone\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMax. devices per detector zone\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e20 detectors (or 32 detectors\/manual call points combined).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_53-noofconventionalsoundercir\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eNo. of conventional sounder circuits\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e3 (two x 1st stage; one x 2nd stage). Max. length per circuit is 50m).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_eolresistorvalue\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eEOL resistor value\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e6800Ω 5% Tol. 0\/25W (blue, grey, red, gold).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_maxsounderoutputcurrent\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eMax. sounder output current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e3 x 200mA.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_auxiliaryrelays\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eAuxiliary relays\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eSix: (1) Fire; (2) Local Fire; (3) Extract Fan; (4) 1st Stage; (5) 2nd Stage; (6) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. Five additional relays\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_otheroutputs\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eOther outputs\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eExtinguishant release (21-28Vdc, rated at 1A for 5 mins). Programmable to delay by 0-60 seconds; to be active for 1-300 seconds and to flood for 60-1800 seconds.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_auxiliaryinputs\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eAuxiliary inputs\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eSix: (1) Manual Release; (2) Flow Switch; (3) Low Pressure; (4) Mode; (5) Hold; (6) Abort. 8K-2KΩ normal; 1.8K-200Ω active; 150-0Ω short circuit. EOL value: 6K8 +\/-5%, 0.25W.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_indicators\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eIndicators\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eMultiple indicators are provided – refer to the EP203 instructions for details.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_expansionconnections\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eExpansion connections\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eYes – for up to 8 x Remote status units (2 wire RS485 + 2 wire power) and\/or up to 8 x Ecomomy status units (2 wire power + 2 wire mode select).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_productdimensionsmm\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eProduct dimensions (mm)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e439 W x 276 H x 70 D mm (back box); 467 W x 293 H x 29 D mm (lid).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_constructionfinish\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eConstruction \u0026amp; finish\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eMetal back box; metal chassis' plastic lid.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_iprating\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eIP Rating\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eIP30.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_weight\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eWeight\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e4.2kg (without batteries).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_c5-operatingconditionstempera\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eOperating conditions\/temperature\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e\u003ca rel=\"tag\" href=\"https:\/\/c-tec.com\/c5-operatingconditionstempera\/_5cto40cmaxrelativehumidity95\/\"\u003e-5ºC to +40ºC. Max relative humidity: 95%.\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}
