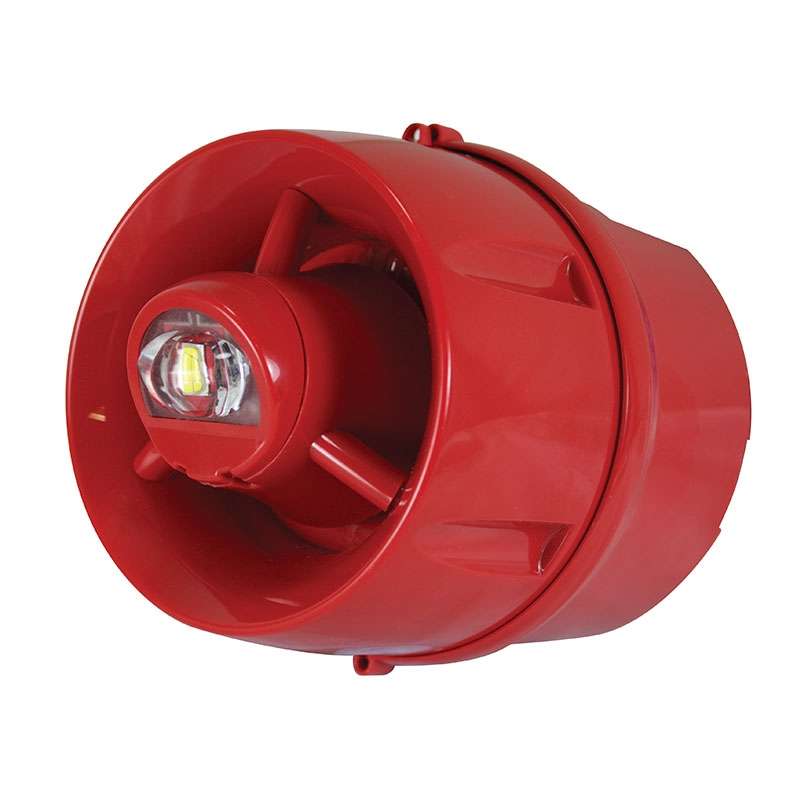

CX Wall voice sounder VAD deep base RED - APOLLO XFP95/DISCOVERY
CX Wall voice sounder VAD deep base RED - APOLLO XFP95/DISCOVERY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Superb sound intelligibility.
- Includes three selectable voice message pairs.
- Provides ‘W-2.4-8.2’ light distribution when wall mounted (min 0.4 lux over a 2.4m x 8.2m cuboid area using the same lens and electronics as our EN54-23, 3 & 17 certified wall sounder VAD).
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 19.5mA alarm current @24V DC (VAD lit, voice sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels and up to 15 selectable tone pairs.
- IP33C (Type B) rated.
Technical Specifications
| Protocol/compatibility |
Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
|---|---|
| Application/operation |
Designed to be wall mounted. Indoor areas only. |
| VAD category & coverage |
W-2.4-8.2. |
| Flash rate & colour |
0.5Hz / White. |
| Supply/operating voltage |
17 to 28V DC (Sounder); 21 to 28V DC (Sounder/VAD). |
| Quiescent current |
550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) |
89 dB(A) @ 1 m |
| Alarm current |
19.5mA (VAD lit, Voice Sounder on max). |
| Indicators |
Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) |
114mm diameter x 131mm deep. |
| IP Rating |
IP33C (Type B). |
| Weight |
315g. |
| Operating conditions/temperature |
-10ºC to +55ºC. Max. 95% RH (Non-condensing). |
