Smoke Detector

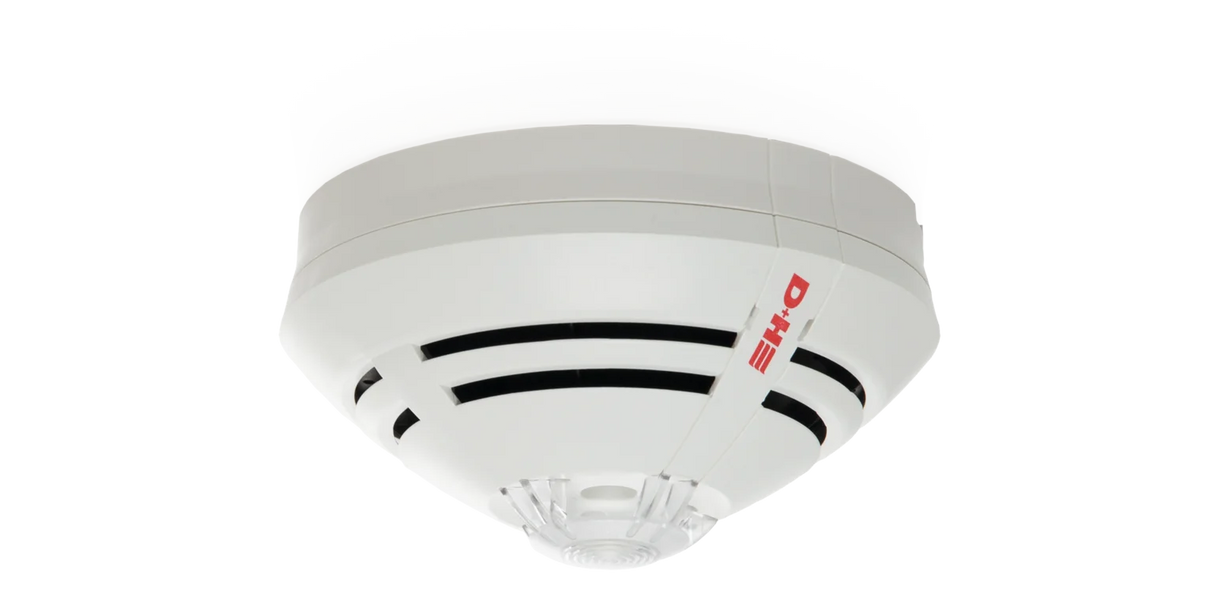

Optical Smoke Detector

Product Code: SD-O371
£96.92 excl. VAT

Description

  • Optical fire detector works on the scattered light principle
  • Automatic self‑monitoring of function and state
  • Individual display for alarm
  • Resting value tracking
  • Easy installation using removable base
  • VdS approval number: G 213066

Technical data:

  • Nominal voltage: 24 V DC
  • Monitoring area: 110 m²
  • Monitoring hight: 12 m
  • Air speed: 0 - 25.4 m/s
  • Type of protection: IP 40
  • Temperature range: -20 °C … +72 °C
  • Air humidity: ≤ 95 %
  • Housing: ABS
  • Colour: White (~ RAL 9010)
  • Diameter : 117 mm
  • Connection: Terminal 0,6 mm Ø ... 2 mm²
  • Specification: EN 54-7
  • VdS approval number: G 213066
  • Weight: 0.11 kg
  • Art. No.: 70.300.22

Download Data Sheets

Click the PDF to download each individual data sheet.
