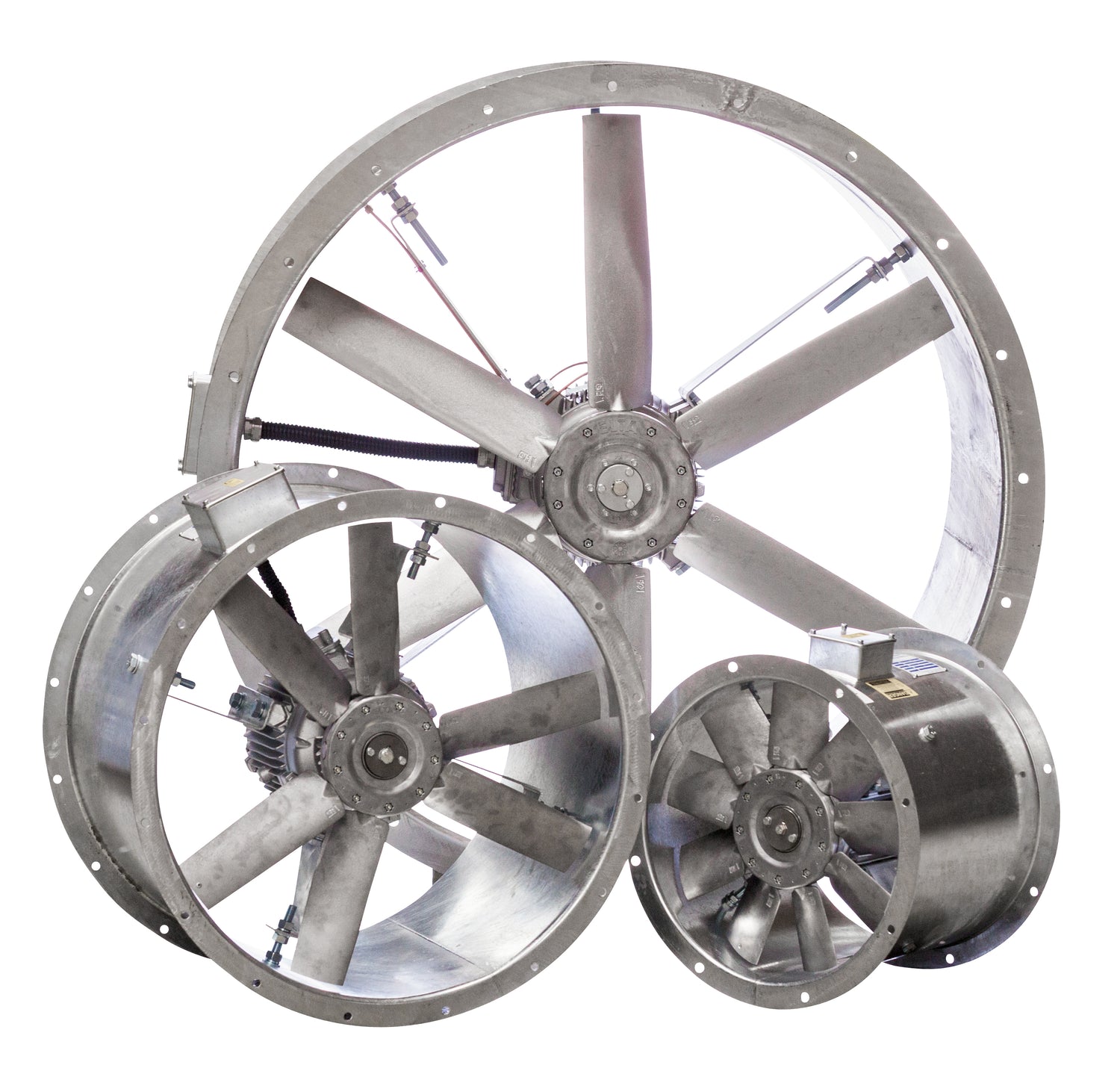

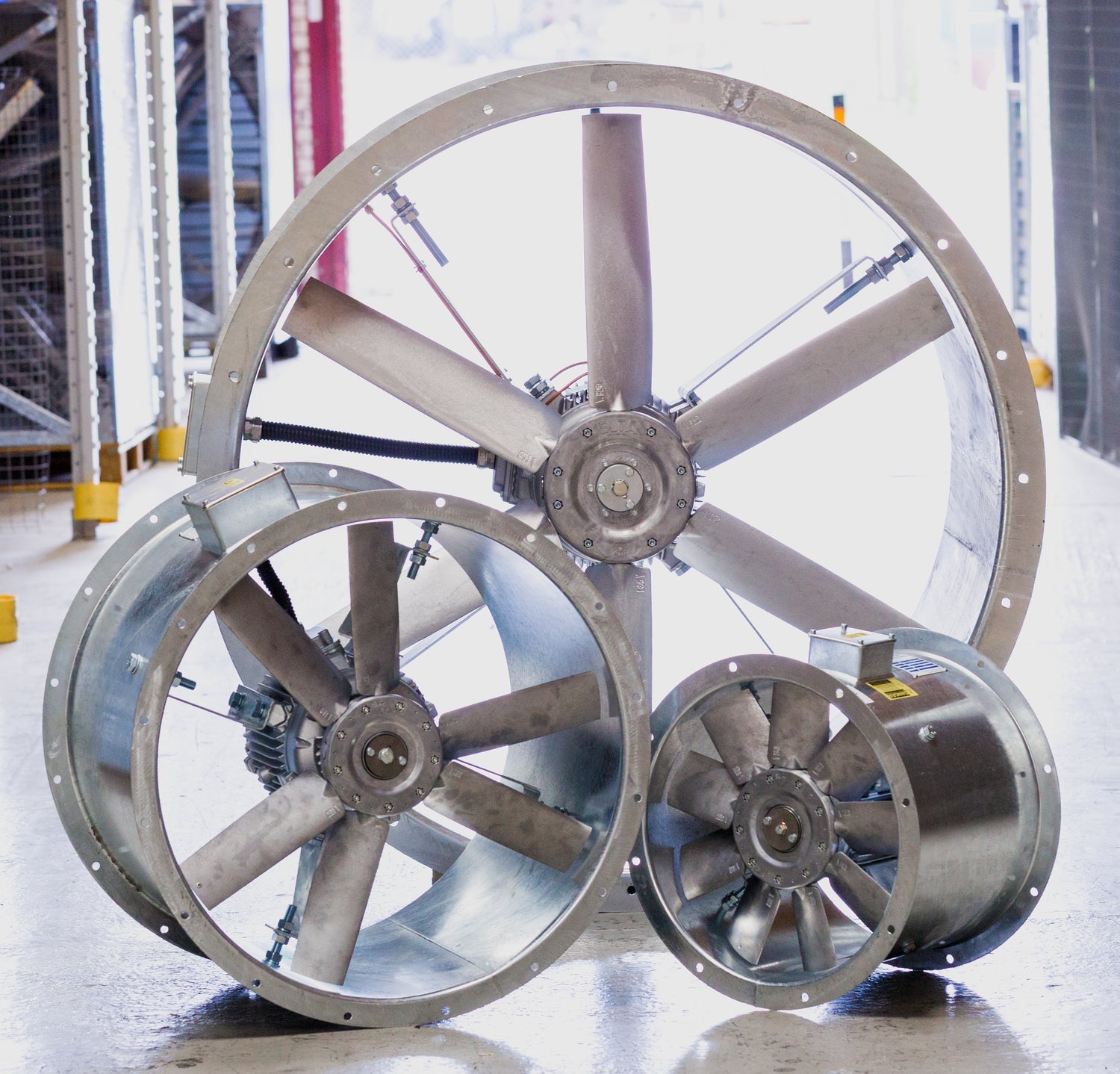

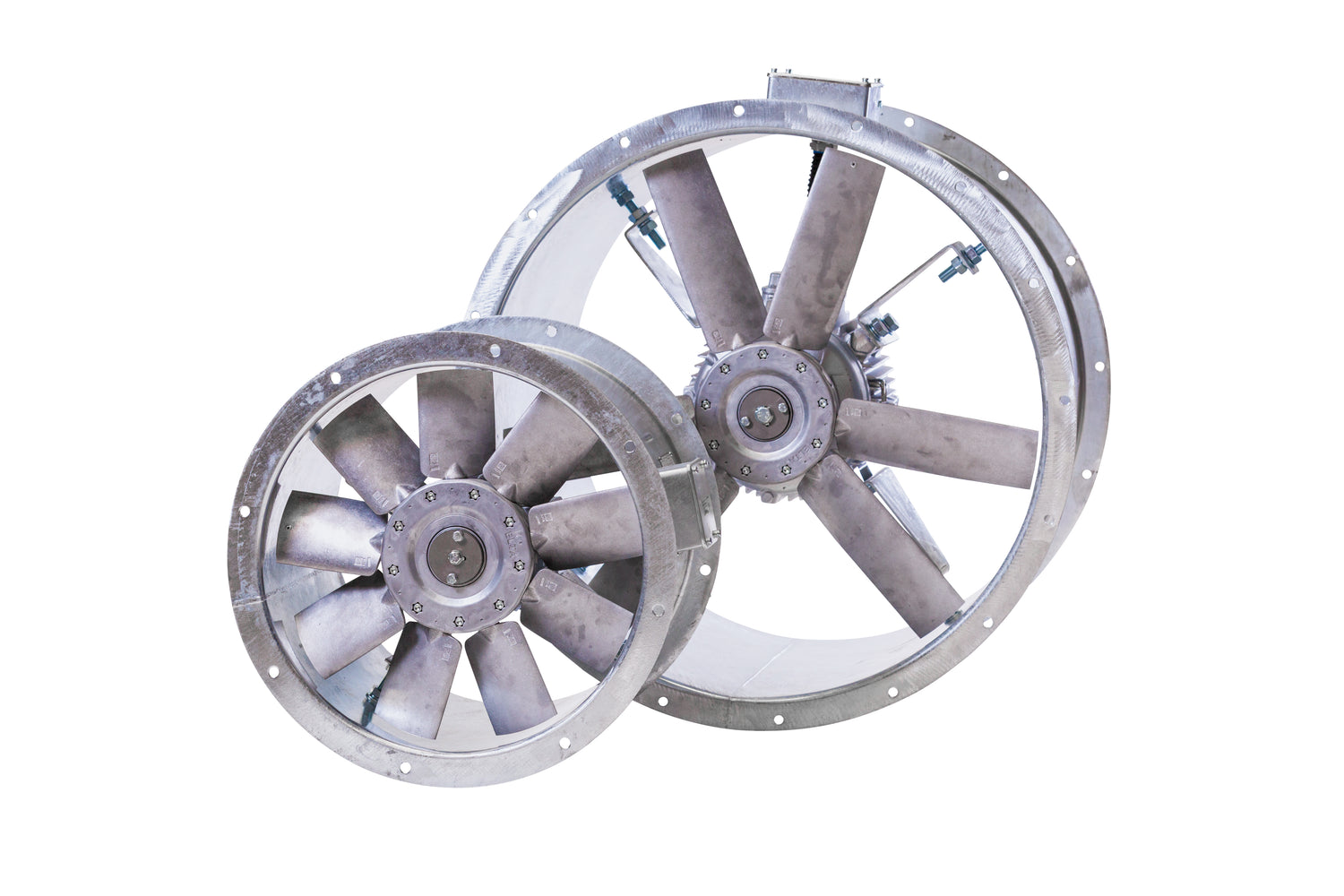

Long Cased Smoke Axial Fan

Long Cased Axial fan 500mm

Product Code: LCS050J2-A6/17
£1,261.33 excl. VAT

Best Price
Quantity
3+
5+
10+
Unit Price
£1,236.10
£1,210.88
£1,185.65
Discount
2%
4%
6%
Can’t find what you are looking for?
Request a quote

4 Weeks Delivery

Description

Description: Long Cased Smoke Axial Fan

ACTUAL -
Air Flow: 2.01 m³/s
Static Pressure: 423 Pa
Total Pressure: 486 Pa

FAN DATA -
Diameter: 500 mm
Impeller Type: Axial
Blade Material: Aluminum
Speed: 2880 r/min @50 Hz
Power, Abs: 1.92 kW
Input Power: 2.22 kW
Efficiency Total: 51.0%
SFP: 1.11
Fan Weight: 47.2 kg
Hub: 131 mm
Pitch: 17°
Blades: 6
Form: B
Peak: 1.92 kW
Static: 44.4%

MOTOR DATA (at STP) -
Motor Type: F300 (IE3)
Electrical Supply: 400V 3ph 50Hz
Motor Frame: 90L
Motor Power: 2.64kW (AOM) (2.20kW IEC)
FLC/Start (DOL): 5.32A (AOM) / 33.23A (4.43A FL IEC)
Motor Speed: 2 pole
Motor Efficiency: 86.2%

Download Data Sheets

Click the PDF to download each individual data sheet.
