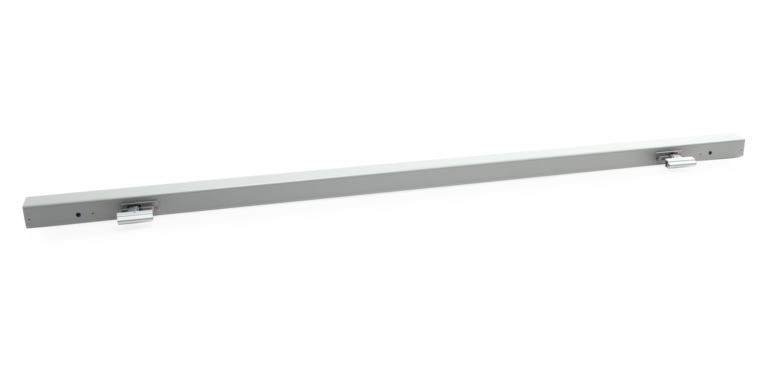

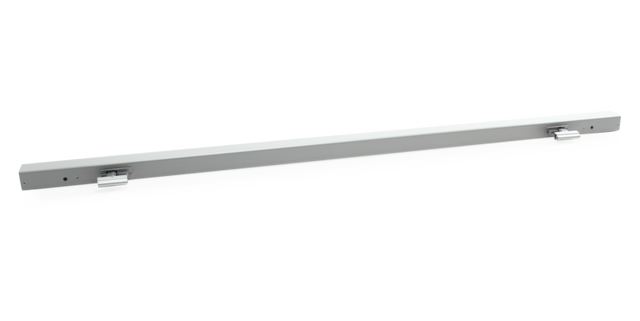

Twin Chain Drive 24v - 600N, 600mm - Silver

 Performance features

• Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
• With BSY+ motor and synchronised electronics controlled via microprocessor
• High‑speed function (HS) for especially fast opening windows in case of fire (SHEV)
• 2 drive chains for optimal power application to the sash
• Special chain stabilisation
• Relief of pressure on window gasket after closing process
• Electronic force and position control
• Programmable drive functions and different drive parameters
• Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
• Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Technical Data

• Supply 24 V DC / ±15 % / 2 A
• Duty cycle 30 % (ON: 3 min. / OFF: 7 min.)
• Force of pressure 600 N
• Tensile force 600 N
• Nominal locking force ** 3000 N
• Service life 20000 double strokes *
• Stroke 600 mm
• OPEN running speed 11.8 mm/s
• OPEN running speed - SHEV 12.2 mm/s
• CLOSED running speed 11.8 mm/s
• Type of protection IP 32
• Emission sound pressure level LpA ≤ 70 dB(A)
• Temperature range-15 °C (-5 °C ***) … +75 °C
• Fire resistance B300 (30 min / 300 °C)
• Housing Aluminium
• Surface Powder-coated
• Colour White aluminium (~ RAL 9006)
• Connection 2.5 m silicone cable
• Dimension A 1,347 mm
• Dimension B 1,000 mm
• W x H x D 1347 x 40 x 59 mm
• Weight 5 kg
• Art. No. 26.013.5
