Gas Detection

Standalone Combustible Gas Detector (LPG)

Product Code: HUVO-ZG-100L
£78.53 excl. VAT

1-2 Days Delivery

Description

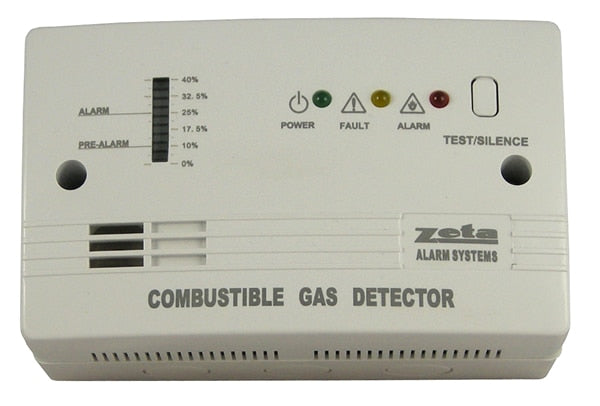

The ZG-100 is the new stand alone Combustible Gas detector from Zeta Alarm Systems. It has been designed with the same dimensions as a standard 2 gang fitting, so can be installed either Surface mounted with it’s own backbox, or with a standard recessed box for semi-fl ush mounting.

There are two versions available. One calibrated for Natural gas, one calibrated for LPG. They can be powered either from 230V AC mains, or from a DC supply (9-28V DC). They have a built in bar graph display to show the current Gas level as a %LEL reading, and has a 2 stage relay output which operates at first alarm level (10%LEL) & second alarm level (25%LEL).

There is also a 5 volt alarm output capable of supplying 200mA. They have power, fault & alarm indications, as well as a control button for mute (press) and reset (Press & hold for 5 seconds).

MODEL ZG-100N -  ZG-100L
 PART NO 47-405
 SUPPLY VOLTAGE 47-410 230V @50/60Hz AC or 9-28V DC
 QUIESCENT CURRENT 140 mA
 START-UP CURRENT 220mA
 ALARM CURRENT 500mA (excluding Alarm output)

BUZZER OUTPUT 85dB@ 3m
 OPERATING TEMPERATURE 0°C to 50°C
 MAX. HUMIDITY 95% RH N/C
 RESPONSE TIME <30 SECONDS
 SENSITIVITY 4400ppm - 1700ppm
 SIZE (WxHxD mm)  150mm x 90mm x 70mm
 WEIGHT 1 kg

Download Data Sheets

Click the PDF to download each individual data sheet.
