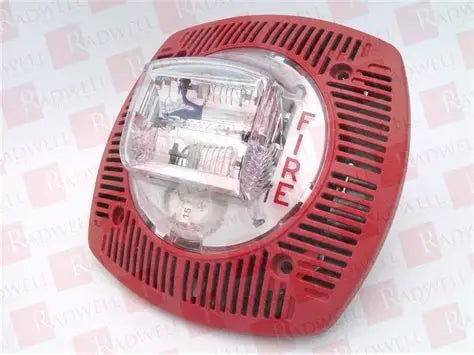

Speaker/Strobe, 25 or 70.7 VRMS, Selectable Candela, Wall Mount, FIRE text

The Zeta ZT-SSPK24WLP is a wall mount, selectable candela speaker/strobe designed to meet the code  requirements for visual and voice communications. The ZT-SSPK24WLR series are quality speaker products offering both dependable evacuation signalling and visual alarms, or a combination of both.

The high output tamperproof candela selections are 15, 30, 75, 95 and 110. The unit can be mounted in a 4” square x 2-1/8” back box, an extension ring is not needed.

The ZT-SSPK24WLP provides a 25 or 70.7 VRMS speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W or 4W.

The ZT-SSPK24WLP devices are listed to ANSI/UL 1480, the selectable candela strobe is listed to ANSI/UL 1971. The units are also listed to CAN/ULC S526 and/or CAN/ULC S541.

Features

Speaker/strobe nominal voltage 24VDC
24VDC field selectable candelas: 15, 30, 60, 75 & 110
 Unit dimensions 155mm square x 99mm deep
Speaker voltage 25 or 70.7 Vrms standard, field selectable
Power taps 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W
High quality dBA output (intelligible)
Frequency range 400-4000 Hz
Screw terminals – separate in/out wiring
Tamperproof grill
Wall mount only
