Single Zone Aspirating Smoke Detector

The VDOT-ASD-100 uses high power, short wavelength blue LED as the detection light source. It is very sensitive to small smoke particles generated during the incipient stage of a fire, at which time can still remain invisible to the human eye.

The highest alarm sensitivity of the VDOT-ASD-100 high sensitivity smoke detector is 0.005%/m, which is 1000 times more sensitive to conventional point type smoke detector.

Smoke Detection Range: 0.001~25%/m
Alarm Sensitivity Range:     0.005~20%/m
Event Log
No of Events:      25,000
Event Types:           Alarm, Fault, Operation, Smoke,
                                     Flow, Auxiliary Gas Sensors,

• Four Alarm Levels
• 7 Relay Outputs

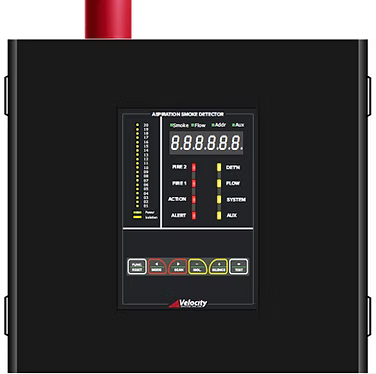

• 3 in 1 Control/Display/Programmer Front Panel
• RS485 Network
• Support Modbus RTU Open Protocol
