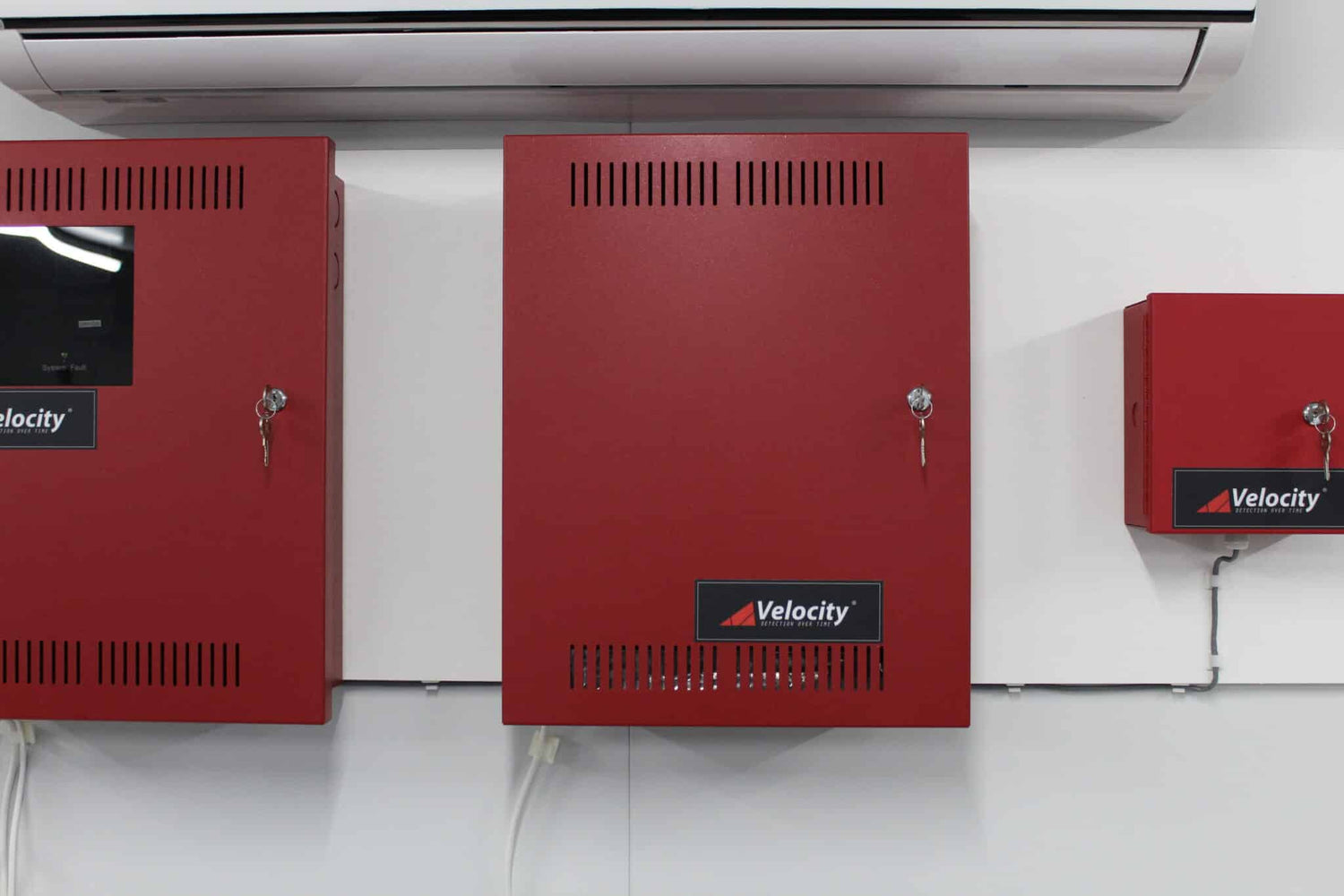

This state of the art emergency communication system is modular and is designed for a variety of voice alarm guidance applications. The system quickly integrates via a single primary connection to a sounder circuit output from the host fire alarm control panel. The panel comes with a variety of pre-set configurations providing complete notification capability right out of the box.
The ZT-MNS-70V-XFMR transformer provides a simple means to significantly increase the distance between the ZT-MNS-100BAS panel and the various speaker/zones connected to it.
The ZT-MNS-70V-XFMR can be mounted in a convenient location near the base panel. The transformer converts the 25 VRMS speaker output to 70 VRMS, thereby reducing power losses in long wire runs.
The transformer is housed in a 204mm x 178mm metal enclosure with no user controls inside. A five-conductor cable connects the transformer to the ZT-MNS-100BAS panel
Features
• 25 VRMS to 70 VRMS audio conversion for long wire runs
• Five conductor connection between ZT-MNS-100BAS and ZT-MNS-70-XFMR enclosure
• Mount conveniently near the ZT-MNS-100BAS
