Chain Actuator

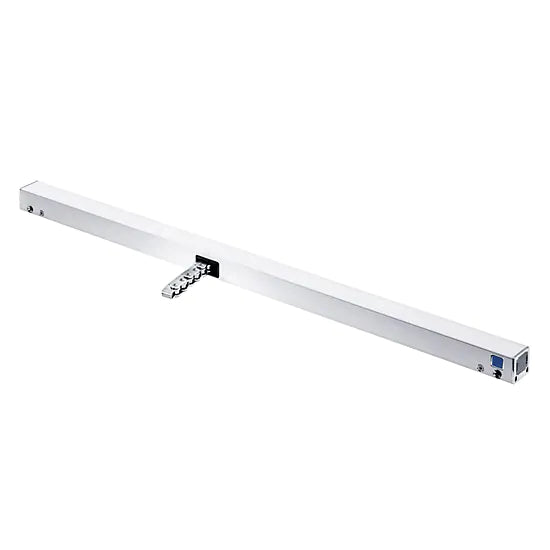

AUMULLER KS4 S12 24VDC Chain Drive 400N

Product Code: AUMULLER-521160
£618.02 excl. VAT
Chain Length
Rotation

Description

The KS4 chain drive - High performance in the smallest space
No other chain drive develops more power in such little space as the KS4 from AUMÜLLER. It sets the mark with ist advanced connectivity, independently integrates itself in a multi-drive system by means of M-COM-Click and communicates confidently with modern building management systems.

The elegant all-rounder for smoke and heat extraction as well as for natural ventilation is impressive in terms of modularity. The drive creates design freedom, enables simple installation and integrates seamlessly into modern facade systems.

The KS4 integrates excellently - whether surface-mounted or profile-mounted. What it achieves causes quite a stir: The small, powerful drive enables particularly large opening widths

With the Click solutions from AUMÜLLER, KS4 drives can be customised in no time at all. By combining the different components, individual solutions are created - without any
tools or tedious configurations.

KS4 features and technical data:
Operating voltage 24 V DC
Cut-off current 1.2 A
Protection type IP32
Ambient temperature -5 °C ... +60 °C
Tensile force/thrust max. 400 N
Holding force 1,800 N (depending on mounting)
Chain Stainless steel without protruding rivet heads
Connection cable Halogen-free, grey 5 x 0.5 mm², ~ 3 m
Speed Programmable 5 - 14 mm/s
Stroke 200 – 1,000 mm

Download Data Sheets

Click the PDF to download each individual data sheet.
