Chain Actuator

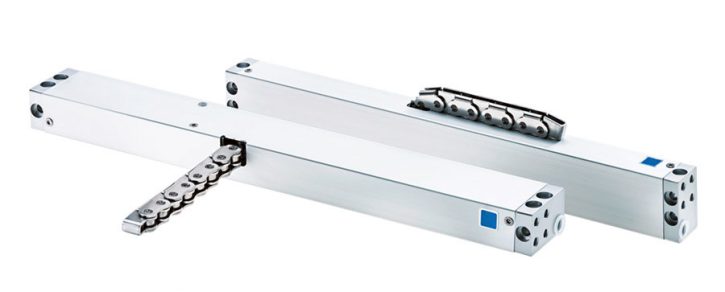

AUMULLER KS2 S2 24VDC Chain Drive 200N R

Product Code: AUMULLER-520160
£373.71 excl. VAT
Chain Length

Description

Safety should not be a question of size. That is why the KS2 chain drive provides the greatest possibility of safety even in the smallest spaces. 250 N power combined with a compact drive makes integrated profile assembly possible and qualify KS2 chain drives for optimal safe opening and closing of windows.

PRODUCT FEATURES KS2

  • For natural ventilation, smoke and heat exhausting systems and ferralux® NRWG (EN12101-2)
  • Versions R (right) or L (left) or TWIN
  • Aluminium housing anodized  or optionally in RAL colors
  • High-quality stainless steel sidebow roller chain, without protruding rivet heads
  • Slim line body that suits concealed fitting within profiles
  • Rigid drive mounting on frame without brackets
  • Programmable parameters of Intelligent Control Electronics S12
      Synchronised multi-operation and sequence control without add. devices
      Electronic soft-start, soft-close and soft-stop at end of stroke control
      Stroke, force, speed
      Rebate control
  • Suitable for operation with M-COM for the automatic configuration of synchronised run of multi drive systems and sequence control

Download Data Sheets

Click the PDF to download each individual data sheet.

{"id":15039448088962,"title":"AUMULLER KS2 S2 24VDC Chain Drive 200N R","handle":"ks2-s2-24vdc-chain-drive-200n-r","description":"\u003cdiv class=\"page-content content-0 product-header-text\"\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-24 col-lg-20 col-xl-16 mx-auto\"\u003e\n\u003cdiv id=\"c524\" class=\"frame frame-default frame-type-text frame-layout-0\"\u003e\n\u003cdiv class=\"row justify-content-center\"\u003e\n\u003cdiv class=\"col-24 text-center\"\u003e\n\u003cdiv class=\"lead\"\u003e\n\u003cp\u003eSafety should not be a question of size. That is why the KS2 chain drive provides the greatest possibility of safety even in the smallest spaces. 250 N power combined with a compact drive makes integrated profile assembly possible and qualify KS2 chain drives for optimal safe opening and closing of windows.\u003c\/p\u003e\n\u003cp\u003ePRODUCT FEATURES KS2\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFor natural ventilation, smoke and heat exhausting systems and ferralux® NRWG (EN12101-2)\u003c\/li\u003e\n\u003cli\u003eVersions R (right) or L (left) or TWIN\u003c\/li\u003e\n\u003cli\u003eAluminium housing anodized  or optionally in RAL colors\u003c\/li\u003e\n\u003cli\u003eHigh-quality stainless steel sidebow roller chain, without protruding rivet heads\u003c\/li\u003e\n\u003cli\u003eSlim line body that suits concealed fitting within profiles\u003c\/li\u003e\n\u003cli\u003eRigid drive mounting on frame without brackets\u003c\/li\u003e\n\u003cli\u003eProgrammable parameters of Intelligent Control Electronics S12\u003cbr\u003e  Synchronised multi-operation and sequence control without add. devices\u003cbr\u003e  Electronic soft-start, soft-close and soft-stop at end of stroke control\u003cbr\u003e  Stroke, force, speed\u003cbr\u003e  Rebate control\u003c\/li\u003e\n\u003cli\u003eSuitable for operation with M-COM for the automatic configuration of synchronised run of multi drive systems and sequence control\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2025-10-13T13:50:12+01:00","created_at":"2025-07-21T12:05:30+01:00","vendor":"AUMULLER","type":"Chain Actuator","tags":["Actuators","Aumuller","Chain Actuator"],"price":37371,"price_min":37371,"price_max":45343,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55452732752258,"title":"200mm","option1":"200mm","option2":null,"option3":null,"sku":"AUMULLER-520160","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AUMULLER KS2 S2 24VDC Chain Drive 200N R - 200mm","public_title":"200mm","options":["200mm"],"price":37371,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55452732785026,"title":"300mm","option1":"300mm","option2":null,"option3":null,"sku":"AUMULLER-520180","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AUMULLER KS2 S2 24VDC Chain Drive 200N R - 300mm","public_title":"300mm","options":["300mm"],"price":37371,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55452732817794,"title":"400mm","option1":"400mm","option2":null,"option3":null,"sku":"AUMULLER-521120","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AUMULLER KS2 S2 24VDC Chain Drive 200N R - 400mm","public_title":"400mm","options":["400mm"],"price":38835,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55452732850562,"title":"500mm","option1":"500mm","option2":null,"option3":null,"sku":"AUMULLER-521130","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AUMULLER KS2 S2 24VDC Chain Drive 200N R - 500mm","public_title":"500mm","options":["500mm"],"price":40700,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55452732883330,"title":"600mm","option1":"600mm","option2":null,"option3":null,"sku":"AUMULLER-521140","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AUMULLER KS2 S2 24VDC Chain Drive 200N R - 600mm","public_title":"600mm","options":["600mm"],"price":40700,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55452732916098,"title":"800mm","option1":"800mm","option2":null,"option3":null,"sku":"AUMULLER-521150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AUMULLER KS2 S2 24VDC Chain Drive 200N R - 800mm","public_title":"800mm","options":["800mm"],"price":45343,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/Aumuller-KS2-Chain-drive-actuator-725x292.jpg?v=1753951682"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/Aumuller-KS2-Chain-drive-actuator-725x292.jpg?v=1753951682","options":["Chain Length"],"media":[{"alt":null,"id":65192771289474,"position":1,"preview_image":{"aspect_ratio":2.483,"height":292,"width":725,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/Aumuller-KS2-Chain-drive-actuator-725x292.jpg?v=1753951682"},"aspect_ratio":2.483,"height":292,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/Aumuller-KS2-Chain-drive-actuator-725x292.jpg?v=1753951682","width":725}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv class=\"page-content content-0 product-header-text\"\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-24 col-lg-20 col-xl-16 mx-auto\"\u003e\n\u003cdiv id=\"c524\" class=\"frame frame-default frame-type-text frame-layout-0\"\u003e\n\u003cdiv class=\"row justify-content-center\"\u003e\n\u003cdiv class=\"col-24 text-center\"\u003e\n\u003cdiv class=\"lead\"\u003e\n\u003cp\u003eSafety should not be a question of size. That is why the KS2 chain drive provides the greatest possibility of safety even in the smallest spaces. 250 N power combined with a compact drive makes integrated profile assembly possible and qualify KS2 chain drives for optimal safe opening and closing of windows.\u003c\/p\u003e\n\u003cp\u003ePRODUCT FEATURES KS2\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFor natural ventilation, smoke and heat exhausting systems and ferralux® NRWG (EN12101-2)\u003c\/li\u003e\n\u003cli\u003eVersions R (right) or L (left) or TWIN\u003c\/li\u003e\n\u003cli\u003eAluminium housing anodized  or optionally in RAL colors\u003c\/li\u003e\n\u003cli\u003eHigh-quality stainless steel sidebow roller chain, without protruding rivet heads\u003c\/li\u003e\n\u003cli\u003eSlim line body that suits concealed fitting within profiles\u003c\/li\u003e\n\u003cli\u003eRigid drive mounting on frame without brackets\u003c\/li\u003e\n\u003cli\u003eProgrammable parameters of Intelligent Control Electronics S12\u003cbr\u003e  Synchronised multi-operation and sequence control without add. devices\u003cbr\u003e  Electronic soft-start, soft-close and soft-stop at end of stroke control\u003cbr\u003e  Stroke, force, speed\u003cbr\u003e  Rebate control\u003c\/li\u003e\n\u003cli\u003eSuitable for operation with M-COM for the automatic configuration of synchronised run of multi drive systems and sequence control\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
AUMULLER

AUMULLER KS2 S2 24VDC Chain Drive 200N R

From £373.71 excl. VAT

Safety should not be a question of size. That is why the KS2 chain drive provides the greatest possibility of safety even in the smallest spaces. 250 N power combined with a compact drive makes integrated profile assembly possible and qualify KS2 chain drives for optimal safe opening and closing of windows.

PRODUCT FEATURES KS2

  • For natural ventilation, smoke and heat exhausting systems and ferralux® NRWG (EN12101-2)
  • Versions R (right) or L (left) or TWIN
  • Aluminium housing anodized  or optionally in RAL colors
  • High-quality stainless steel sidebow roller chain, without protruding rivet heads
  • Slim line body that suits concealed fitting within profiles
  • Rigid drive mounting on frame without brackets
  • Programmable parameters of Intelligent Control Electronics S12
      Synchronised multi-operation and sequence control without add. devices
      Electronic soft-start, soft-close and soft-stop at end of stroke control
      Stroke, force, speed
      Rebate control
  • Suitable for operation with M-COM for the automatic configuration of synchronised run of multi drive systems and sequence control

Chain Length

  • 200mm
  • 300mm
  • 400mm
  • 500mm
  • 600mm
  • 800mm
