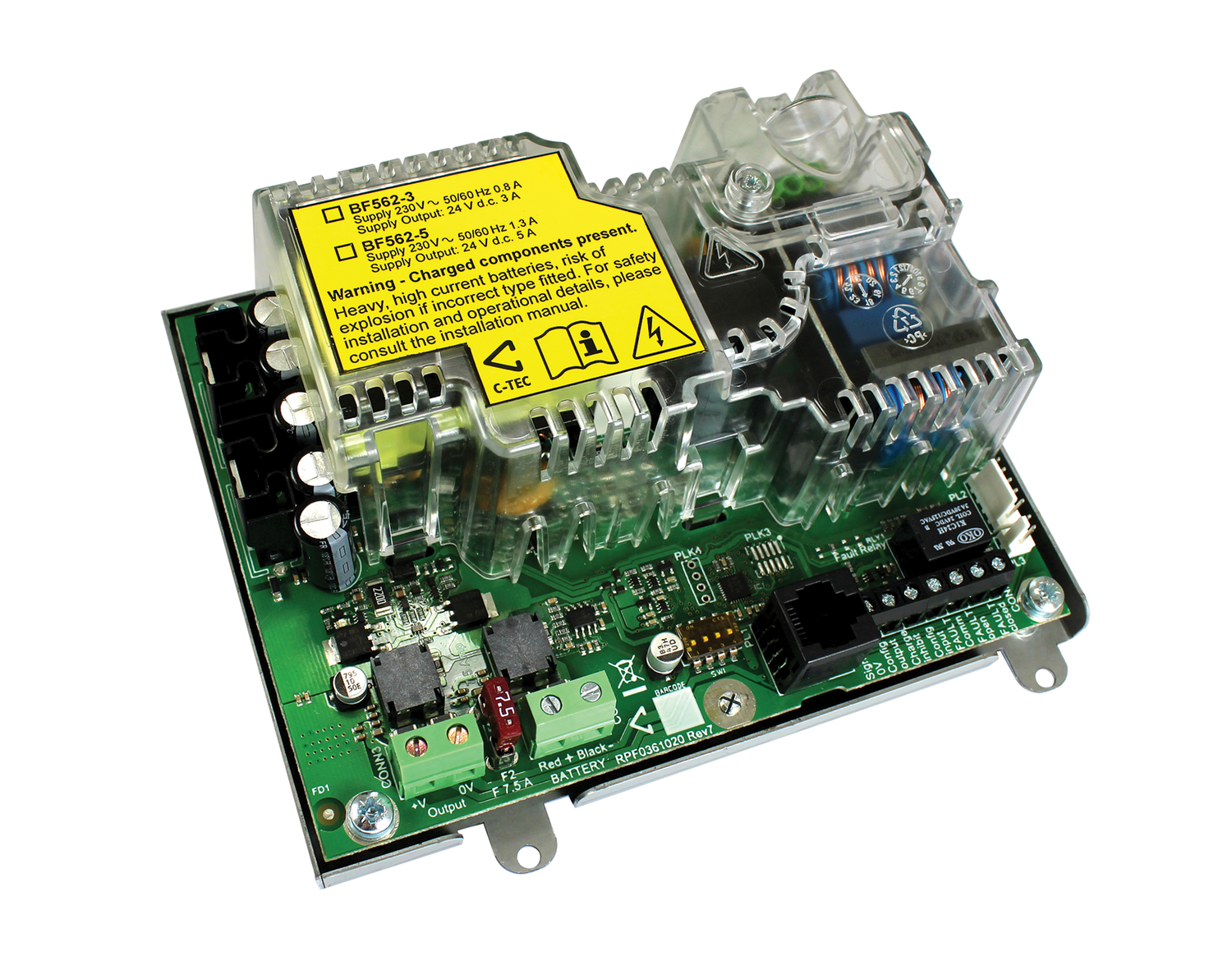

PSU 5 Series 24V 5A boxed Switch Mode caged
PSU 5 Series 24V 5A boxed Switch Mode caged is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- A powerful switch mode/digital hybrid PSU that can be customised to suit your exact requirements – see More Information tab for details.
- Plastic cover on PSU PCB guards against touching live parts (to VDE 0100-410).
- Includes the same electronics as our BF562-5 LPCB/VDS certified EN54-4/A2 boxed 24V 5A PSU.
- Metal base plate facilitates straightforward mounting inside third-party OEM enclosures.
- Includes a single-pole volt-free changeover relay that switches for any fault condition.
- Includes a fault type & hazardous voltages present LED.
- Two selectable battery charge currents.
- Battery fault impedance limits can be optimised to suit load current (helps extend battery life)*.
- Mains fail simulation mode.
- Improved on-board temperature sensor with optional remote sensor.
- Electronic functions comply with EN50131-6 grades 1-4 for security applications.
Technical Specifications
| Approvals/certifications |
Includes the same electronics as our EN54-4/A2 certified BF562-5 PSU |
|---|---|
| Compatibility |
*** Full compliance with all relevant standards must be checked by the responsible person with the caged PSU installed in a suitable enclosure *** |
| Application/operation |
An encased Mains to regulated DC switch-mode/digital hybrid power supply providing 5A @ 24V DC. It includes a single pole volt-free changeover relay that switches for any fault condition. User cust |
| Mains supply |
230V 50/60Hz. |
| Mains rated current |
1.3A r.m.s. |
| Total output current limited to |
5A (Max. output current). |
| Output |
I max.a: 4.6A or 4A selectable. A load greater than I max.a will temporarily reduce batt. charging. I.max.b: 5A, charging turned off via CONN6. Output is also customisable via a BF423 Configurator* |
| Battery charge capacity |
2.5Ah up to 17Ah (battery charged to 80% capacity in 24hrs). Output is customisable via a BF423 Configurator to suit different manufacturers' batteries*. |
| Max battery size and type |
Up to 17Ah VRLA dependent on the size of the enclosure the BF562-5/E is mounted in. |
| Indicators |
Supply Present (Green); General Fault (Amber); Auxiliary Fault (Amber); Hazardous Voltages Present (Red). |
| Connections |

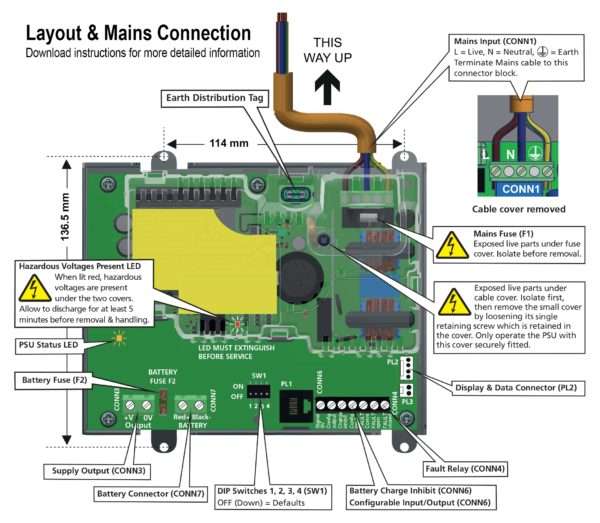

Mains Input (CONN1); Supply Output (CONN3); Battery Input (CONN3); Fault Relay (CONN4); Charge Off Input (CONN5). Battery Charge Current Link (PLK1); Battery Monitoring On/Off Link (PLK2); High Tem |
| Expansion connections |
A remote thermistor can be connected via PL3 terminals. |
| Product dimensions (mm) |
143mm H x 173mm W x 66mm D. |
| Construction & finish |
Zintec base, polycarbonate cover. |
| IP Rating |
Dependent on mounting enclosure. |
| Weight |
665g (without batteries). |
| Operating conditions/temperature |
-5ºC to +40ºC. Max relative humidity: 95%. |
