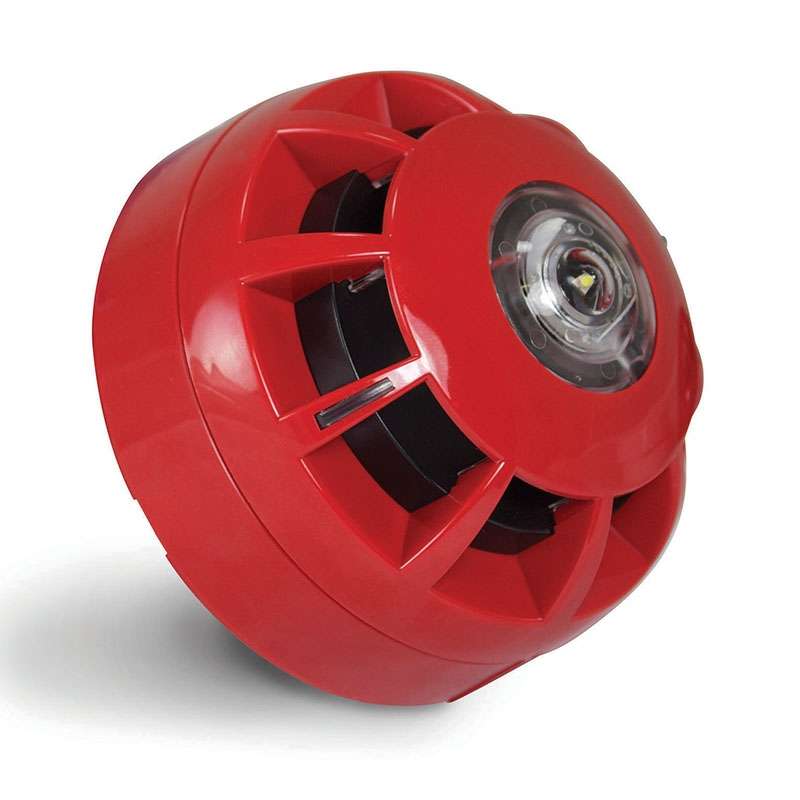

CX compact addressable Visual Alarm Device RED - APOLLO XFP95/DISCOVERY
CX compact addressable Visual Alarm Device RED - APOLLO XFP95/DISCOVERY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek.

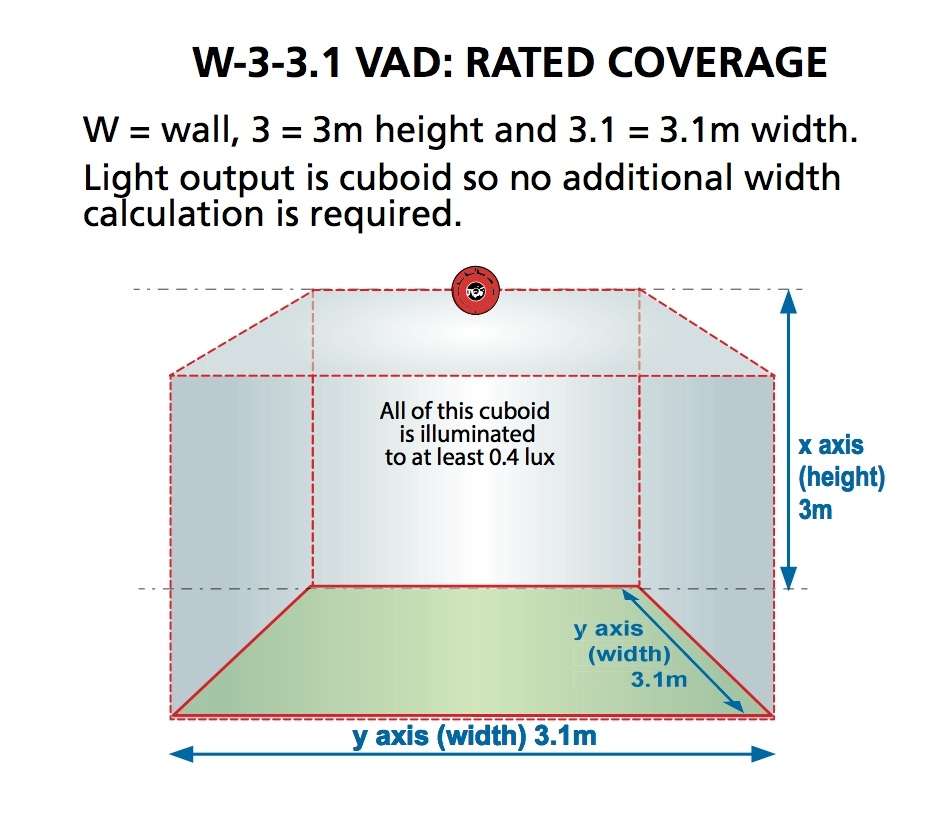

- Provides ‘W-3-3.1’ light distribution when wall mounted (min 0.4 lux over a 3 x 8m cylindrical area).

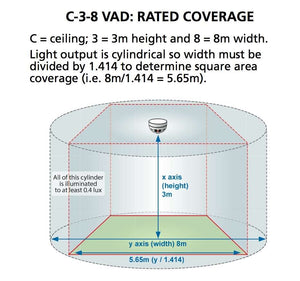

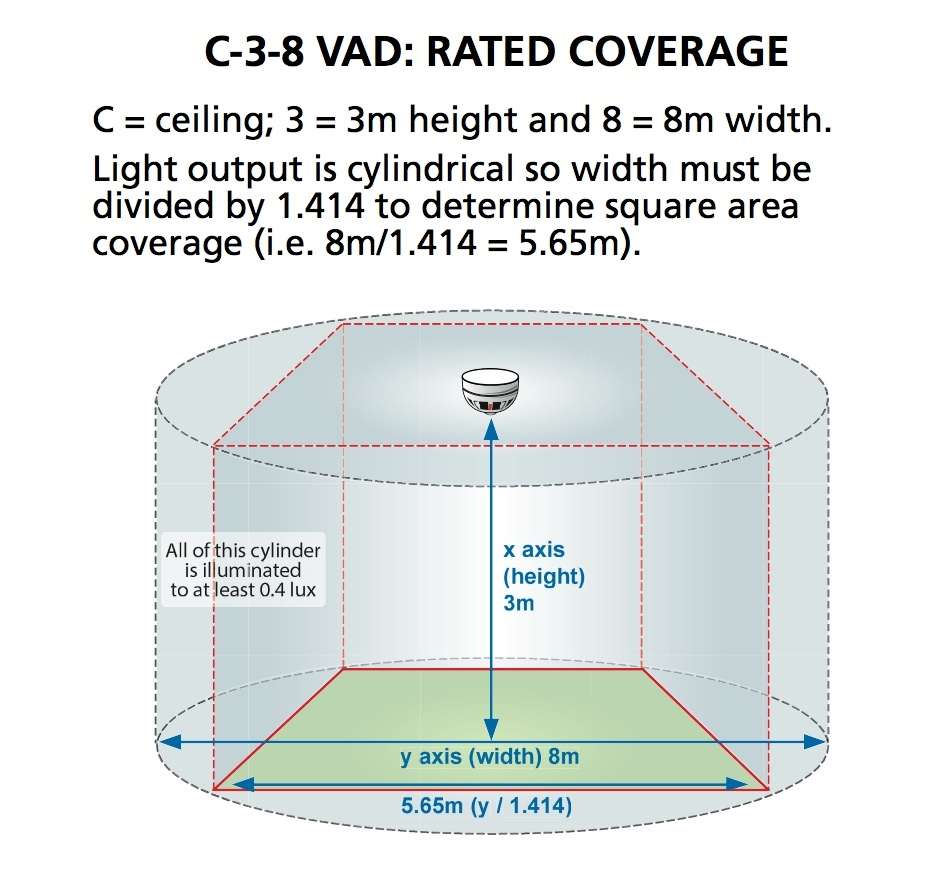

- Can also provide ‘C-3-8’ light distribution when ceiling mounted (min. 0.4 lux over a 2.4 x 3.5m cuboid area).
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 10mA alarm current @24V DC.
- Group addressing facility allows multiple devices to be operated simultaneously.
- IP21C rated.
Technical Specifications
| Approvals/certifications |
Certified to EN54-23 & 17 by Intertek. |
|---|---|
| Protocol/compatibility |
Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
| Application/operation |
Provides W-3-3.1 coverage when wall mounted. Alternatively can be ceiling mounted to provide C-3-8 coverage. |
| VAD category & coverage |
W-3-3.1 (30m3 cuboid coverage); C-3-8 (151m3 cylindrical coverage). |
| Flash rate & colour |
0.5Hz / White. |
| Supply/operating voltage |
21 to 28V DC. |
| Quiescent current |
550µA @ 24 VDC. |
| Alarm current |
10mA @24V DC |
| Indicators |
Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) |
102mm diameter x 63mm deep. |
| IP Rating |
IP21C |
| Weight |
170g. |
| Operating conditions/temperature |
-10ºC to +55ºC. Max. 95% RH (Non-condensing). |
