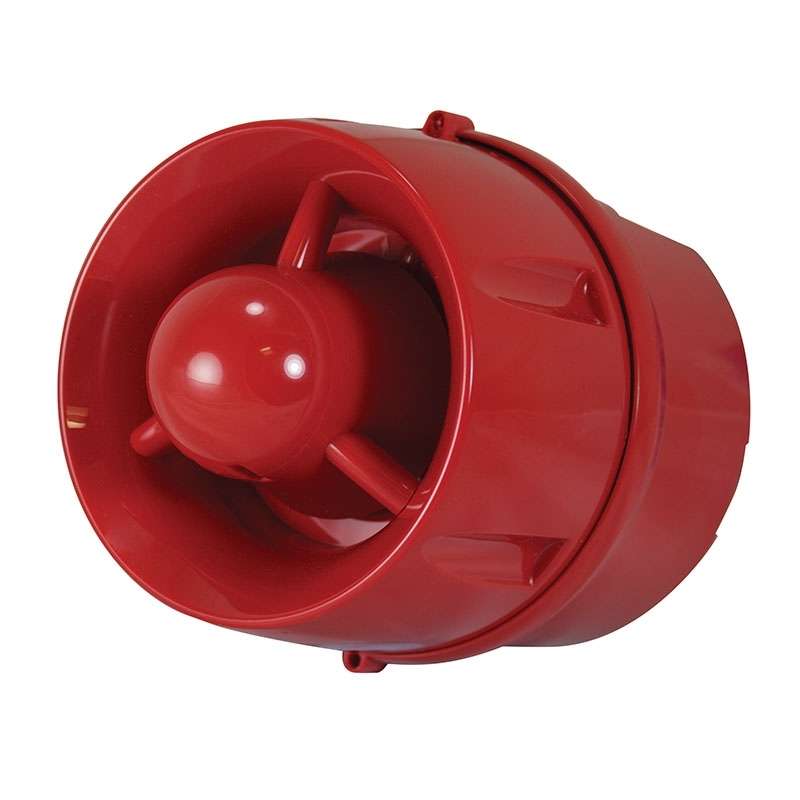

CAST Weatherproof Hi-Output Wall Sounder (deep base) (IP55) RED
CAST Weatherproof Hi-Output Wall Sounder (deep base) (IP55) RED is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- LPCB certified to EN54-3 & 17 and Kiwa Telefication & DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Impressive 100dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 6.5mA typical alarm current (460μA typical quiescent current) @24-40V DC (Sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- IP55C rated.
Technical Specifications
| Approvals/certifications |
Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-3 & 17 and Kiwa Telefication certified to EN54-13 |
|---|---|
| Protocol/compatibility |
Compatible with C-TEC's CAST protocol Addressable Fire Panels. |
| Application/operation |
Designed to be wall mounted. IP55 rated and suitable for use outdoors. |
| Supply/operating voltage |
24 to 40V DC. |
| Quiescent current |
460µA typical. |
| Nominal SPL (Sound Pressure Level) |
100dB(A) when set to tone 1. |
| Alarm current |
6.5mA typical @ 24-40V DC (Sounder on max). |
| Indicators |
Polling (red LED). |
| Product dimensions (mm) |
114mm diameter x 131mm deep. |
| IP Rating |
IP55C (Weatherproof). |
| Weight |
300g. |
| Operating conditions/temperature |
-10ºC to +55ºC. Max. 95% RH (Non-condensing).
|
CAST Weatherproof Hi-Output Wall Sounder (deep base) (IP55) RED
Download Data Sheets
Click the PDF to download each individual data sheet.
