Addressable Sensor Bases

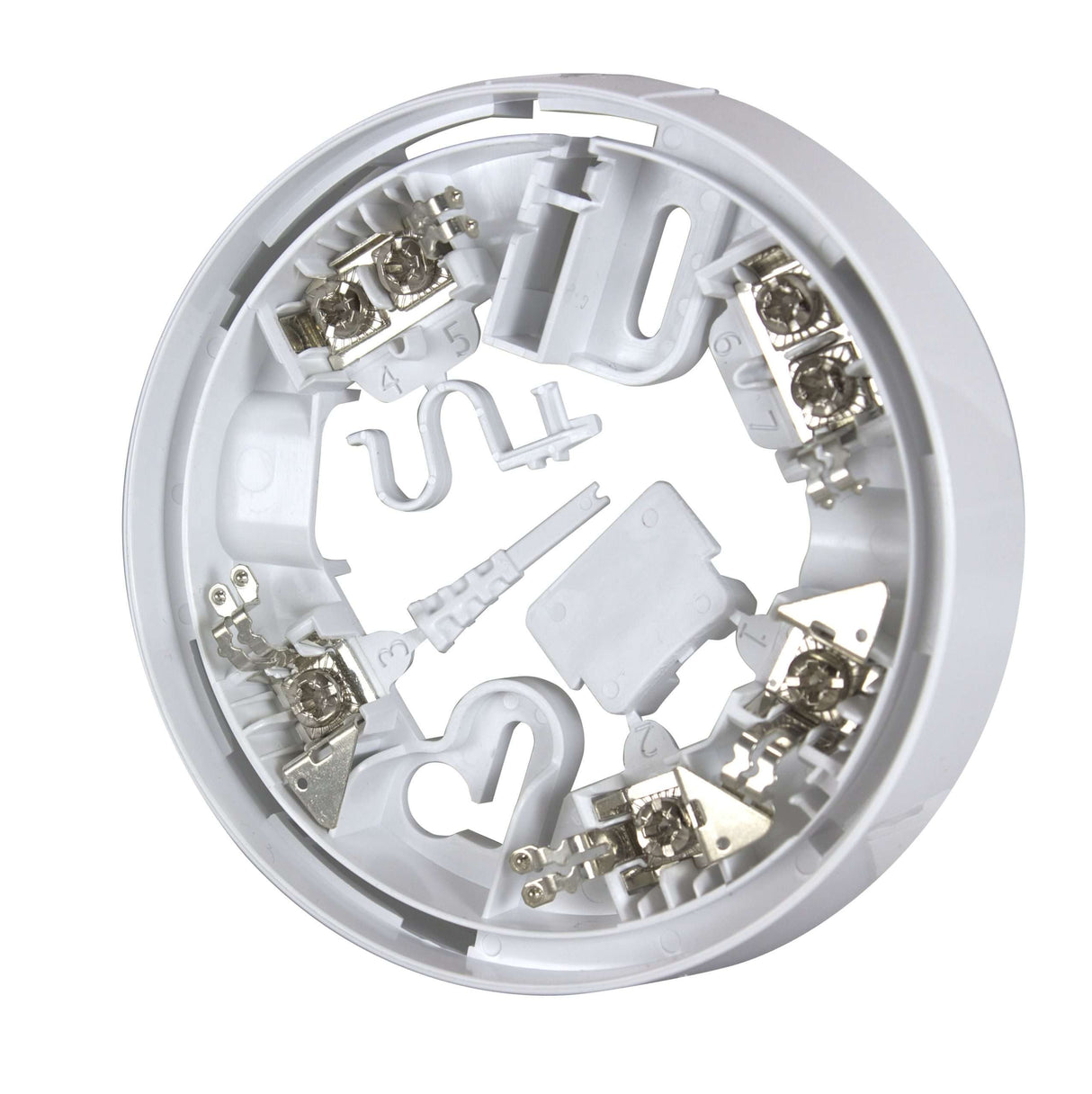

CAST Detector base

Product Code: CA408
£2.27 excl. VAT
Colour: White

2-3 Days Delivery

Description

  • Compatible with C-TEC’s entire range of CAST addressable detectors.
  • Third-party LPCB certified to the relevant parts of EN54 in conjunction with our CAST detectors.
  • Easy to fit with lots of working space.
  • Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all CAST detectors.
  • Integrated detector/base locking mechanism, head removal tool and ID tag.
  • Simple ‘click and twist’ design.
  • Also compatible with many of C-TEC’s CAST protocol sounder VADs.
  • Remote LED terminals for the optional connection to a BF318 Remote indicator.
  • Optional CA408R relay base also available.



Technical Specifications

Approvals/certifications

Certified to EN54-13 by Kiwa Telefication & DBI, Certified to the relevant parts of EN54 by the LPCB as part of our CAST fire detector certifications
Supply wiring

2-wire monitored, polarity sensitive.
Connections

(1) +V In, analogue switch; (2) +V Out, analogue switch; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. Terminals can accept up to 2.5mm fire rated cable.
Product dimensions (mm)

102.2mm diameter x 20.5mm deep.
Construction & finish

White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers.
IP Rating

IP42.
Weight

55g.

Download Data Sheets

Click the PDF to download each individual data sheet.

{"id":14978571305346,"title":"CAST Detector base","handle":"cast-detector-base","description":"\u003cul\u003e\n\u003cli\u003eCompatible with C-TEC’s entire range of CAST addressable detectors.\u003c\/li\u003e\n\u003cli\u003eThird-party LPCB certified to the relevant parts of EN54 in conjunction with our CAST detectors.\u003c\/li\u003e\n\u003cli\u003eEasy to fit with lots of working space.\u003c\/li\u003e\n\u003cli\u003eCan be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all CAST detectors.\u003c\/li\u003e\n\u003cli\u003eIntegrated detector\/base locking mechanism, head removal tool and ID tag.\u003c\/li\u003e\n\u003cli\u003eSimple ‘click and twist’ design.\u003c\/li\u003e\n\u003cli\u003eAlso compatible with many of C-TEC’s CAST protocol sounder VADs.\u003c\/li\u003e\n\u003cli\u003eRemote LED terminals for the optional connection to a BF318 Remote indicator.\u003c\/li\u003e\n\u003cli\u003eOptional CA408R relay base also available.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTechnical Specifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable aria-label=\"Product Details\" class=\"woocommerce-product-attributes shop_attributes\"\u003e\n\u003ctbody\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_approvalscertifications\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eApprovals\/certifications\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCertified to EN54-13 by Kiwa Telefication \u0026amp; DBI,\u003cspan\u003e \u003c\/span\u003eCertified to the relevant parts of EN54 by the LPCB as part of our CAST fire detector certifications\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_supplywiring\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eSupply wiring\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e2-wire monitored, polarity sensitive.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_connections\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eConnections\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e(1) +V In, analogue switch; (2) +V Out, analogue switch; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. Terminals can accept up to 2.5mm fire rated cable.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_productdimensionsmm\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eProduct dimensions (mm)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e102.2mm diameter x 20.5mm deep.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_constructionfinish\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eConstruction \u0026amp; finish\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eWhite polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws\/washers.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_iprating\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eIP Rating\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eIP42.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_weight\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eWeight\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e55g.  \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2025-06-23T12:27:56+01:00","created_at":"2025-05-06T14:16:58+01:00","vendor":"C-Tec","type":"Addressable Sensor Bases","tags":["Addressable Sensor Bases","C-Tec","Commercial","Fire Detection","fire rated","Fire Safety","Residential"],"price":227,"price_min":227,"price_max":552,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55180079071618,"title":"White","option1":"White","option2":null,"option3":null,"sku":"CA408","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CAST Detector base - White","public_title":"White","options":["White"],"price":227,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55180079104386,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"CA408B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CAST Detector base - Black","public_title":"Black","options":["Black"],"price":552,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_7_7_5_775-CA408-CAST-Base-scaled.jpg?v=1750334114"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_7_7_5_775-CA408-CAST-Base-scaled.jpg?v=1750334114","options":["Colour"],"media":[{"alt":null,"id":64889545523586,"position":1,"preview_image":{"aspect_ratio":0.998,"height":2560,"width":2555,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_7_7_5_775-CA408-CAST-Base-scaled.jpg?v=1750334114"},"aspect_ratio":0.998,"height":2560,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_7_7_5_775-CA408-CAST-Base-scaled.jpg?v=1750334114","width":2555}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cul\u003e\n\u003cli\u003eCompatible with C-TEC’s entire range of CAST addressable detectors.\u003c\/li\u003e\n\u003cli\u003eThird-party LPCB certified to the relevant parts of EN54 in conjunction with our CAST detectors.\u003c\/li\u003e\n\u003cli\u003eEasy to fit with lots of working space.\u003c\/li\u003e\n\u003cli\u003eCan be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all CAST detectors.\u003c\/li\u003e\n\u003cli\u003eIntegrated detector\/base locking mechanism, head removal tool and ID tag.\u003c\/li\u003e\n\u003cli\u003eSimple ‘click and twist’ design.\u003c\/li\u003e\n\u003cli\u003eAlso compatible with many of C-TEC’s CAST protocol sounder VADs.\u003c\/li\u003e\n\u003cli\u003eRemote LED terminals for the optional connection to a BF318 Remote indicator.\u003c\/li\u003e\n\u003cli\u003eOptional CA408R relay base also available.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTechnical Specifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable aria-label=\"Product Details\" class=\"woocommerce-product-attributes shop_attributes\"\u003e\n\u003ctbody\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_approvalscertifications\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eApprovals\/certifications\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCertified to EN54-13 by Kiwa Telefication \u0026amp; DBI,\u003cspan\u003e \u003c\/span\u003eCertified to the relevant parts of EN54 by the LPCB as part of our CAST fire detector certifications\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_supplywiring\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eSupply wiring\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e2-wire monitored, polarity sensitive.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_connections\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eConnections\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e(1) +V In, analogue switch; (2) +V Out, analogue switch; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. Terminals can accept up to 2.5mm fire rated cable.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_productdimensionsmm\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eProduct dimensions (mm)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e102.2mm diameter x 20.5mm deep.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_constructionfinish\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eConstruction \u0026amp; finish\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eWhite polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws\/washers.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_iprating\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eIP Rating\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eIP42.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_weight\"\u003e\n\u003cth scope=\"row\" class=\"woocommerce-product-attributes-item__label\"\u003eWeight\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e55g.  \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}
C-Tec

CAST Detector base

From £2.27 excl. VAT



Technical Specifications

Approvals/certifications

Certified to EN54-13 by Kiwa Telefication & DBI, Certified to the relevant parts of EN54 by the LPCB as part of our CAST fire detector certifications
Supply wiring

2-wire monitored, polarity sensitive.
Connections

(1) +V In, analogue switch; (2) +V Out, analogue switch; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. Terminals can accept up to 2.5mm fire rated cable.
Product dimensions (mm)

102.2mm diameter x 20.5mm deep.
Construction & finish

White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers.
IP Rating

IP42.
Weight

55g.
