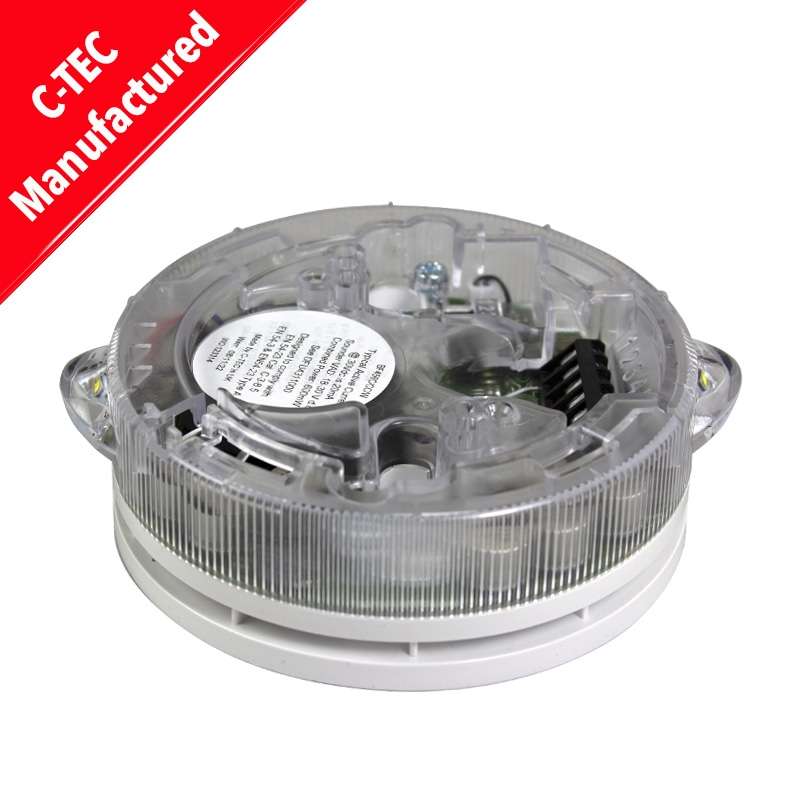

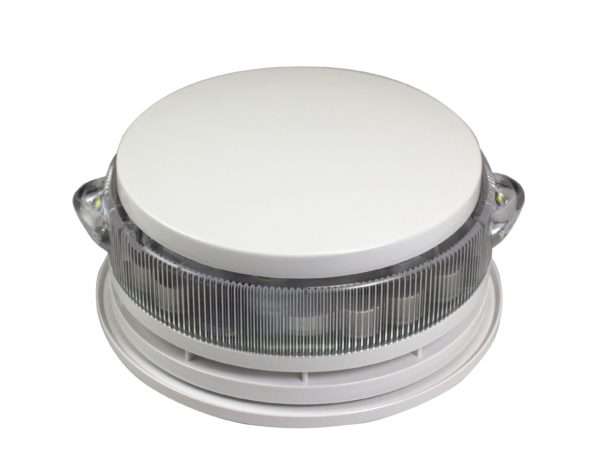

ActiV C Class Base sounder VAD WHITE

{"id":14978569896322,"title":"ActiV C Class Base sounder VAD WHITE","handle":"activ-c-class-base-sounder-vad-white","description":"\u003cul\u003e\n\u003cli\u003eThird-party certified to EN54-3 (Sounders) and EN54-23 (VADs).\u003c\/li\u003e\n\u003cli\u003eProvides ‘C-3-8.5’ light distribution (min 0.4 lux over a 3 x 8.5m cylindrical area).\u003c\/li\u003e\n\u003cli\u003eImpressive 96dB(A) sound output @ 1m.\u003c\/li\u003e\n\u003cli\u003eIncludes 31 selectable primary tones and an optional secondary tone.\u003c\/li\u003e\n\u003cli\u003eTwo volume levels (high and low)\u003c\/li\u003e\n\u003cli\u003eThree selectable VAD flash rates (0.5Hz, 1Hz, OFF)\u003c\/li\u003e\n\u003cli\u003eAlarm Current at 30Vdc = 12.2mA (0.5Hz) or 19.5mA (1Hz)\u003c\/li\u003e\n\u003cli\u003eAlarm Current at 18Vdc = 14.5mA (0.5Hz) or 25mA (1Hz)\u003c\/li\u003e\n\u003cli\u003eOptional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.\u003c\/li\u003e\n\u003cli\u003eSupplied with a BF431QCP quick connect plate and detector spur wires.\u003c\/li\u003e\n\u003cli\u003eIP21C rated.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTechnical Specifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable class=\"woocommerce-product-attributes shop_attributes\" aria-label=\"Product Details\"\u003e\n\u003ctbody\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_approvalscertifications\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eApprovals\/certifications\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCertified to EN54-3 \u0026amp; 23 by the LPCB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_protocolcompatibility\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eProtocol\/compatibility\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCompatible with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and virtually all other makes (testing on third-party panels is recommended before use)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_applicationoperation\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eApplication\/operation\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eDesigned to be ceiling mounted – either stand-alone with a red or white cap or as part of a stacked Sounder\/VAD\/Detector Base combination.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_vadcategorycoverage\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eVAD category \u0026amp; coverage\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eC-3-8.5 (151m3 cylindrical coverage).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_flashratecolour\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eFlash rate \u0026amp; colour\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e0.5Hz; 1Hz or OFF \/ White.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_supplyoperatingvoltage\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eSupply\/operating voltage\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e18 to 30V DC.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_nominalsplsoundpressurelevel\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eNominal SPL (Sound Pressure Level)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e96dB(A).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_alarmcurrent\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eAlarm current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eAt 30Vdc: 12.2mA (0.5Hz) or 19.5mA (1Hz); At 18Vdc: 14.5mA (0.5Hz) or 25mA (1Hz)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_productdimensionsmm\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eProduct dimensions (mm)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e122mm diameter x 46mm deep (not including optional detector and base).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_iprating\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eIP Rating\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eIP21C (Type A).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_weight\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eWeight\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e170g.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_c5-operatingconditionstempera\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eOperating conditions\/temperature\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e-10ºC to +55ºC. Max. 95% RH (Non-condensing).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_notes\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eNotes\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eFor compliance to EN54-3 \u0026amp; EN54-23, the BF431QCP Quick Connect Plate must be used with the base device. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2025-06-23T12:45:25+01:00","created_at":"2025-05-06T14:16:28+01:00","vendor":"C-Tec","type":"Conventional Sounders","tags":["C-Tec","Commercial","Conventional Sounders","Fire Detection","Fire rated","Fire Safety","Residential"],"price":3303,"price_min":3303,"price_max":3303,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55180077138306,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"BF456C\/CC\/W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ActiV C Class Base sounder VAD WHITE","public_title":null,"options":["Default Title"],"price":3303,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_4_1464-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder-with-detector-and-base-600x543.jpg?v=1750337328","\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_3_1463-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder-Lid-600x470.jpg?v=1750337328","\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_2_1462-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder.jpg?v=1750337328"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_4_1464-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder-with-detector-and-base-600x543.jpg?v=1750337328","options":["Title"],"media":[{"alt":null,"id":64889731154306,"position":1,"preview_image":{"aspect_ratio":1.105,"height":543,"width":600,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_4_1464-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder-with-detector-and-base-600x543.jpg?v=1750337328"},"aspect_ratio":1.105,"height":543,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_4_1464-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder-with-detector-and-base-600x543.jpg?v=1750337328","width":600},{"alt":null,"id":64889731121538,"position":2,"preview_image":{"aspect_ratio":1.277,"height":470,"width":600,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_3_1463-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder-Lid-600x470.jpg?v=1750337328"},"aspect_ratio":1.277,"height":470,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_3_1463-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder-Lid-600x470.jpg?v=1750337328","width":600},{"alt":null,"id":64889731088770,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_2_1462-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder.jpg?v=1750337328"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/p_1_4_6_2_1462-C-3-8.5-ActiV-Conventional-Base-VAD-cw-96dBA-Sounder.jpg?v=1750337328","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cul\u003e\n\u003cli\u003eThird-party certified to EN54-3 (Sounders) and EN54-23 (VADs).\u003c\/li\u003e\n\u003cli\u003eProvides ‘C-3-8.5’ light distribution (min 0.4 lux over a 3 x 8.5m cylindrical area).\u003c\/li\u003e\n\u003cli\u003eImpressive 96dB(A) sound output @ 1m.\u003c\/li\u003e\n\u003cli\u003eIncludes 31 selectable primary tones and an optional secondary tone.\u003c\/li\u003e\n\u003cli\u003eTwo volume levels (high and low)\u003c\/li\u003e\n\u003cli\u003eThree selectable VAD flash rates (0.5Hz, 1Hz, OFF)\u003c\/li\u003e\n\u003cli\u003eAlarm Current at 30Vdc = 12.2mA (0.5Hz) or 19.5mA (1Hz)\u003c\/li\u003e\n\u003cli\u003eAlarm Current at 18Vdc = 14.5mA (0.5Hz) or 25mA (1Hz)\u003c\/li\u003e\n\u003cli\u003eOptional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.\u003c\/li\u003e\n\u003cli\u003eSupplied with a BF431QCP quick connect plate and detector spur wires.\u003c\/li\u003e\n\u003cli\u003eIP21C rated.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTechnical Specifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable class=\"woocommerce-product-attributes shop_attributes\" aria-label=\"Product Details\"\u003e\n\u003ctbody\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_approvalscertifications\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eApprovals\/certifications\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCertified to EN54-3 \u0026amp; 23 by the LPCB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_protocolcompatibility\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eProtocol\/compatibility\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eCompatible with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and virtually all other makes (testing on third-party panels is recommended before use)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_applicationoperation\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eApplication\/operation\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eDesigned to be ceiling mounted – either stand-alone with a red or white cap or as part of a stacked Sounder\/VAD\/Detector Base combination.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_vadcategorycoverage\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eVAD category \u0026amp; coverage\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eC-3-8.5 (151m3 cylindrical coverage).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_flashratecolour\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eFlash rate \u0026amp; colour\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e0.5Hz; 1Hz or OFF \/ White.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_supplyoperatingvoltage\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eSupply\/operating voltage\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e18 to 30V DC.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_nominalsplsoundpressurelevel\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eNominal SPL (Sound Pressure Level)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e96dB(A).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_alarmcurrent\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eAlarm current\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eAt 30Vdc: 12.2mA (0.5Hz) or 19.5mA (1Hz); At 18Vdc: 14.5mA (0.5Hz) or 25mA (1Hz)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_productdimensionsmm\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eProduct dimensions (mm)\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e122mm diameter x 46mm deep (not including optional detector and base).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_iprating\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eIP Rating\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eIP21C (Type A).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_weight\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eWeight\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e170g.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_c5-operatingconditionstempera\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eOperating conditions\/temperature\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003e-10ºC to +55ºC. Max. 95% RH (Non-condensing).\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_pa_notes\"\u003e\n\u003cth class=\"woocommerce-product-attributes-item__label\" scope=\"row\"\u003eNotes\u003c\/th\u003e\n\u003ctd class=\"woocommerce-product-attributes-item__value\"\u003e\n\u003cp\u003eFor compliance to EN54-3 \u0026amp; EN54-23, the BF431QCP Quick Connect Plate must be used with the base device. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}
