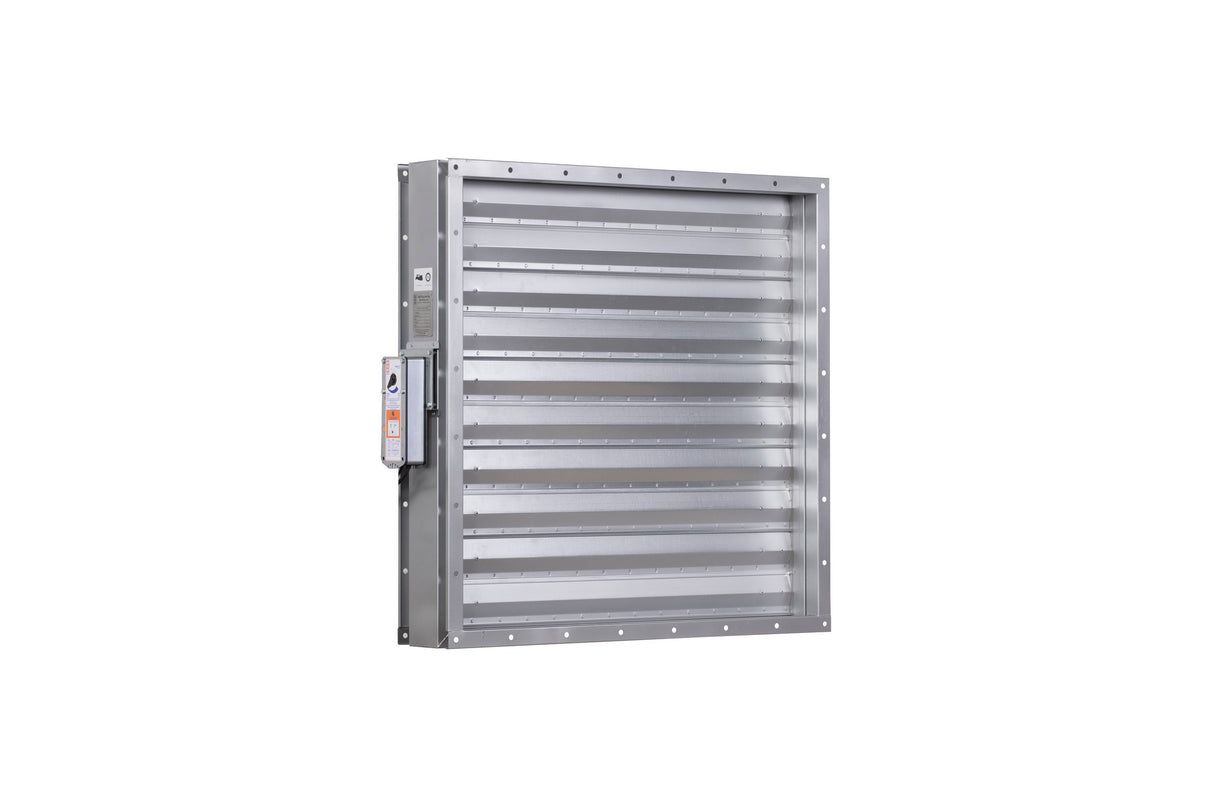

A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades

{"id":15113308668290,"title":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades","handle":"a60-series-a60-type-c-1-2mm-galvanised-steel-case-430-grade-stainless-steel-blades","description":"\u003cp\u003eThe BSB A60 multi-blade Marine motorised Fire Damper is designed for use on marine vessels to protect the integrity of fire rated bulkheads and decks\u003c\/p\u003e\n\u003cp\u003eIt is suitable for applications where the maximum system pressure is 2000 Pa and duct velocities do not exceed 20 m\/s. The damper is ideal for both vertical and horizontal installations\u003cmeta charset=\"UTF-8\"\u003e\u003c\/p\u003e\n\u003cp\u003eThe BSB A60 multi-blade Marine motorised Fire Damper is MED and Merchant Shipping (Marine Equipment) Regulations certified for A60 fire performance – SI 2016\u003cbr\u003eUSCG Approved, SOLAS Compliant and Lloyds Register Certified to IMO Fire Test Procedures.\u003cbr\u003eLeakage to EN1751 with case leakage conforming to classes A, B, and C, and blade leakage to class B.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTesting, Approvals and conformities\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMED certified fire performance – 2014\/90\/EU\u003c\/li\u003e\n\u003cli\u003eMerchant Shipping Certified Fire performance – SI 2016 No.1025.\u003c\/li\u003e\n\u003cli\u003eLloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class AO, A15, A30 and A60 Division bulkheads and decks. In compliance with the appropriate Lloyds Register Rules and Regulations and with the international Convention for the Safety Of Life At Sea (SOLAS).\u003c\/li\u003e\n\u003cli\u003eUSCG (United States Coast Guard).\u003c\/li\u003e\n\u003cli\u003eCorrosion Tested to BSEN 60068-2-52.\u003c\/li\u003e\n\u003cli\u003eVibration Tested to BS EN 60068-2-6.\u003c\/li\u003e\n\u003cli\u003eEC Type Examination (Module B).\u003c\/li\u003e\n\u003cli\u003eEC (Module D).\u003c\/li\u003e\n\u003cli\u003eCertificate of Fire Approval.\u003c\/li\u003e\n\u003cli\u003eBRE Global Compliant to ISO 9001. Suitable for use in both vertical and horizontal applications, with airflow in either direction.\u003c\/li\u003e\n\u003cli\u003eAvailable with square\/rectangular flanged duct connections, sizes from 100mm x 100mm up to 1000mm x 1000mm, Circular sizes from 100mm dia up to 1000mm dia. in single section. Multiple assemblies for vertical installations only, up to maximum size of 2080mm x 1000mm. Casing and blade available in galvanised or stainless steel.\u003cmeta charset=\"UTF-8\"\u003e\n\u003cp\u003eThe BSB A60 multi-blade Marine motorised Fire Damper is MED and Merchant Shipping (Marine Equipment) Regulations certified for A60 fire performance – SI 2016\u003cbr\u003eUSCG Approved, SOLAS Compliant and Lloyds Register Certified to IMO Fire Test Procedures.\u003cbr\u003eLeakage to EN1751 with case leakage conforming to classes A, B, and C, and blade leakage to class B.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTesting, Approvals and conformities\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMED certified fire performance – 2014\/90\/EU\u003c\/li\u003e\n\u003cli\u003eMerchant Shipping Certified Fire performance – SI 2016 No.1025.\u003c\/li\u003e\n\u003cli\u003eLloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class AO, A15, A30 and A60 Division bulkheads and decks. In compliance with the appropriate Lloyds Register Rules and Regulations and with the international Convention for the Safety Of Life At Sea (SOLAS).\u003c\/li\u003e\n\u003cli\u003eUSCG (United States Coast Guard).\u003c\/li\u003e\n\u003cli\u003eCorrosion Tested to BSEN 60068-2-52.\u003c\/li\u003e\n\u003cli\u003eVibration Tested to BS EN 60068-2-6.\u003c\/li\u003e\n\u003cli\u003eEC Type Examination (Module B).\u003c\/li\u003e\n\u003cli\u003eEC (Module D).\u003c\/li\u003e\n\u003cli\u003eCertificate of Fire Approval.\u003c\/li\u003e\n\u003cli\u003eBRE Global Compliant to ISO 9001. Suitable for use in both vertical and horizontal applications, with airflow in either direction.\u003c\/li\u003e\n\u003cli\u003eAvailable with square\/rectangular flanged duct connections, sizes from 100mm x 100mm up to 1000mm x 1000mm, Circular sizes from 100mm dia up to 1000mm dia. in single section. Multiple assemblies for vertical installations only, up to maximum size of 2080mm x 1000mm. Casing and blade available in galvanised or stainless steel.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e","published_at":"2025-10-09T12:44:09+01:00","created_at":"2025-09-29T13:21:12+01:00","vendor":"BSB","type":"Damper","tags":["BSB","Damper","Marine fire damper"],"price":79647,"price_min":79647,"price_max":169789,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55736030331266,"title":"100mm","option1":"100mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 100mm","public_title":"100mm","options":["100mm"],"price":79647,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030364034,"title":"150mm","option1":"150mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 150mm","public_title":"150mm","options":["150mm"],"price":86095,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030396802,"title":"200mm","option1":"200mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 200mm","public_title":"200mm","options":["200mm"],"price":87994,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030429570,"title":"250mm","option1":"250mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-250","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 250mm","public_title":"250mm","options":["250mm"],"price":91747,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030462338,"title":"300mm","option1":"300mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 300mm","public_title":"300mm","options":["300mm"],"price":95931,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030495106,"title":"350mm","option1":"350mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-350","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 350mm","public_title":"350mm","options":["350mm"],"price":109653,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030527874,"title":"400mm","option1":"400mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-400","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 400mm","public_title":"400mm","options":["400mm"],"price":112208,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030560642,"title":"450mm","option1":"450mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-450","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 450mm","public_title":"450mm","options":["450mm"],"price":118002,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030593410,"title":"500mm","option1":"500mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 500mm","public_title":"500mm","options":["500mm"],"price":121198,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030626178,"title":"550mm","option1":"550mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-550","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 550mm","public_title":"550mm","options":["550mm"],"price":125591,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030658946,"title":"600mm","option1":"600mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 600mm","public_title":"600mm","options":["600mm"],"price":130758,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030691714,"title":"650mm","option1":"650mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-650","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 650mm","public_title":"650mm","options":["650mm"],"price":135242,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030724482,"title":"700mm","option1":"700mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-700","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 700mm","public_title":"700mm","options":["700mm"],"price":138780,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030757250,"title":"750mm","option1":"750mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-750","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 750mm","public_title":"750mm","options":["750mm"],"price":145383,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030790018,"title":"800mm","option1":"800mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-800","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 800mm","public_title":"800mm","options":["800mm"],"price":149172,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030822786,"title":"850mm","option1":"850mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-850","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 850mm","public_title":"850mm","options":["850mm"],"price":154060,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030855554,"title":"900mm","option1":"900mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 900mm","public_title":"900mm","options":["900mm"],"price":160212,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030888322,"title":"950mm","option1":"950mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-950","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 950mm","public_title":"950mm","options":["950mm"],"price":165345,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55736030921090,"title":"1000mm","option1":"1000mm","option2":null,"option3":null,"sku":"A60-C-C1-B2-1000","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"A60 Series, A60 Type C, 1.2mm Galvanised Steel Case, 430 Grade Stainless Steel Blades - 1000mm","public_title":"1000mm","options":["1000mm"],"price":169789,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/010b.jpg?v=1759482599"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/010b.jpg?v=1759482599","options":["Diameter"],"media":[{"alt":null,"id":65608737751426,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1267,"width":1900,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/010b.jpg?v=1759482599"},"aspect_ratio":1.5,"height":1267,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/010b.jpg?v=1759482599","width":1900}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe BSB A60 multi-blade Marine motorised Fire Damper is designed for use on marine vessels to protect the integrity of fire rated bulkheads and decks\u003c\/p\u003e\n\u003cp\u003eIt is suitable for applications where the maximum system pressure is 2000 Pa and duct velocities do not exceed 20 m\/s. The damper is ideal for both vertical and horizontal installations\u003cmeta charset=\"UTF-8\"\u003e\u003c\/p\u003e\n\u003cp\u003eThe BSB A60 multi-blade Marine motorised Fire Damper is MED and Merchant Shipping (Marine Equipment) Regulations certified for A60 fire performance – SI 2016\u003cbr\u003eUSCG Approved, SOLAS Compliant and Lloyds Register Certified to IMO Fire Test Procedures.\u003cbr\u003eLeakage to EN1751 with case leakage conforming to classes A, B, and C, and blade leakage to class B.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTesting, Approvals and conformities\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMED certified fire performance – 2014\/90\/EU\u003c\/li\u003e\n\u003cli\u003eMerchant Shipping Certified Fire performance – SI 2016 No.1025.\u003c\/li\u003e\n\u003cli\u003eLloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class AO, A15, A30 and A60 Division bulkheads and decks. In compliance with the appropriate Lloyds Register Rules and Regulations and with the international Convention for the Safety Of Life At Sea (SOLAS).\u003c\/li\u003e\n\u003cli\u003eUSCG (United States Coast Guard).\u003c\/li\u003e\n\u003cli\u003eCorrosion Tested to BSEN 60068-2-52.\u003c\/li\u003e\n\u003cli\u003eVibration Tested to BS EN 60068-2-6.\u003c\/li\u003e\n\u003cli\u003eEC Type Examination (Module B).\u003c\/li\u003e\n\u003cli\u003eEC (Module D).\u003c\/li\u003e\n\u003cli\u003eCertificate of Fire Approval.\u003c\/li\u003e\n\u003cli\u003eBRE Global Compliant to ISO 9001. Suitable for use in both vertical and horizontal applications, with airflow in either direction.\u003c\/li\u003e\n\u003cli\u003eAvailable with square\/rectangular flanged duct connections, sizes from 100mm x 100mm up to 1000mm x 1000mm, Circular sizes from 100mm dia up to 1000mm dia. in single section. Multiple assemblies for vertical installations only, up to maximum size of 2080mm x 1000mm. Casing and blade available in galvanised or stainless steel.\u003cmeta charset=\"UTF-8\"\u003e\n\u003cp\u003eThe BSB A60 multi-blade Marine motorised Fire Damper is MED and Merchant Shipping (Marine Equipment) Regulations certified for A60 fire performance – SI 2016\u003cbr\u003eUSCG Approved, SOLAS Compliant and Lloyds Register Certified to IMO Fire Test Procedures.\u003cbr\u003eLeakage to EN1751 with case leakage conforming to classes A, B, and C, and blade leakage to class B.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTesting, Approvals and conformities\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMED certified fire performance – 2014\/90\/EU\u003c\/li\u003e\n\u003cli\u003eMerchant Shipping Certified Fire performance – SI 2016 No.1025.\u003c\/li\u003e\n\u003cli\u003eLloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class AO, A15, A30 and A60 Division bulkheads and decks. In compliance with the appropriate Lloyds Register Rules and Regulations and with the international Convention for the Safety Of Life At Sea (SOLAS).\u003c\/li\u003e\n\u003cli\u003eUSCG (United States Coast Guard).\u003c\/li\u003e\n\u003cli\u003eCorrosion Tested to BSEN 60068-2-52.\u003c\/li\u003e\n\u003cli\u003eVibration Tested to BS EN 60068-2-6.\u003c\/li\u003e\n\u003cli\u003eEC Type Examination (Module B).\u003c\/li\u003e\n\u003cli\u003eEC (Module D).\u003c\/li\u003e\n\u003cli\u003eCertificate of Fire Approval.\u003c\/li\u003e\n\u003cli\u003eBRE Global Compliant to ISO 9001. Suitable for use in both vertical and horizontal applications, with airflow in either direction.\u003c\/li\u003e\n\u003cli\u003eAvailable with square\/rectangular flanged duct connections, sizes from 100mm x 100mm up to 1000mm x 1000mm, Circular sizes from 100mm dia up to 1000mm dia. in single section. Multiple assemblies for vertical installations only, up to maximum size of 2080mm x 1000mm. Casing and blade available in galvanised or stainless steel.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e"}
