Long Cased Axial Fan

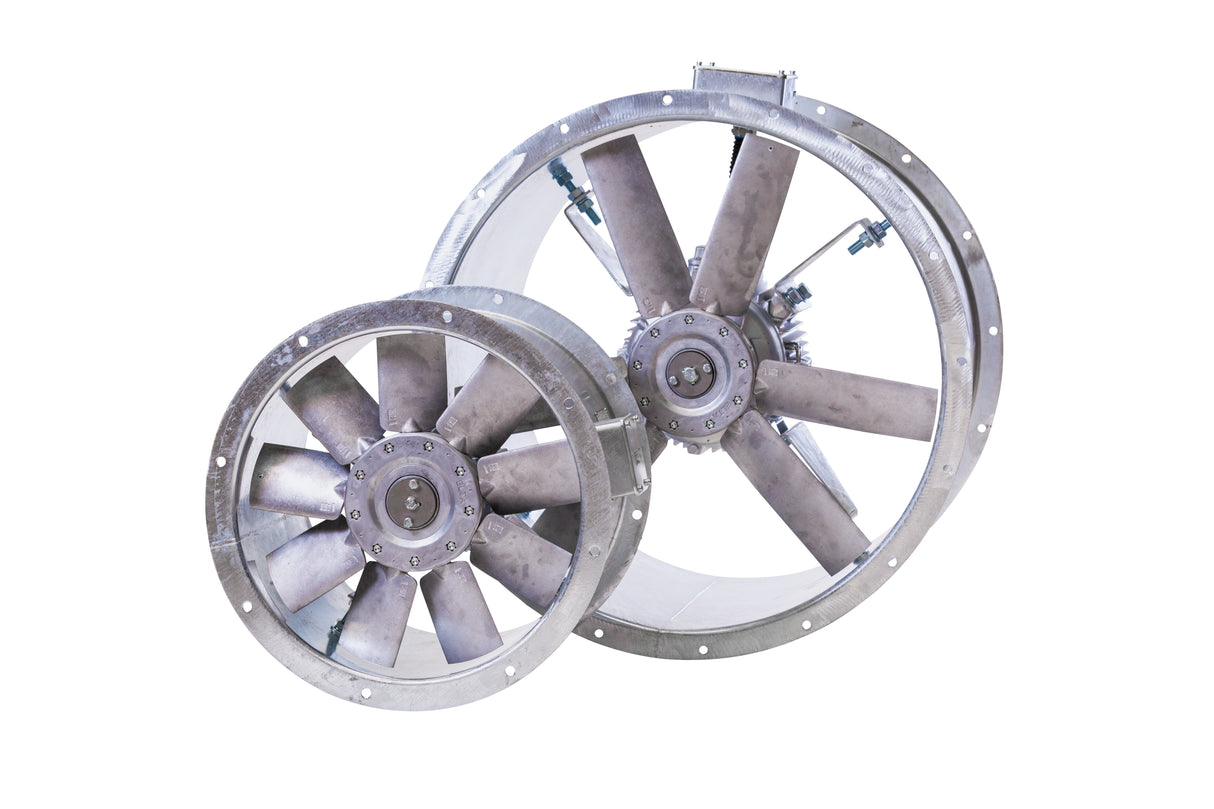

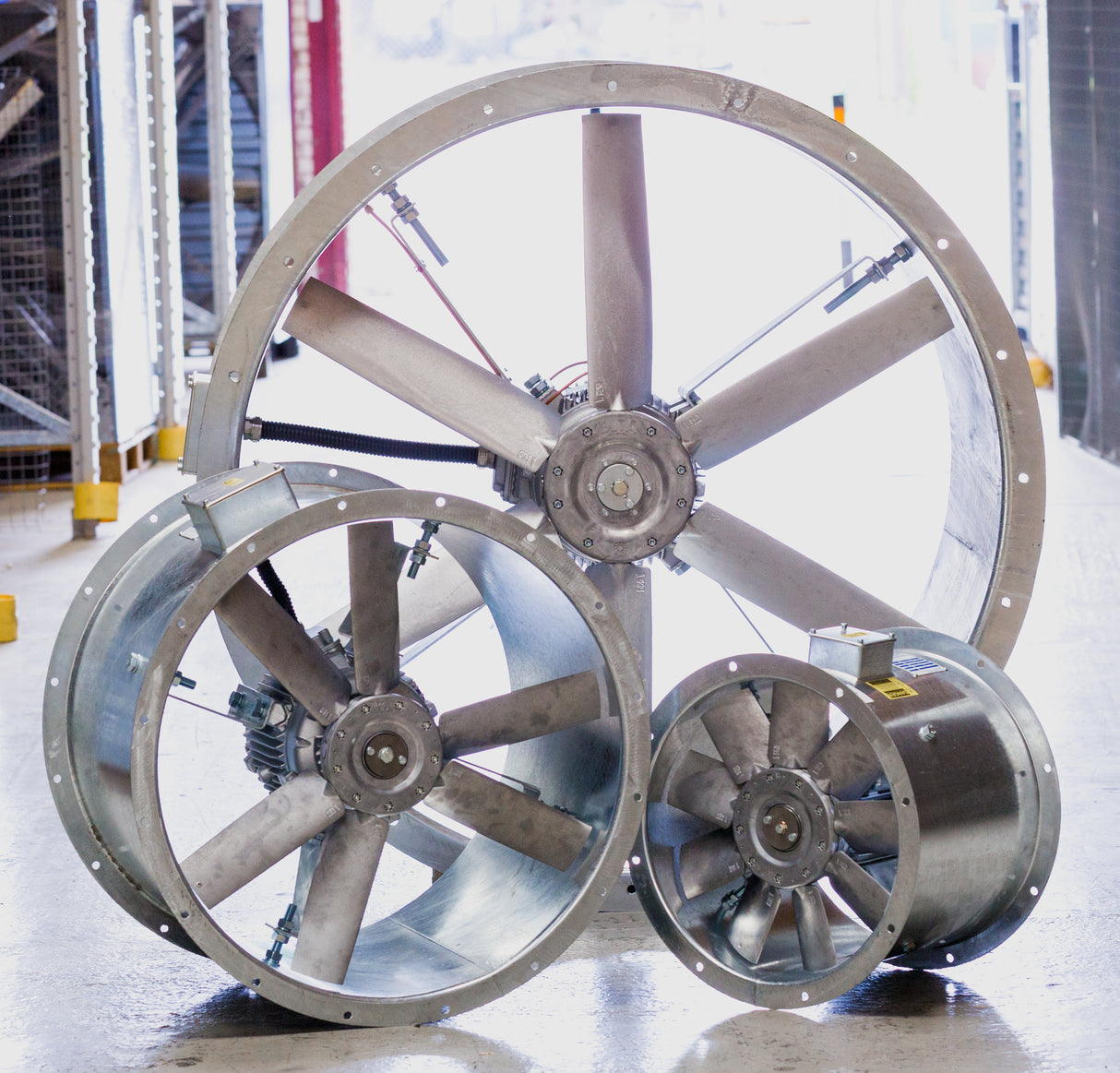

Long Cased Smoke fan 710mm

Product Code: LCS071L2-A6/20
£1,932.00 excl. VAT

Best Price
Quantity
5+
10+
Unit Price
£1,680.84
£1,603.56
Discount
13%
17%

4 Weeks Delivery

Description

Description: Long Cased Smoke Axial Fan

ACTUAL -
Air Flow: 6.00 m³/s
Static Pressure: 693 Pa
Total Pressure: 832 Pa

FAN DATA -
Diameter: 710 mm
Impeller Type: Axial
Blade Material: Aluminum
Speed: 2880 r/min @50 Hz
Power, Abs: 7.95 kW
Input Power: 8.83 kW
Efficiency Total: 62.8%
SFP: 1.47
Fan Weight: 113.9 kg
Hub: 181 mm
Pitch: 20°
Blades: 6
Form: B
Peak: 7.96 kW
Static: 52.4%

MOTOR DATA (at STP) -
Motor Type: F300 (IE3)
Electrical Supply: 400V 3ph 50Hz
Motor Frame: 132S
Motor Power: 9.00kW (AOM) (7.50kW IEC)
FLC/Start (DOL): 16.68A (AOM) / 119.96A (13.90A FL IEC)
Motor Speed: 2 pole
Motor Efficiency: 90.1%

Download Data Sheets

Click the PDF to download each individual data sheet.

{"id":14932422132098,"title":"Long Cased Smoke fan 710mm","handle":"long-cased-axial-fan-710mm","description":"\u003cp\u003e\u003cstrong\u003eDescription:\u003c\/strong\u003e \u003cstrong\u003eLong Cased Smoke Axial Fan\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eACTUAL -\u003cbr\u003eAir Flow: \u003c\/strong\u003e6.00 m³\/s \u003cstrong\u003e\u003cbr\u003eStatic Pressure: \u003c\/strong\u003e693 Pa \u003cstrong\u003e\u003cbr\u003eTotal Pressure:\u003c\/strong\u003e 832 Pa\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eFAN DATA - \u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003eDiameter:\u003c\/strong\u003e 710 mm\u003cbr\u003e\u003cstrong\u003eImpeller Type:\u003c\/strong\u003e Axial\u003cbr\u003e\u003cstrong\u003eBlade Material:\u003c\/strong\u003e Aluminum\u003cbr\u003e\u003cstrong\u003eSpeed:\u003c\/strong\u003e 2880 r\/min @50 Hz\u003cbr\u003e\u003cstrong\u003ePower, Abs:\u003c\/strong\u003e 7.95 kW\u003cbr\u003e\u003cstrong\u003eInput Power: \u003c\/strong\u003e8.83 kW\u003cbr\u003e\u003cstrong\u003eEfficiency Total:\u003c\/strong\u003e 62.8% \u003cbr\u003e\u003cstrong\u003eSFP:\u003c\/strong\u003e 1.47 \u003cbr\u003e\u003cstrong\u003eFan Weight:\u003c\/strong\u003e 113.9 kg \u003cbr\u003e\u003cstrong\u003eHub:\u003c\/strong\u003e 181 mm \u003cbr\u003e\u003cstrong\u003ePitch: \u003c\/strong\u003e20°\u003cbr\u003e\u003cstrong\u003eBlades:\u003c\/strong\u003e 6\u003cbr\u003e\u003cstrong\u003eForm:\u003c\/strong\u003e B\u003cbr\u003e\u003cstrong\u003ePeak:\u003c\/strong\u003e 7.96 kW \u003cbr\u003e\u003cstrong\u003eStatic:\u003c\/strong\u003e 52.4%\u003cbr\u003e\u003cstrong\u003e\u003cbr\u003eMOTOR DATA (at STP) - \u003cbr\u003eMotor Type:\u003c\/strong\u003e F300 (IE3)\u003cstrong\u003e\u003cbr\u003eElectrical Supply: \u003c\/strong\u003e400V 3ph 50Hz\u003cstrong\u003e\u003cbr\u003eMotor Frame:\u003c\/strong\u003e 132S\u003cbr\u003e\u003cstrong\u003eMotor Power: \u003c\/strong\u003e9.00kW (AOM) (7.50kW IEC)\u003cbr\u003e\u003cstrong\u003eFLC\/Start (DOL): \u003c\/strong\u003e16.68A (AOM) \/ 119.96A (13.90A FL IEC)\u003cstrong\u003e \u003cbr\u003e\u003c\/strong\u003e\u003cstrong\u003eMotor Speed: \u003c\/strong\u003e2 pole\u003cbr\u003e\u003cstrong\u003eMotor Efficiency: \u003c\/strong\u003e90.1%\u003cstrong\u003e\u003cbr\u003e\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e","published_at":"2025-07-07T09:48:31+01:00","created_at":"2025-03-17T13:20:47+00:00","vendor":"Elta","type":"Long Cased Axial Fan","tags":["Axial Fans","Elta","Fans","Long Cased Axial Flow Fan","Mechanical Smoke Ventilation","Smoke Ventilation"],"price":193200,"price_min":193200,"price_max":193200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55042164949378,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"LCS071L2-A6\/20","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Long Cased Smoke fan 710mm","public_title":null,"options":["Default Title"],"price":193200,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9503.jpg-WHITE_d1ab02c5-1670-4f1a-8058-b41f7292419c.jpg?v=1743092832","\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9577_2940c482-93c8-429c-b907-19ed9652018e.jpg?v=1743092833","\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9577-WHITE_84c998c0-ccd8-46e5-9251-5ea9956e9d5b.jpg?v=1743092832"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9503.jpg-WHITE_d1ab02c5-1670-4f1a-8058-b41f7292419c.jpg?v=1743092832","options":["Title"],"media":[{"alt":null,"id":64292000629122,"position":1,"preview_image":{"aspect_ratio":1.5,"height":3840,"width":5760,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9503.jpg-WHITE_d1ab02c5-1670-4f1a-8058-b41f7292419c.jpg?v=1743092832"},"aspect_ratio":1.5,"height":3840,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9503.jpg-WHITE_d1ab02c5-1670-4f1a-8058-b41f7292419c.jpg?v=1743092832","width":5760},{"alt":null,"id":64292000694658,"position":2,"preview_image":{"aspect_ratio":1.043,"height":2944,"width":3072,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9577_2940c482-93c8-429c-b907-19ed9652018e.jpg?v=1743092833"},"aspect_ratio":1.043,"height":2944,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9577_2940c482-93c8-429c-b907-19ed9652018e.jpg?v=1743092833","width":3072},{"alt":null,"id":64292000727426,"position":3,"preview_image":{"aspect_ratio":1.043,"height":2944,"width":3072,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9577-WHITE_84c998c0-ccd8-46e5-9251-5ea9956e9d5b.jpg?v=1743092832"},"aspect_ratio":1.043,"height":2944,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/JBP_9577-WHITE_84c998c0-ccd8-46e5-9251-5ea9956e9d5b.jpg?v=1743092832","width":3072}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003eDescription:\u003c\/strong\u003e \u003cstrong\u003eLong Cased Smoke Axial Fan\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eACTUAL -\u003cbr\u003eAir Flow: \u003c\/strong\u003e6.00 m³\/s \u003cstrong\u003e\u003cbr\u003eStatic Pressure: \u003c\/strong\u003e693 Pa \u003cstrong\u003e\u003cbr\u003eTotal Pressure:\u003c\/strong\u003e 832 Pa\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eFAN DATA - \u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003eDiameter:\u003c\/strong\u003e 710 mm\u003cbr\u003e\u003cstrong\u003eImpeller Type:\u003c\/strong\u003e Axial\u003cbr\u003e\u003cstrong\u003eBlade Material:\u003c\/strong\u003e Aluminum\u003cbr\u003e\u003cstrong\u003eSpeed:\u003c\/strong\u003e 2880 r\/min @50 Hz\u003cbr\u003e\u003cstrong\u003ePower, Abs:\u003c\/strong\u003e 7.95 kW\u003cbr\u003e\u003cstrong\u003eInput Power: \u003c\/strong\u003e8.83 kW\u003cbr\u003e\u003cstrong\u003eEfficiency Total:\u003c\/strong\u003e 62.8% \u003cbr\u003e\u003cstrong\u003eSFP:\u003c\/strong\u003e 1.47 \u003cbr\u003e\u003cstrong\u003eFan Weight:\u003c\/strong\u003e 113.9 kg \u003cbr\u003e\u003cstrong\u003eHub:\u003c\/strong\u003e 181 mm \u003cbr\u003e\u003cstrong\u003ePitch: \u003c\/strong\u003e20°\u003cbr\u003e\u003cstrong\u003eBlades:\u003c\/strong\u003e 6\u003cbr\u003e\u003cstrong\u003eForm:\u003c\/strong\u003e B\u003cbr\u003e\u003cstrong\u003ePeak:\u003c\/strong\u003e 7.96 kW \u003cbr\u003e\u003cstrong\u003eStatic:\u003c\/strong\u003e 52.4%\u003cbr\u003e\u003cstrong\u003e\u003cbr\u003eMOTOR DATA (at STP) - \u003cbr\u003eMotor Type:\u003c\/strong\u003e F300 (IE3)\u003cstrong\u003e\u003cbr\u003eElectrical Supply: \u003c\/strong\u003e400V 3ph 50Hz\u003cstrong\u003e\u003cbr\u003eMotor Frame:\u003c\/strong\u003e 132S\u003cbr\u003e\u003cstrong\u003eMotor Power: \u003c\/strong\u003e9.00kW (AOM) (7.50kW IEC)\u003cbr\u003e\u003cstrong\u003eFLC\/Start (DOL): \u003c\/strong\u003e16.68A (AOM) \/ 119.96A (13.90A FL IEC)\u003cstrong\u003e \u003cbr\u003e\u003c\/strong\u003e\u003cstrong\u003eMotor Speed: \u003c\/strong\u003e2 pole\u003cbr\u003e\u003cstrong\u003eMotor Efficiency: \u003c\/strong\u003e90.1%\u003cstrong\u003e\u003cbr\u003e\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e"}
Elta

Long Cased Smoke fan 710mm

£1,932.00 excl. VAT

Description: Long Cased Smoke Axial Fan

ACTUAL -
Air Flow: 6.00 m³/s
Static Pressure: 693 Pa
Total Pressure: 832 Pa

FAN DATA -
Diameter: 710 mm
Impeller Type: Axial
Blade Material: Aluminum
Speed: 2880 r/min @50 Hz
Power, Abs: 7.95 kW
Input Power: 8.83 kW
Efficiency Total: 62.8%
SFP: 1.47
Fan Weight: 113.9 kg
Hub: 181 mm
Pitch: 20°
Blades: 6
Form: B
Peak: 7.96 kW
Static: 52.4%

MOTOR DATA (at STP) -
Motor Type: F300 (IE3)
Electrical Supply: 400V 3ph 50Hz
Motor Frame: 132S
Motor Power: 9.00kW (AOM) (7.50kW IEC)
FLC/Start (DOL): 16.68A (AOM) / 119.96A (13.90A FL IEC)
Motor Speed: 2 pole
Motor Efficiency: 90.1%
