Long Cased Smoke Axial Fan

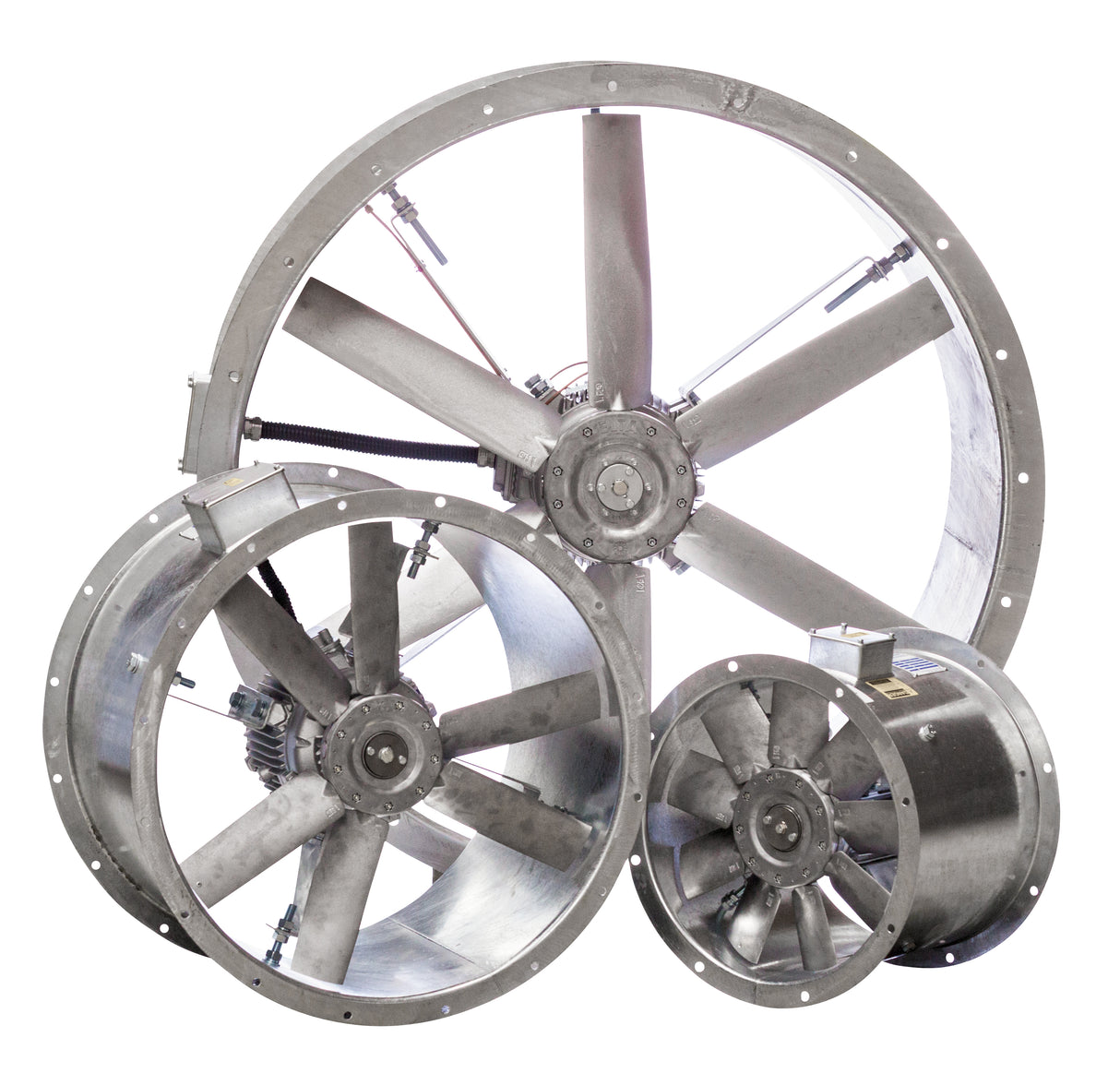

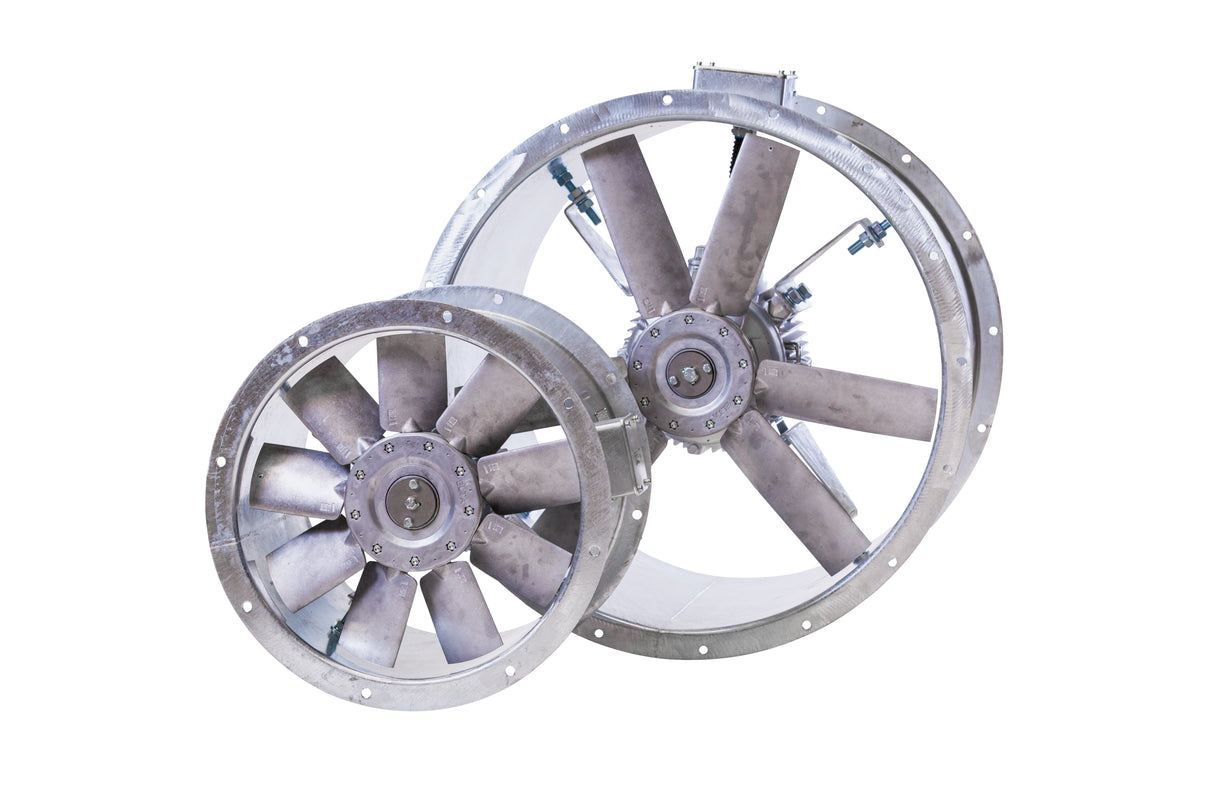

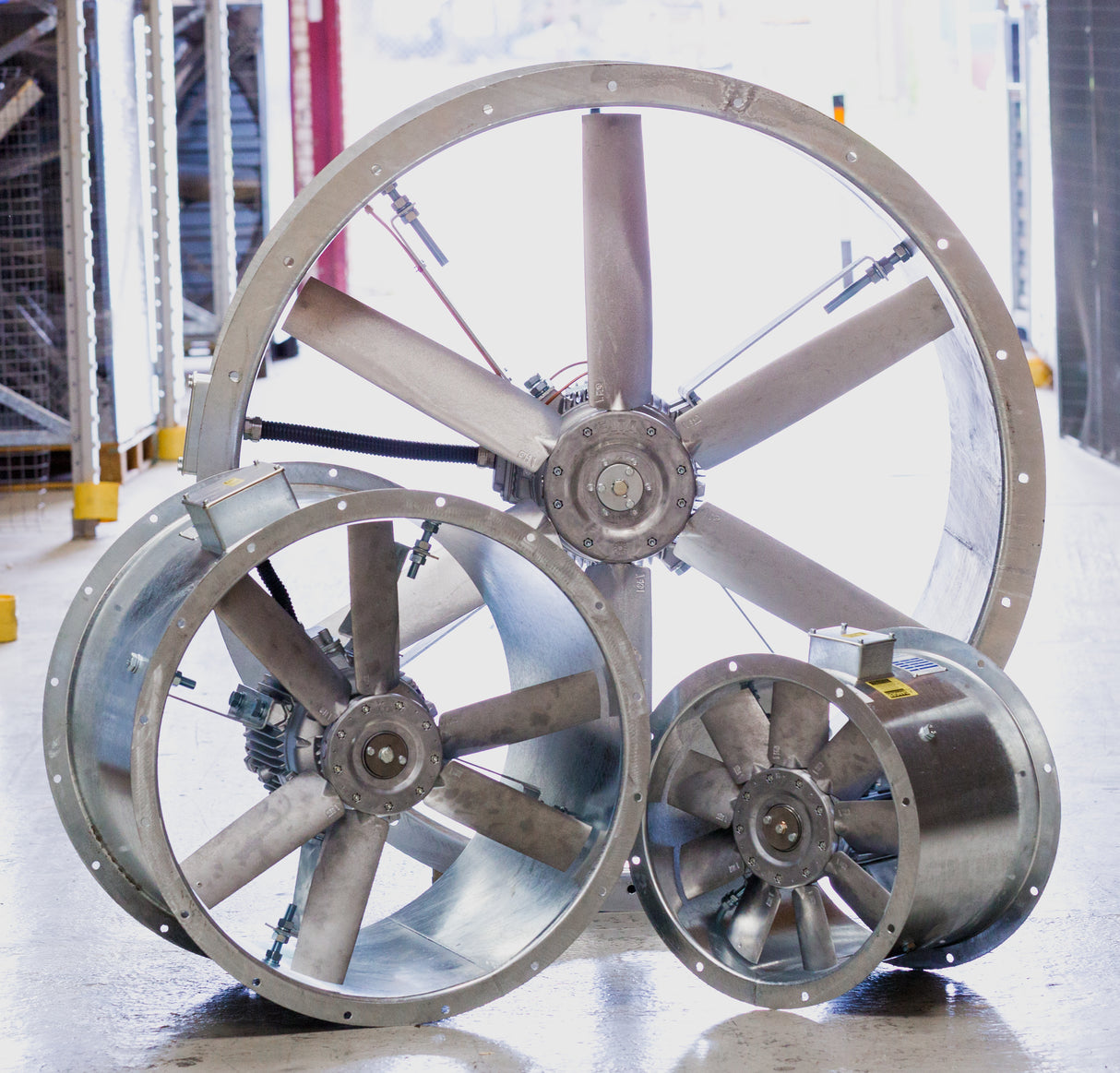

Long Cased Axial fan 560mm

Product Code: LCS056N2-A6/16
£1,420.00 excl. VAT

4 Weeks Delivery

Description

Description: Long Cased Smoke Axial Fan

ACTUAL -
Air Flow: 2.50 m³/s
Static Pressure: 605 Pa
Total Pressure: 667 Pa

FAN DATA -
Diameter:  560 mm
Impeller Type: Axial
Blade: Material: Aluminum
Speed: 2880 r/min @50 Hz
Power, Abs: 3.22 kW
Input Power: 3.71 kW
Efficiency Total: 51.9%
SFP: 1.48
Fan Weight: 64.7 kg
Hub: 251 mm
Pitch: 16°
Blades: 6
Form: B
Peak: 3.23 kW
Static: 47.0%

MOTOR DATA (at STP) -
Motor Type: F300 (IE3)
Electrical Supply: 400V 3ph 50Hz
Motor Frame: 100L
Motor Power: 3.60kW (AOM) (3.00kW IEC)
FLC/Start (DOL): 6.90A (AOM) / 46.29A (5.75A FL IEC)
Motor Speed: 2 pole
Motor Efficiency: 86.9%
