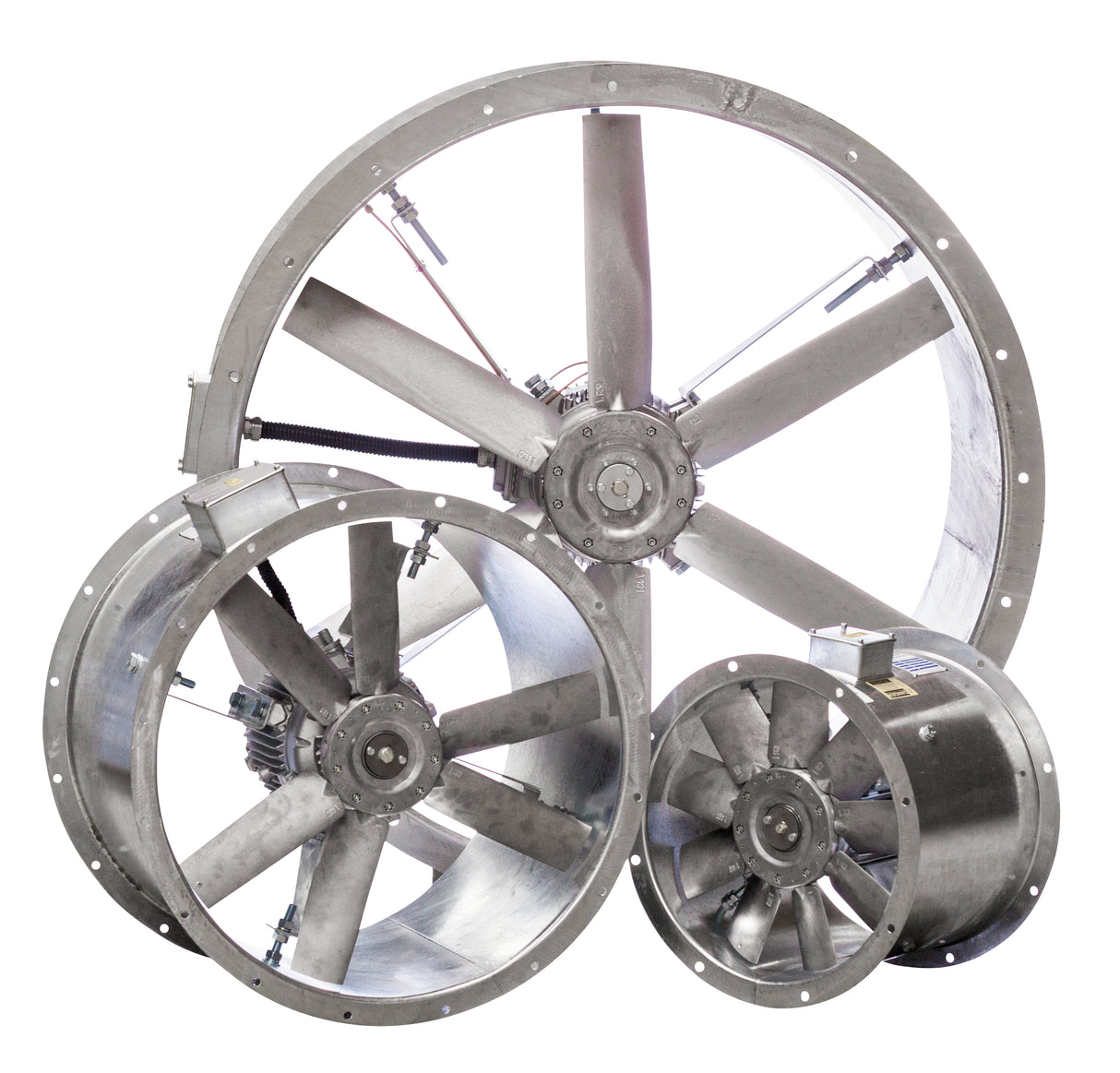

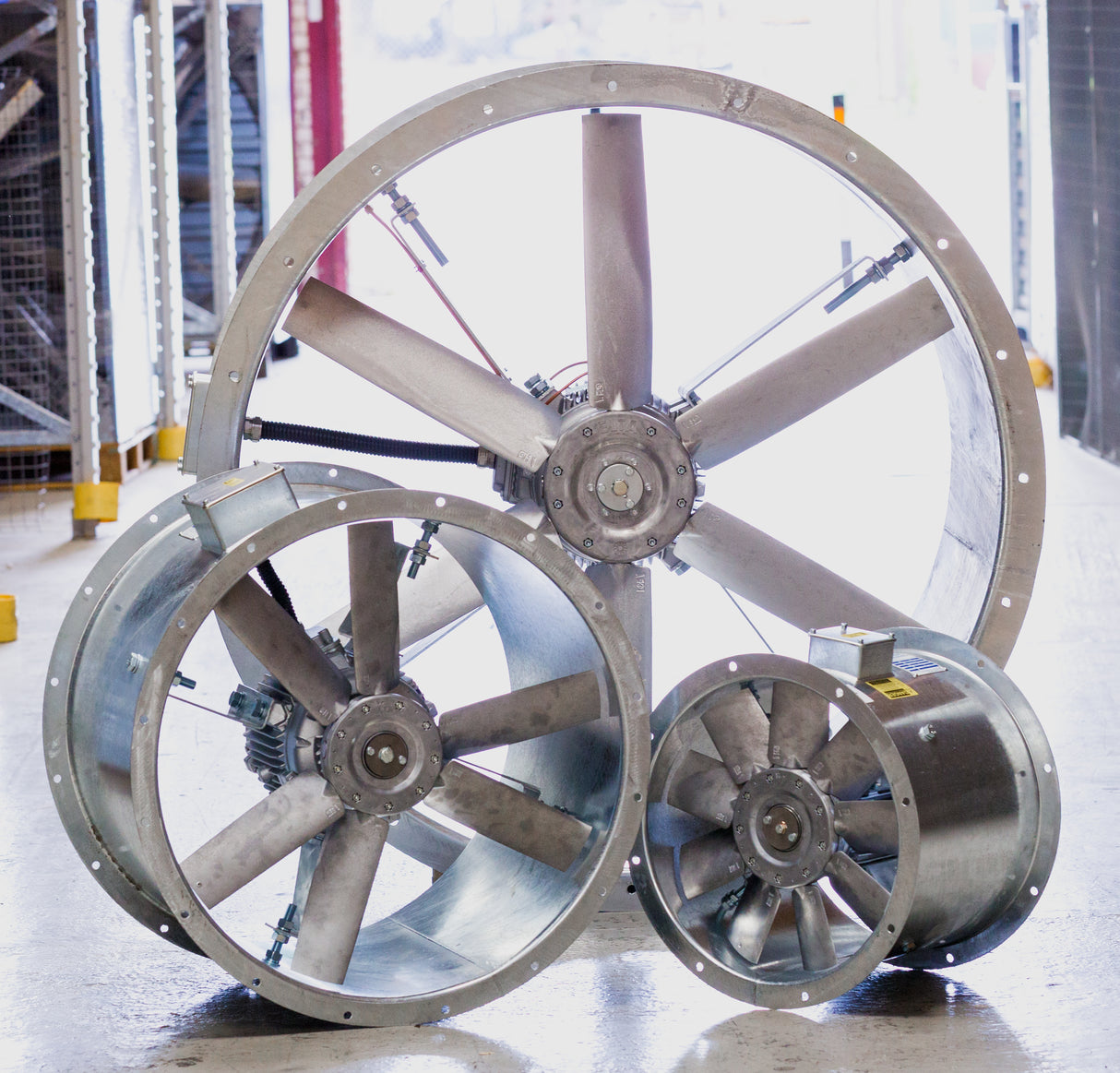

Long Cased Axial fan 450mm

Product Code: LCS045L2-A9/17
£1,256.00 excl. VAT

4 Weeks Delivery

Description

Description: Long Cased Axial Flow Fan

ACTUAL -
Air Flow: 2.02 m³/s
Static Pressure: 510 Pa
Total Pressure: 608 Pa

FAN DATA -
Diameter: 450 mm
Impeller Type: Axial
Blade Material: Aluminium
Speed: 2880 r/min @50 Hz
Power, Abs: 2.00 kW
Input Power: 2.31 kW
Efficiency Total: 61.4%
SFP: 1.15
Fan Weight: 45.1 kg
Hub: 131 mm
Pitch: 24°
Blades: 6
Form: B
Peak: 2.00 kW
Static: 51.6%

Motor Data (at STP) -
Motor Type: Standard (IE3)
Electrical Supply: 400V 3ph 50Hz
Motor Frame: 90L
Motor Power: 2.20kW
FLC/Start (DOL): 4.43A / 33.23A
Motor Speed: 2 pole
Motor Efficiency: 86.5%

Download Data Sheets

Click the PDF to download each individual data sheet.
