AUMULLER PLA10 S12 24VDC Linear Drive 1000N

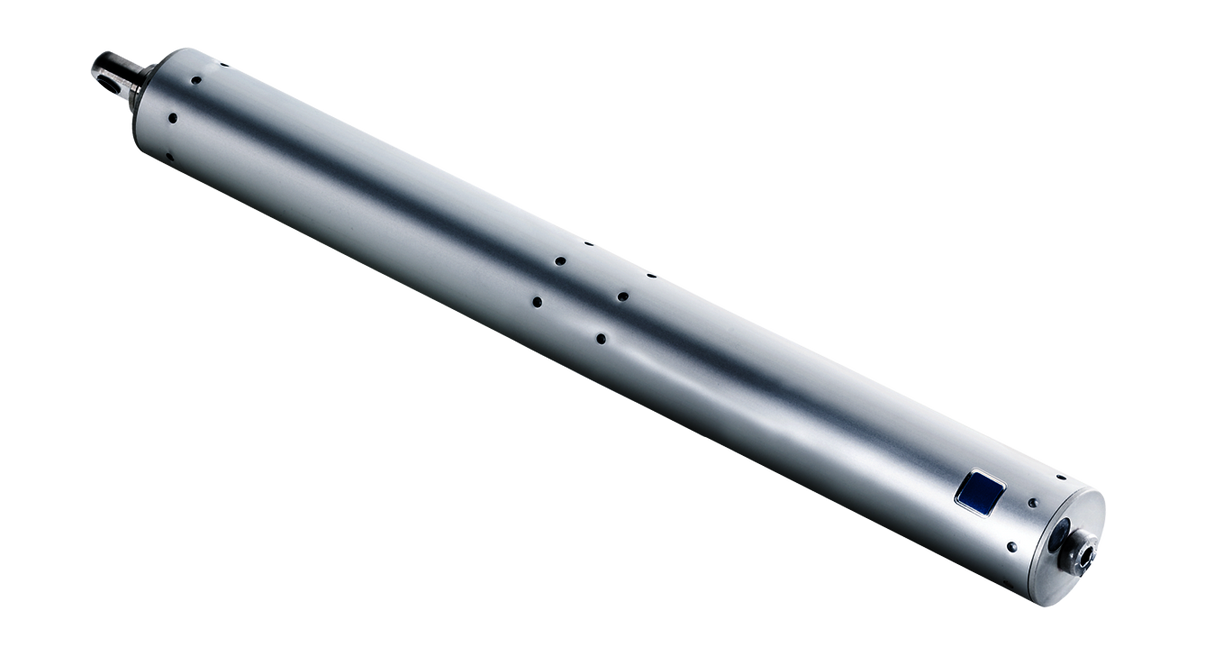

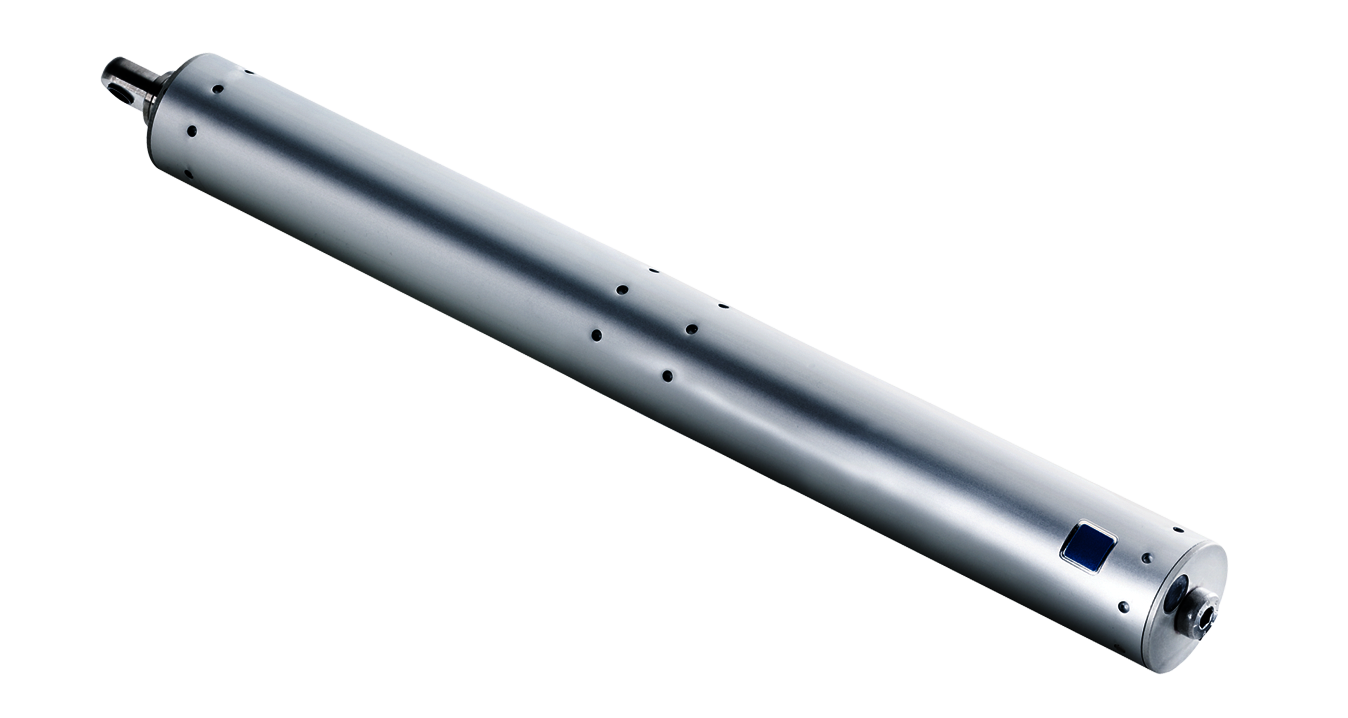

Spindle Drive PLA
Slim Powerhouses: PLA spindle drives have a force of up to 1600 N. The particularly slim and compact drive housing with a diameter of only 36 mm neatly integrates itself into the building structure. PLA spindle drives optimally open and close windows in roofs and facades.

SPECIAL FEATURES PLA

• For natural ventilation, smoke and heat exhausting and ferralux® NRWG (EN12101-2)
• Robust corrosion-resistant design in a slim aluminium housing (D = 36 mm), optionally in RAL colours
• Easy installation due to adjustable clamp ring and rear suspension
• Spindle is ball beared with end position dampening
• Stainless steel spindle tube
• Programmable parameters of Intelligent Control Electronics S12
    Synchronised multi-operation and sequence control without add. devices
    Electronic soft-start, soft-close and soft-stop at end of stroke control
    Stroke, force, speed
    Rebate control
• Protection rating IP 65
• With GoreTex membrane
• Suitable for operation with M-COM for the automatic configuration of synchronised run of multi drive systems and sequence control
