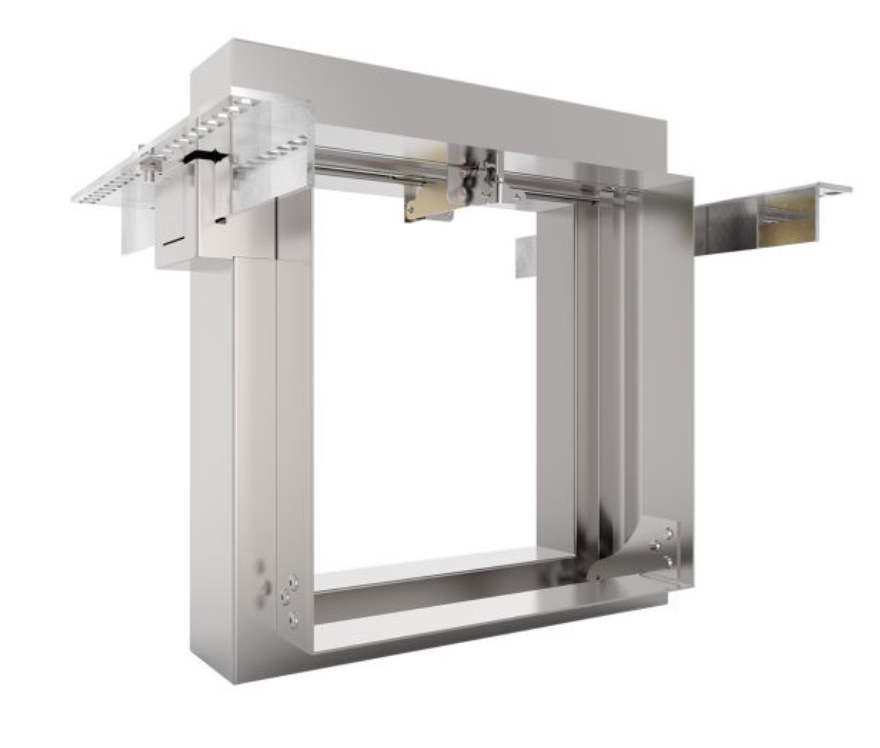

Advanced Air Model 0160SP - Fire Dampers - Stainless Steel Blades and galvanised casing - spigot fit with Adjustable Frame System (AFWA, AFFL) and Easy Maintenance Link
Advanced Air Model 0160SP - Fire Dampers - Stainless Steel Blades and galvanised casing - spigot fit with Adjustable Frame System (AFWA, AFFL) and Easy Maintenance Link - 250 / 250 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Advanced Air range of curtain fire dampers are designed to stop the spread of fire through ventilation ducts passing through walls and floors. The range incorporates features developed through design and testing to achieve full compliance with the harmonised standard BE EN 15650 as required by specifiers, contractors, and fire authorities and embodies our 50 years of experience in product design, manufacture, sales, and service in the UK and Europe.
The 0160 fire damper has one simple function, and that is to maintain the integrity of a wall to ensure the containment of fire. Designed with the blades out of the airstream to offer the lowest resistance held in the open position by the easy maintenance flat bar fusible link rated to 72ºC. Upon reaching that temperature, the solder melts and releases the spring-loaded blades to close and lock into the blade ramps fitted at the base on the sides.
The damper has been tested to BS EN 1366-2 in multiple wall thicknesses and types, offering many options with flexibility with opening sizes from 25mm to 150mm around the damper using a fire batt to complete the installation between the damper and supporting construction.
Tech Specs
- Blades Material: Single skin 0.8mm Galvanised Mild Steel – Standard
Single skin 0.8mm 430-grade Stainless Steel (optional) - Casing Frame Depth: 180mm, including two 50mm spigots as standard
Material 1.2mm Galvanised Mild Steel—Standard
1.2mm 430 Grade Stainless Steel, Optional - AFS Bracket Material: 1.6mm Galvanised Mild Steel
- AFS Rail Size 40mm x 40mm x 4mm
- Material: BZP Mild Steel
- HEVAC Material: 1.6mm Galvanised Mild Steel
- Drywall Plate Material: 1.6mm Galvanised Mild Steel
- Fusible link Easy maintenance link (EML) Brass soldered for release at 72°C.
- Springs: heat-treated Stainless Steel coil tension springs
- Locking Ramps 1.2mm Galvanised Mild Steel
- Temperature Suitable for use from 10°C up to 30°C
- Environment These units are not suitable for installation in a corrosive or hostile environment or an area of high humidity
- Casing (Ducting) Leakage DW144 Class C
- Performance Maximum Operating Pressure: 1,500 Pa. Maximum Velocity: 10 m/s
Dimensions
Standard damper Min 100 x 100 100 dia. 100 x 100
Max 1000 x 1000 1000 dia. 1000 x 1000
With VPI Min 125 x 125 125 dia. 125 x 150
Max 1000 x 1000 1000 dia. 1000 x 1000
With Blade status indicator Min 150 x 100 125 dia. 150 x 100
Max 1000 x 1000 1000 dia. 1000 x 1000
With Blade status indication and VPI Min 150 x 150 150 dia. 175 x 150
Max 1000 x 1000 1000 dia. 1000 x 1000
