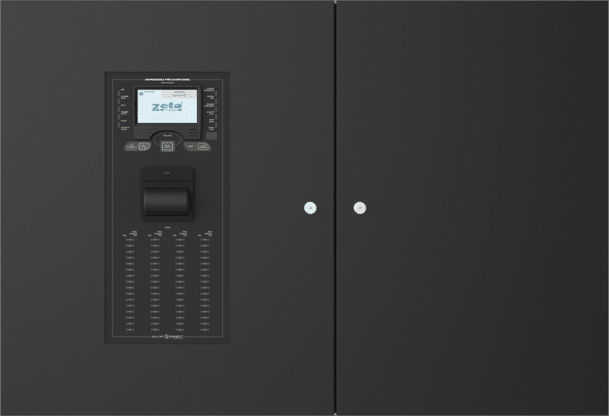

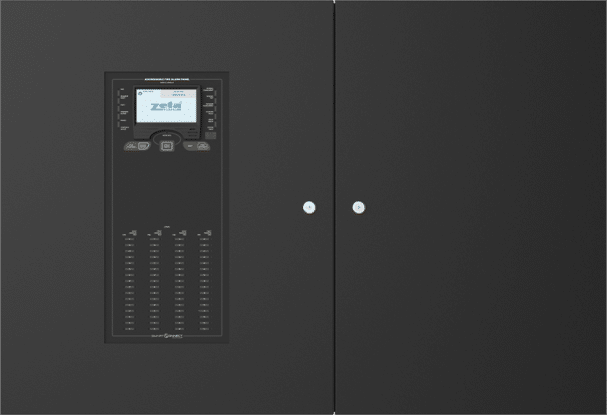

Zeta Smart 26 with 64 Zone Indication Control Panel

The Zeta SMART26/64 Multi-loop is a powerful Analogue Addressable Fire Alarm Control Panel that offers a variety of modular components which allow it to meet a wide variety of applications.

The graphical touchscreen provides a user-friendly interface and the control panel has the capability to support complex cause and effect programming and a wide range of user-controllable functions, making the panel suitable for a range of projects from multi-site commercial developments to industrial applications.

It can operate as part of a networked system (up to 64 panels) or as a stand-alone panel. Powerful programming options allow configurable control over whether messages from specific panels are transmitted around the network or remain local.

Each system component has been designed to operate as part of a Smart Multi-loop EN54 listed system providing assurance that the detectors, interfaces, sounders and panel are all compatible with one other and that the full range of system functionality is supported by all devices.

Key Features

> Modular construction allows a panel to be specified using just the required modules

> Up to 12 loop card modules

> 4.3” colour touch screen display

> Capacity for up to 26 intelligent modules

> Full system redundancy

> Connection to TCP/IP Module

> Extensive Day/Night mode programming

> Full cause and effect programming via front panel or the Smart configurator PC software

> 8032 event log entries

> Using multiple zone monitor modules, the panel can be configured into a fully functioning conventional panel

> 250 Fyreye MKII devices per loop

> 254 addressable programmable zones

> Up to 64 panel peer-to-peer network

> Positive Alarm Sequence

> Alarm Verification

> Day/night (Building occupied/unoccupied) programming

> Alarm circuit special application 24V mode

> 400W Power Supply
