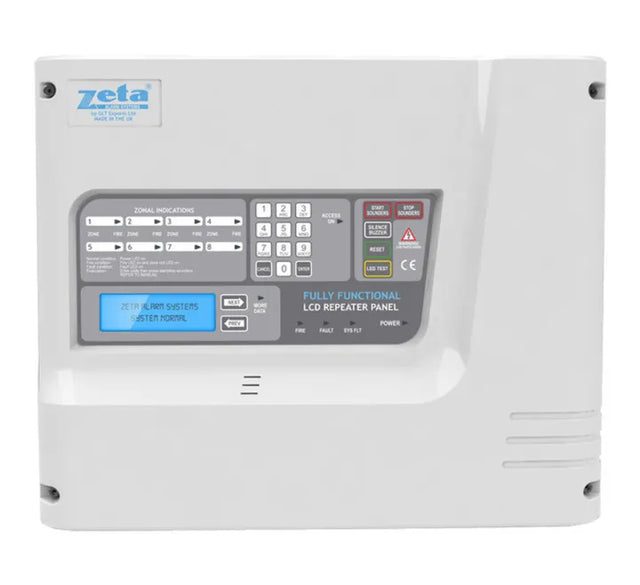

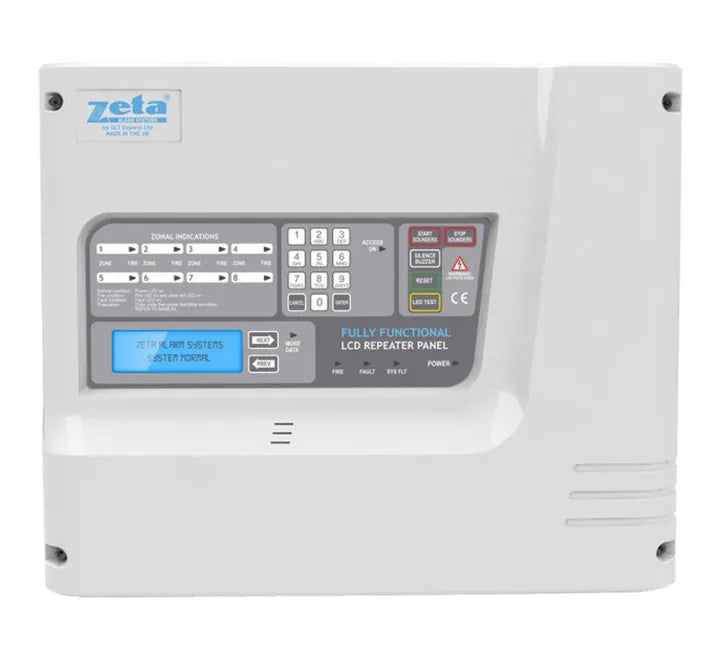

ID2 Full Function Repeater

The Zeta Infinity ID2 active repeater is for use with an Infinity ID2 Fire Panel. Powered from the main ID2 panel, it is connected via 4 cores: 2 x power and 2 x data. Up to 8 repeaters may be connected per system. The first 2 repeaters can be powered from the panel but subsequent repeaters would need an external power supply. Each repeater can be selectively configured to determine which commands it will send to the network, e.g. to allow some repeaters to reset the system and others to not reset the system. Each Repeater may also be configured to run in a different language (any device labels entered by the installer will be in the language entered).

The ID2/REP Repeater shows alarms and faults from the fire panel but does not show disablements or test mode events. It can be configured to start panel sounders, stop panel sounders, silence panel buzzers and reset the panel. It cannot interrogate panel configuration or device status. The repeater can not select disablements or test mode.

Key Features of the ID2/REP
> Infinity ID2 fully functional repeater panel
> Use with Infinity ID2 main panel
> Includes zonal LEDs and LCD display
> Can be programmed to act as fully functional (ability to silence/reset) or passive (shows alarm info only)
> Up to 8 repeaters max per system
> First 2 repeaters can be powered from main panel (4 cores required from ID2 panel (2 data + 2 power))
> Can powered from 24V auxiliary PSU in the ID2 panel
> Shows alarms and faults from the fire panel
> Can be configured to start/stop panel sounders, silence panel buzzes and reset panel
