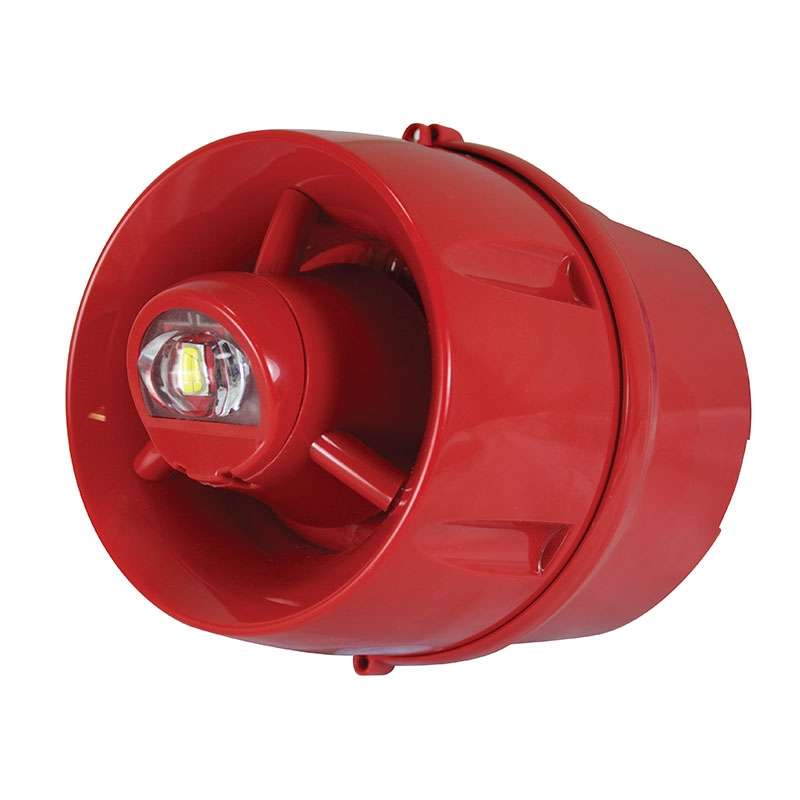

CX Wall sounder VAD IP55/65 deep base RED - APOLLO XFP95/DISCOVERY
CX Wall sounder VAD IP55/65 deep base RED - APOLLO XFP95/DISCOVERY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- An IP55 version of our popular W.2.4-8.2 Wall VAD & Sounder.
- Provides ‘W-2.4-8.2’ light distribution when wall mounted (min 0.4 lux over a 2.4m x8.2m cuboid area) using the same lens and electonics as our EN54-23, 3 & 17 certified Hi-Output Sounder VAD.
- Impressive 103dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 14mA alarm current @24V DC (VAD lit, sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels and up to 15 selectable tone pairs.
- IP55 rated.
Technical Specifications
| Protocol/compatibility |
Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
|---|---|
| Application/operation |
Designed to be wall mounted. Suitable for use in external areas where IP55 rated devices are deemed sufficient. |
| VAD category & coverage |
W-2.4-8.2. |
| Flash rate & colour |
0.5Hz / White. |
| Supply/operating voltage |
17 to 28V DC (Sounder); 21 to 28V DC (Sounder/VAD). |
| Quiescent current |
550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) |
103dB(A) when set to tone 1. |
| Alarm current |
14mA (VAD lit, Sounder on max). |
| Indicators |
Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) |
114mm diameter x 131mm deep. |
| IP Rating |
IP55. |
| Weight |
315g. |
| Operating conditions/temperature |
-10ºC to +55ºC. Max. 95% RH (Non-condensing). |
CX Wall sounder VAD IP55/65 deep base RED - APOLLO XFP95/DISCOVERY
Download Data Sheets
Click the PDF to download each individual data sheet.
