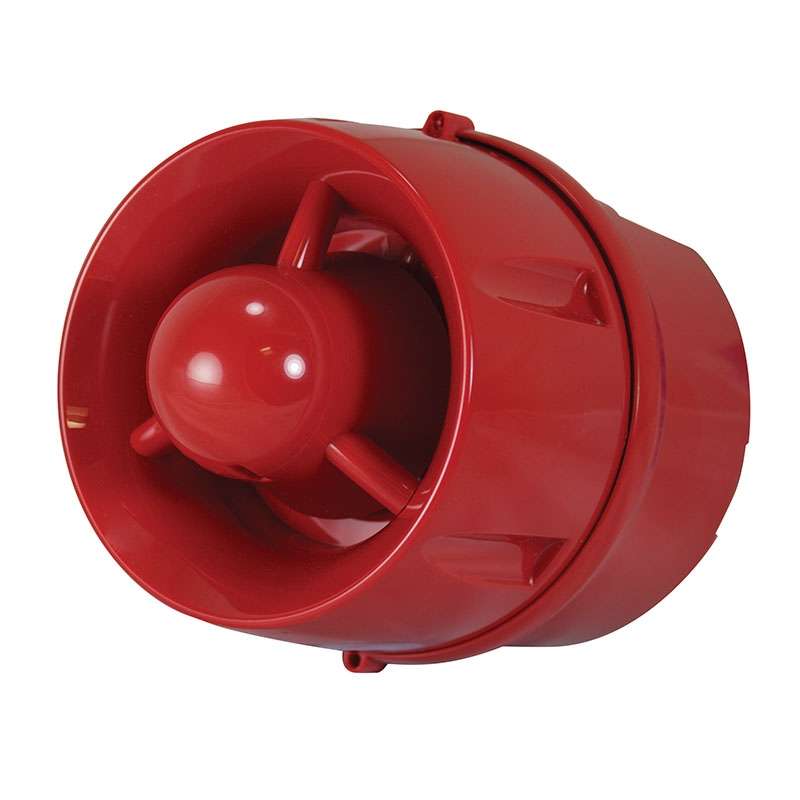

CX Wall sounder deep base RED - APOLLO XFP95/DISCOVERY
CX Wall sounder deep base RED - APOLLO XFP95/DISCOVERY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Third-party certified to EN54-3 (Sounders) and 17 (Isolators) by the LPCB.
- Impressive 103dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 5mA alarm current @24V DC (sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels and up to 15 selectable tone pairs.
- IP33C (Type A) rated.
Technical Specifications
| Approvals/certifications |
Certified to EN54-3 & 17 by the LPCB |
|---|---|
| Protocol/compatibility |
Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
| Application/operation |
Designed to be wall mounted. IP33C rated and suitable for use outdoors (note an IP65 rated Sounder VAD version is also available). |
| VAD category & coverage |
N/A. |
| Flash rate & colour |
N/A. |
| Supply/operating voltage |
17 to 28V DC. |
| Quiescent current |
550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) |
103dB(A) when set to tone 1. |
| Alarm current |
5mA (Sounder on max). |
| Indicators |
Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) |
114mm diameter x 131mm deep. |
| IP Rating |
IP33C (Type A). |
| Weight |
300g. |
| Operating conditions/temperature |
CX Wall sounder deep base RED - APOLLO XFP95/DISCOVERY
Download Data Sheets
Click the PDF to download each individual data sheet.
