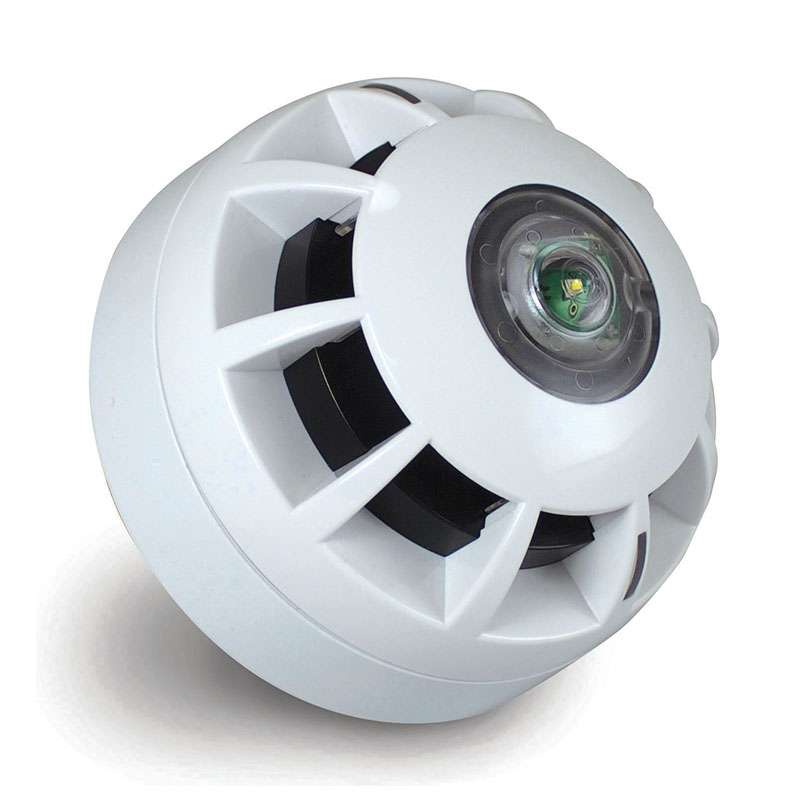

CX COMP ceiling sounder VAD WHITE - APOLLO XFP95/DISCOVERY
CX COMP ceiling sounder VAD WHITE - APOLLO XFP95/DISCOVERY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by Intertek.

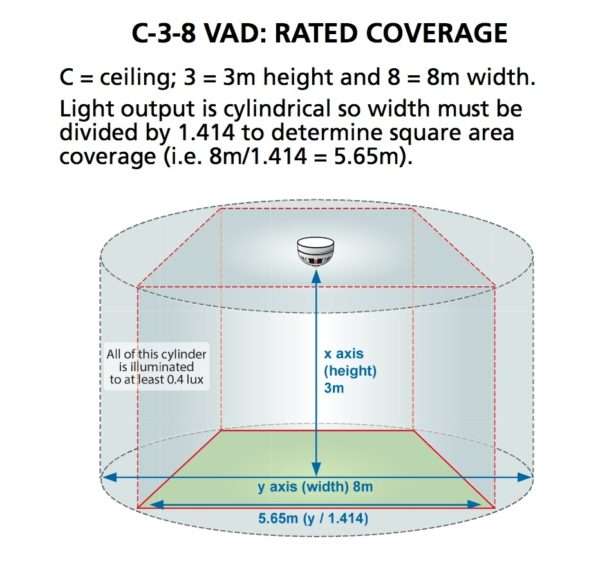

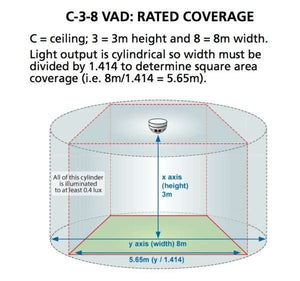

- Provides ‘C-3-8’ light distribution when ceiling mounted (min 0.4 lux over a 3 x 8m cylindrical area).

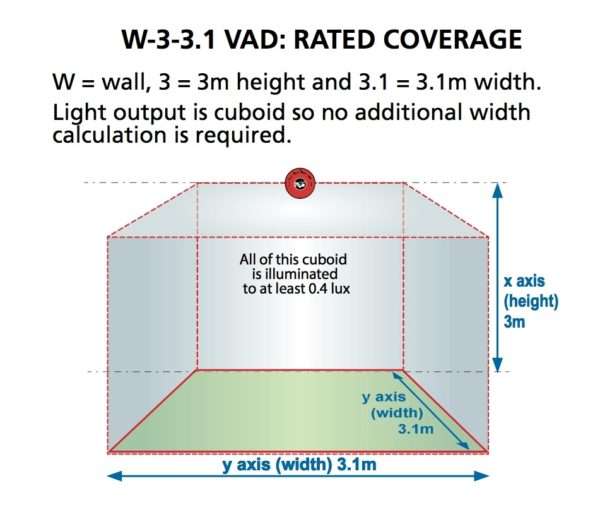

- Can also provide ‘W-3-3.1’ light distribution when wall mounted (min. 0.4 lux over a 3 x 3.1m cuboid area).
- Impressive 91dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 14mA alarm current @24V DC (VAD lit, sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels and up to 15 selectable tone pairs.
- IP21C rated.
Technical Specifications
| Approvals/certifications |
Certified to EN54-3, 23 & 17 by Intertek. |
|---|---|
| Protocol/compatibility |
Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
| Application/operation |
Provides C-3-8 coverage when ceiling mounted. Alternatively can be wall mounted to provide W-3-3.1 coverage. |
| VAD category & coverage |
C-3-8 (151m3 cylindrical coverage): W-3-3.1 (30m3 cuboid coverage). |
| Flash rate & colour |
0.5Hz / White. |
| Supply/operating voltage |
17 to 28V DC (Sounder); 21 to 28V DC (Sounder/VAD). |
| Quiescent current |
550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) |
91dB(A) when set to tone 1. |
| Alarm current |
14mA (VAD lit, Sounder on max). |
| Indicators |
Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) |
102mm diameter x 63mm deep (not including optional XP95/Discovery and base). |
| IP Rating |
IP21C (Type A). |
| Weight |
175g. |
| Operating conditions/temperature |
CX COMP ceiling sounder VAD WHITE - APOLLO XFP95/DISCOVERY
Download Data Sheets
Click the PDF to download each individual data sheet.
