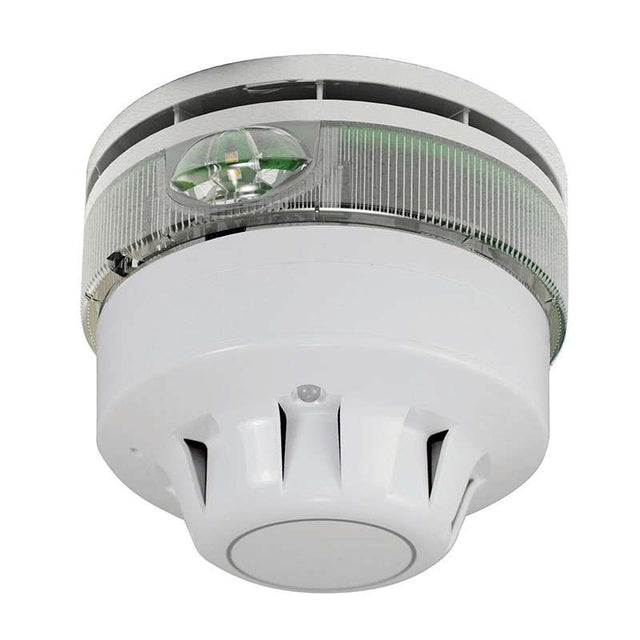

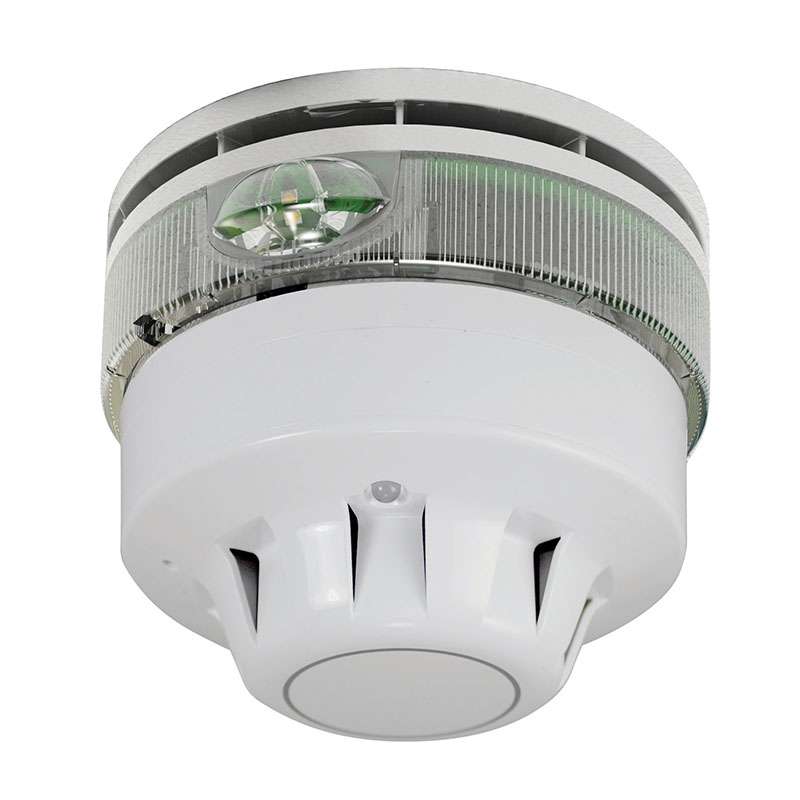

CX addressable base Visual Alarm with a voice sounder WHITE - APOLLO XFP95/DISCOVERY
CX addressable base Visual Alarm with a voice sounder WHITE - APOLLO XFP95/DISCOVERY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Superb sound intelligibility.
- Includes three selectable voice message pairs.

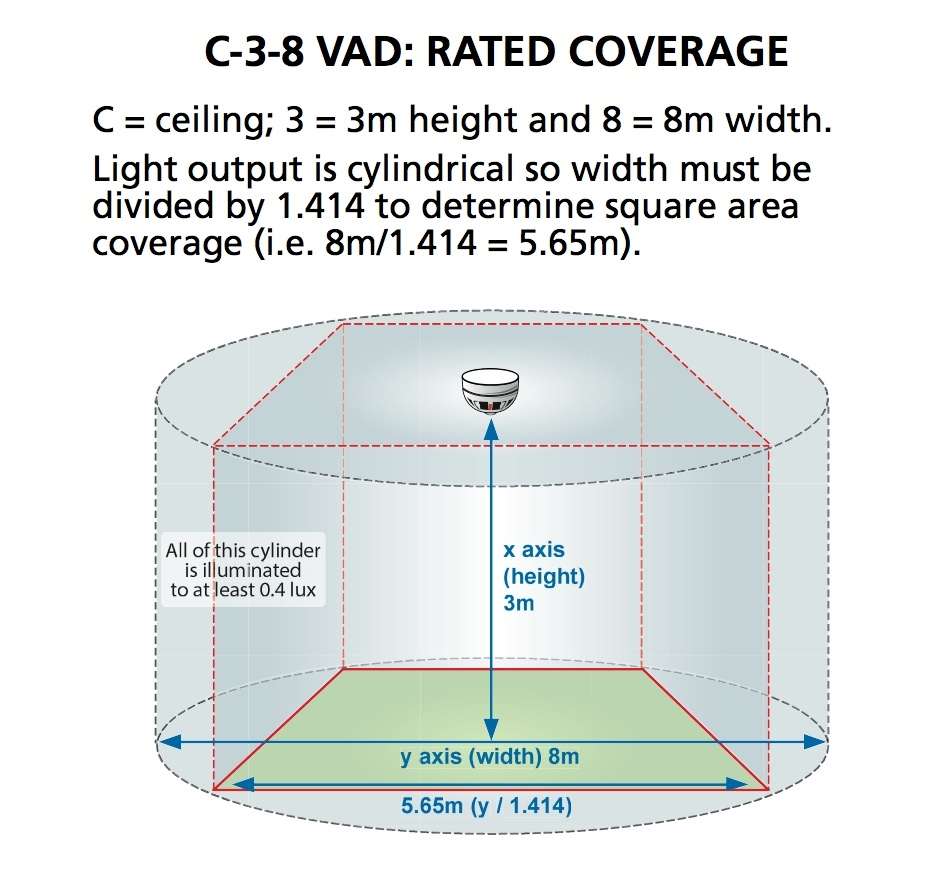

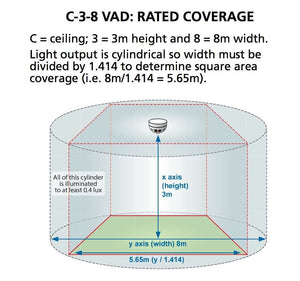

- Provides ‘C-3-8’ light distribution (min 0.4 lux over a 3 x 8m cylindrical area) using the same lenses and electronics as our EN54-23, 3 & 17 certified base sounder VAD.
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 19.5mA alarm current @24V DC (VAD lit, voice sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
- Detector spur wires included.
Technical Specifications
| Protocol/compatibility |
Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
|---|---|
| Application/operation |
Designed to be ceiling mounted – either stand-alone with a red or white cap or as part of a stacked Voice Sounder/VAD/Detector Base combination. |
| VAD category & coverage |
C-3-8. |
| Flash rate & colour |
0.5Hz / White. |
| Supply/operating voltage |
17 to 28V DC (VAD); 21 to 28V DC (Voice Sounder/VAD). |
| Quiescent current |
550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) |
86 dB(A) @ 1 m |
| Alarm current |
19.5mA (VAD lit, Voice Sounder on max); 10mA (Voice Sounder on max, VAD off). |
| Indicators |
Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) |
122mm diameter x 46mm deep (not including optional XP95/Discovery detector and base). |
| IP Rating |
IP21C (Type A). |
| Weight |
200g. |
| Operating conditions/temperature |
-10ºC to +55ºC. Max. 95% RH (Non-condensing). |
| Notes |
Includes the same lenses and electronics as our EN54-23 , 3 & 17 certified Base Sounder VAD. |
